TC8612

8 Channel DIO over T1/E1 Multiplexer

TC8612
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC8612 offers a simple and effective solution for transporting dry contacts over T1/E1, replacing complex T1/E1 channel banks for small scale applications and providing a plug and play solution. It’s economical, easy to install and comes standard with built-in power redundancy and extensive diagnostics.

The TC8612 transports bi-directional dry contacts that typically link up RTUs, Relays, Controllers, Telemetry and other equipment with Digital I/Os.

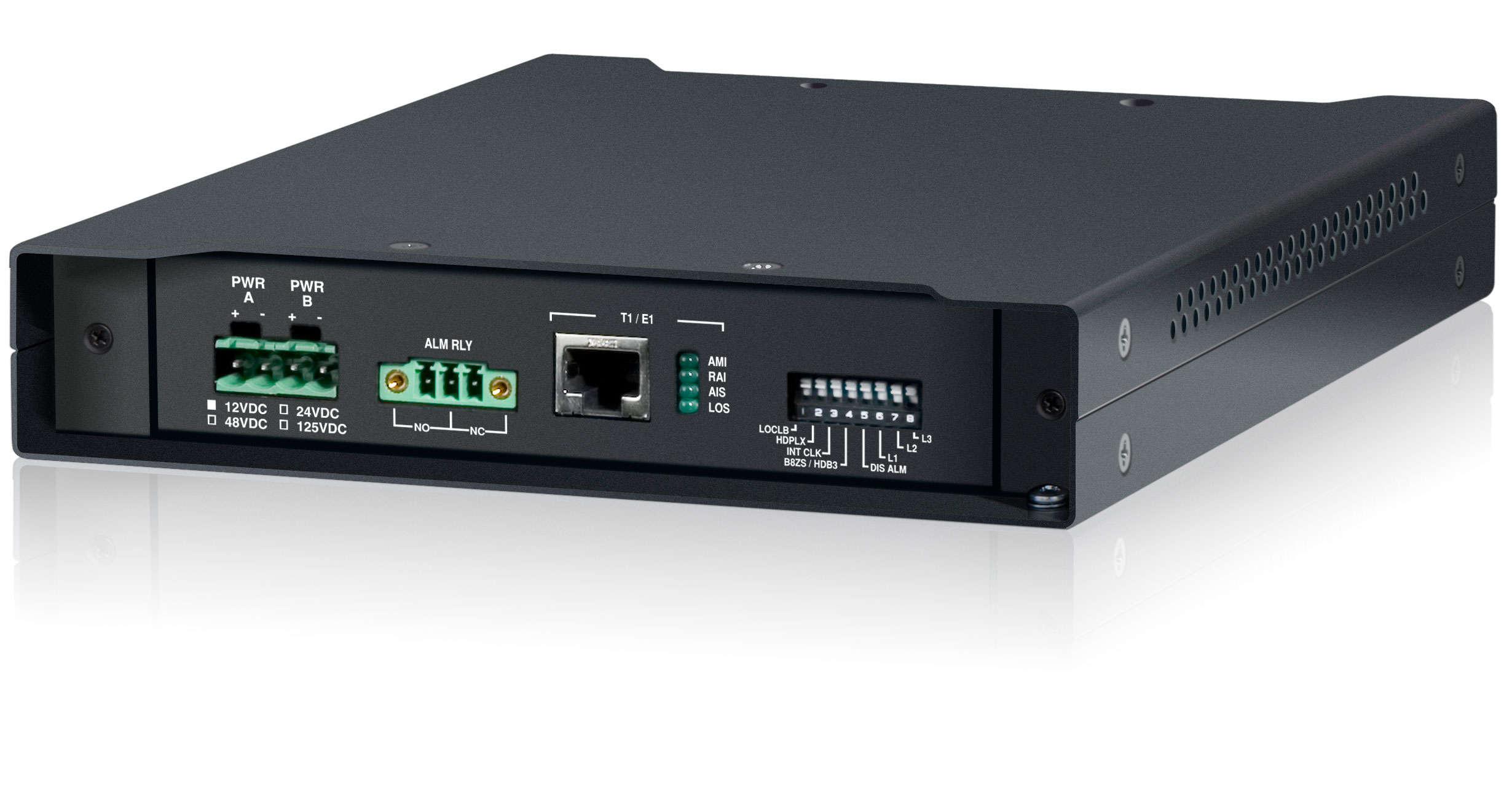

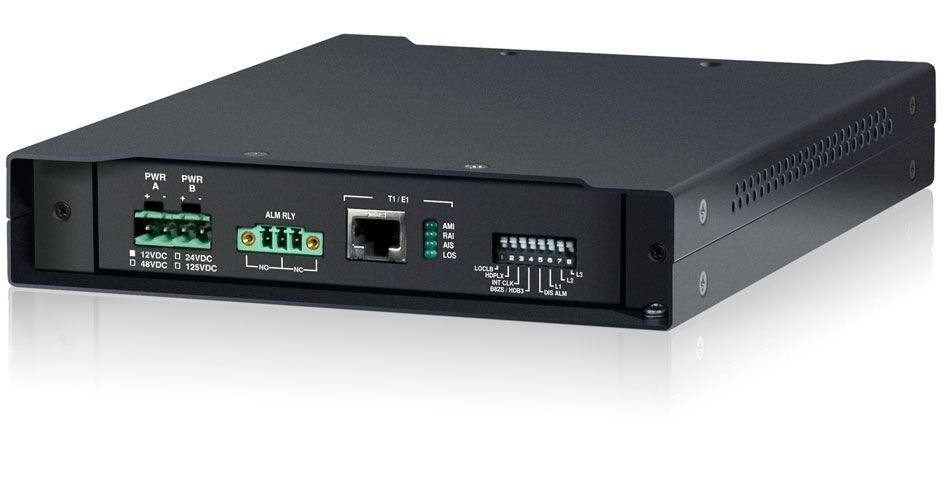

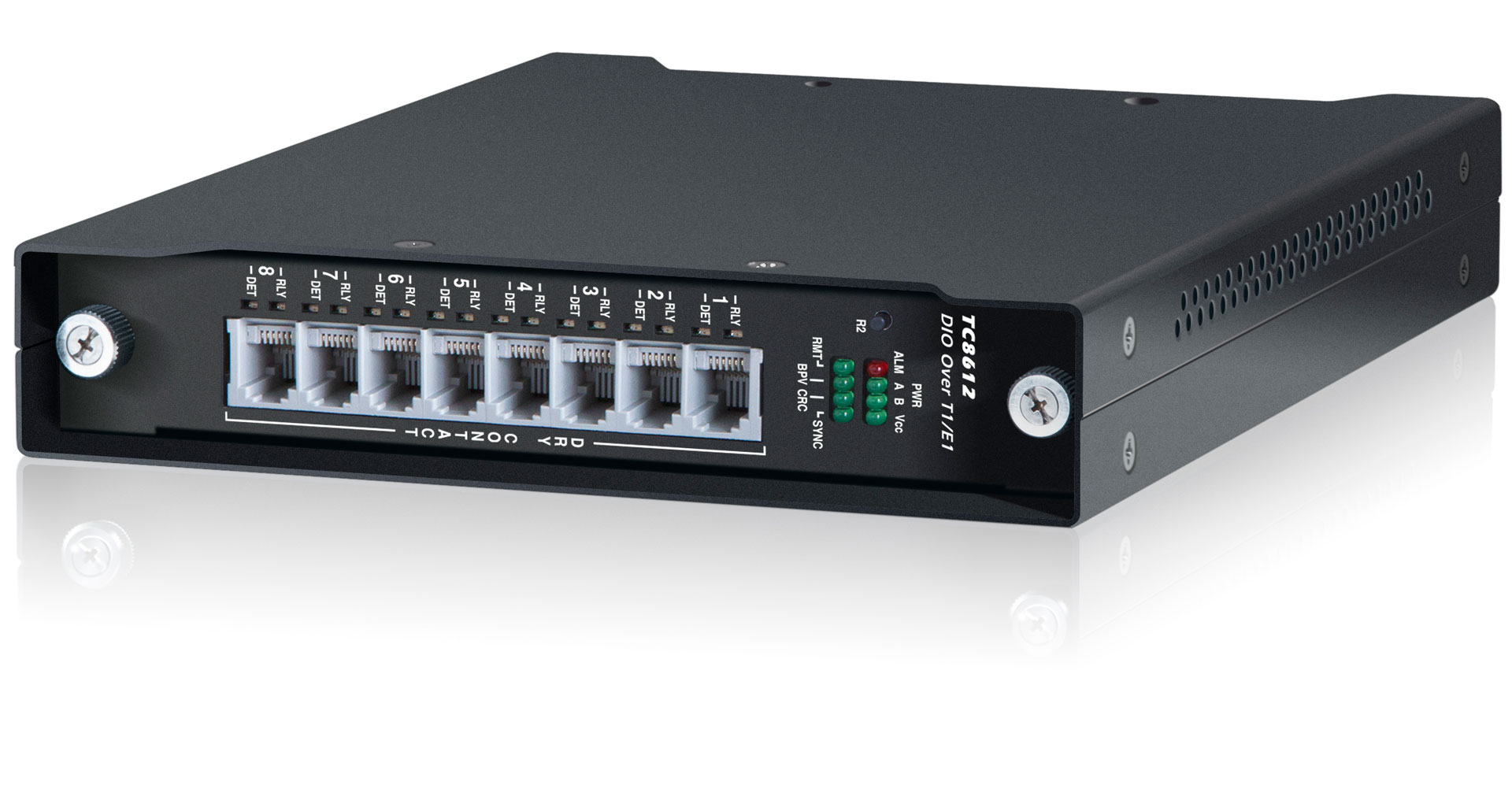

Diagnostics include DIP switches for Local & Remote Loopback and other application configuration switches. Each unit also provides multiple LEDs for Alarm, Power, Vcc, T1/E1 Status, and RLY & DET status LEDs for each channel.

  • 8 Channel Bi-directional Dry Contact
  • Very Low Latency – 1.5ms
  • ESF Framing Support for T1
  • PCM30C Framing Support for E1
  • Isolated Ground for Detectors
  • Supports 120Ω & 75Ω E1
  • Built-in Power Redundancy

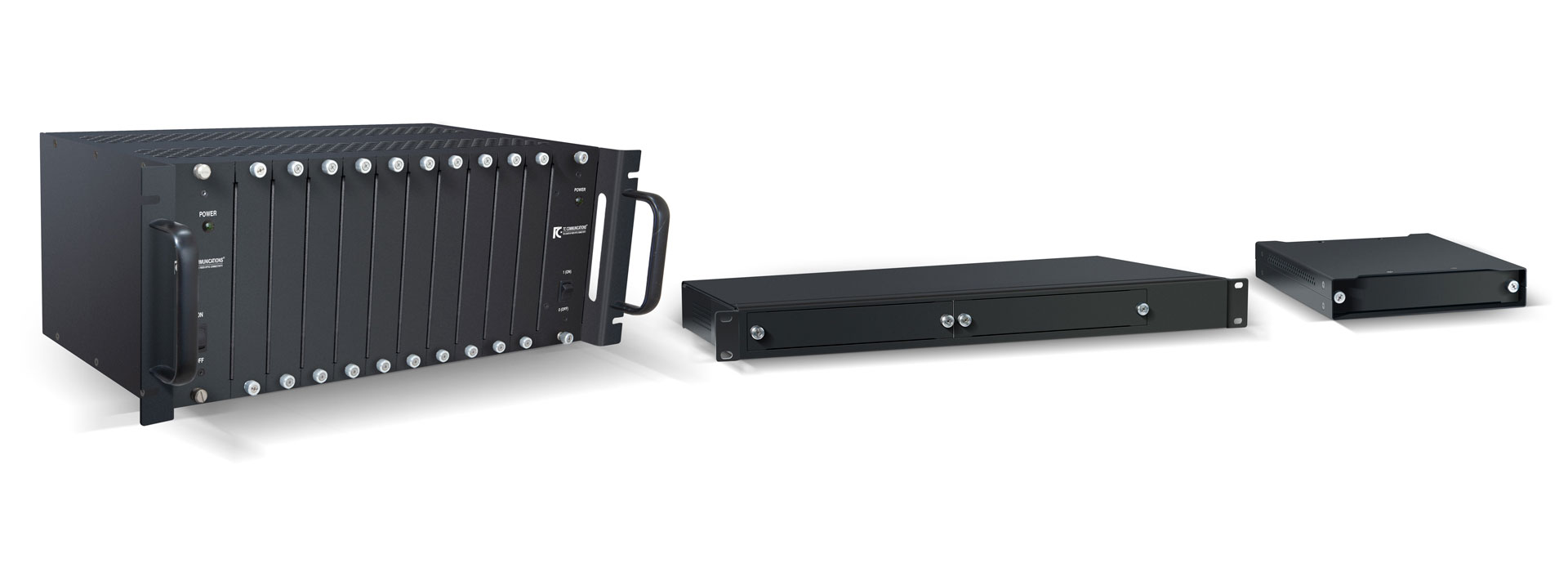

  • Rack Mount or Stand Alone
  • Optional “Dry Contact Status Hold”*

*Contact factory for options

Applications

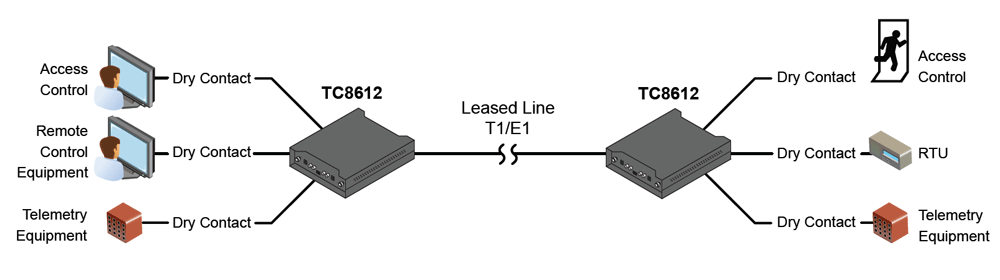

The bi-directional dry contacts typically link up RTUs, Relays, Controllers, Telemetry and other equipment with Digital I/Os.

TC8612 - Dry Contact Over T1/E1 Multiplexer
Click to enlarge

Specifications

Dry Contact
  1. TypeNormally Open
  2. Load Voltage (peak AC)60V
  3. Load Voltage (DC)60V
  4. Continuous Current0.55A
  5. Peak Load Current1.2A
  6. Max on Resistance2.5 Ω
  7. Output Capacitance150pF
  8. Detector Max Input Voltage9V
T1/E1
  1. T1
  2. Line LengthUp to 6000ft
  3. Receiver Sensitivity0dB to -36dB
  4. Line CodeAMI / B8ZS
  5. Latency< 1.5ms
  6. FramingESF Only *Unframed is not supported
  7. E1
  8. Line LengthUp to 2.5km
  9. Receiver Sensitivity0dB to -43dB
  10. Line CodeAMI / HDB3
  11. Latency< 1.5ms
  12. FramingPCM30C Only *Unframed is not supported
Visual Indicators
  1. Channel Status (each ch.)RLY/DET
  2. SystemPWR A, PWR B, Vcc, ALM
  3. T1/E1BPV, LOS, RAI, AIS, CRC, SYNC
System
  1. Bit Error Rate1 in 109 or better
Electrical
  1. T1/E1
  2. ConnectorRJ48F
  3. Dry Contact
  4. ConnectorRJ11F
  5. Interface (standard)Dry Contact

Alarm
  1. Dry ContactNormal Open/Closed
Power
  1. Standard12VDC @300mA
  2. Optional24VDC, -48VDC, 125VDC, or 115/230VAC w/ power cube
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Extreme (optional)-40°C to 80°C
  4. Storage-40°C to 90°C
  5. Humidity95% non-condensing
Physical (Standalone Unit)
  1. Height(3.53cm) 1.40"
  2. Width(18.14cm) 7.20"
  3. Depth(24.89cm) 9.80"
  4. Weight(907g) 2.0lbs
*Contact factory for higher requirements/availability
