TC8616

C37.94-Over-T1/E1 Multiplexer

TC8616
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC8616 is a one- or two-channel C37.94-over-T1/E1 multiplexer. For T1 Channel 1 supports N=1 to 12 and Channel 2 support N=1 to 8. For E1 both channels support N=1 to 12. This allows network managers the flexibility to leverage existing T1/E1 circuits by adding teleprotection relays. It is economical, simple to install and comes standard with built-in power redundancy.

The TC8616 is typically used to link or extend C37.94 Teleprotection relays over existing T1/E1 links.

The TC8616 is available in two configurations:

  • Multimode
  • Single-mode
  • Extends IEEE C37.94 interfaces over T1/E1
  • For T1:
    Channel 1 supports N=1 to 12
    Channel 2 supports N=1 to 8
  • For E1:
    Both channels supports N=1 to 12
  • ESF Framing Support for T1
  • PCM31C Framing Support for E1
  • Diagnostic Feature CSU Loop Up/Down Code Supported
  • Very Low Latency

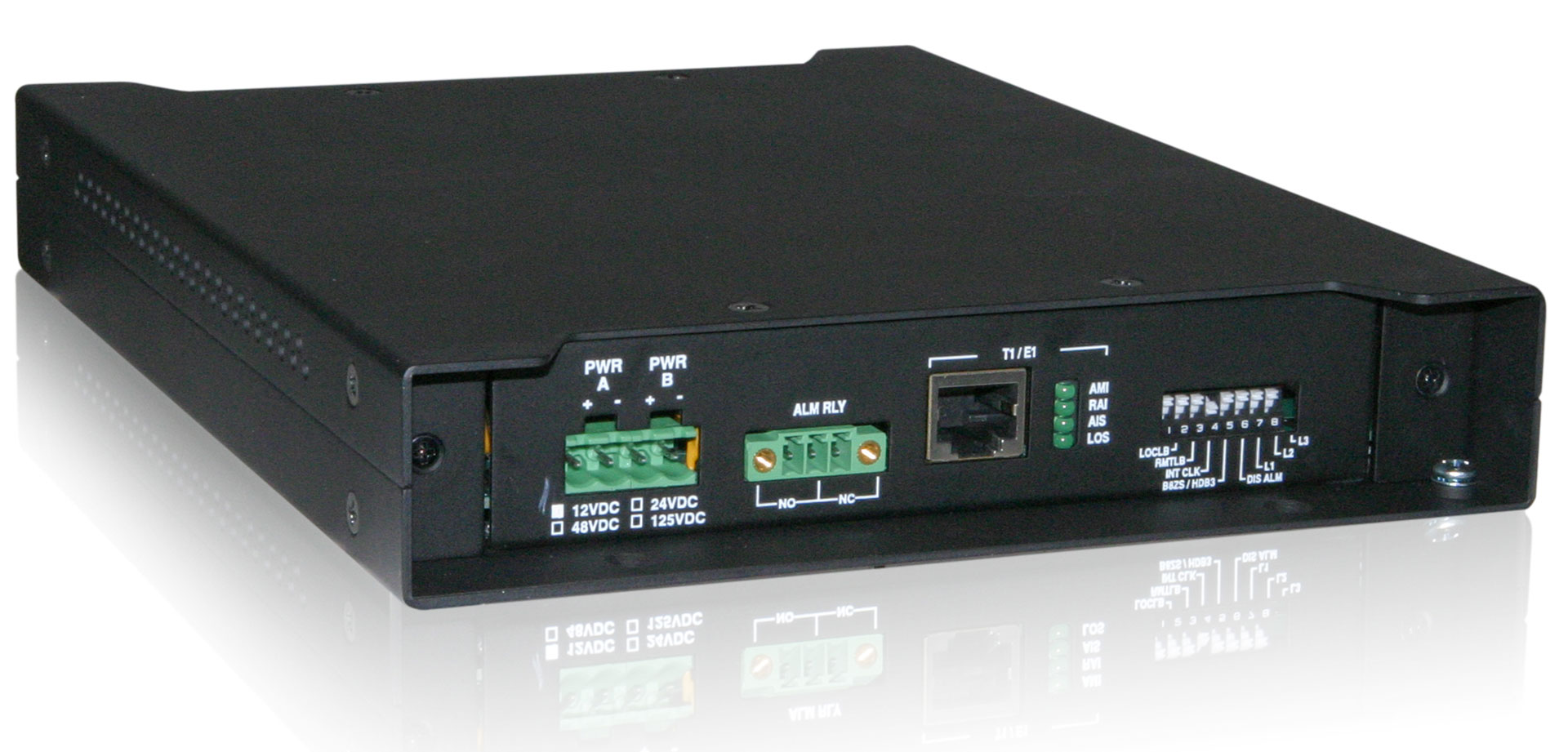

  • Built-in Power Redundancy

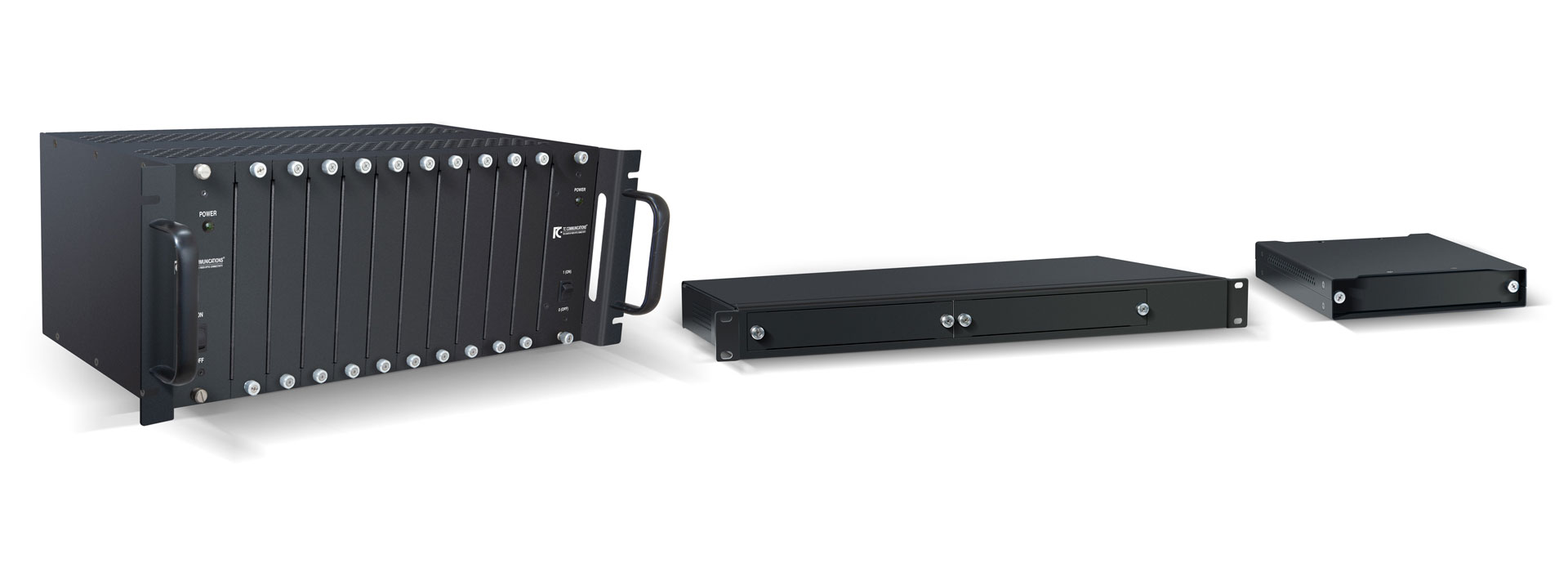

  • Rack Mount or Stand Alone

Applications

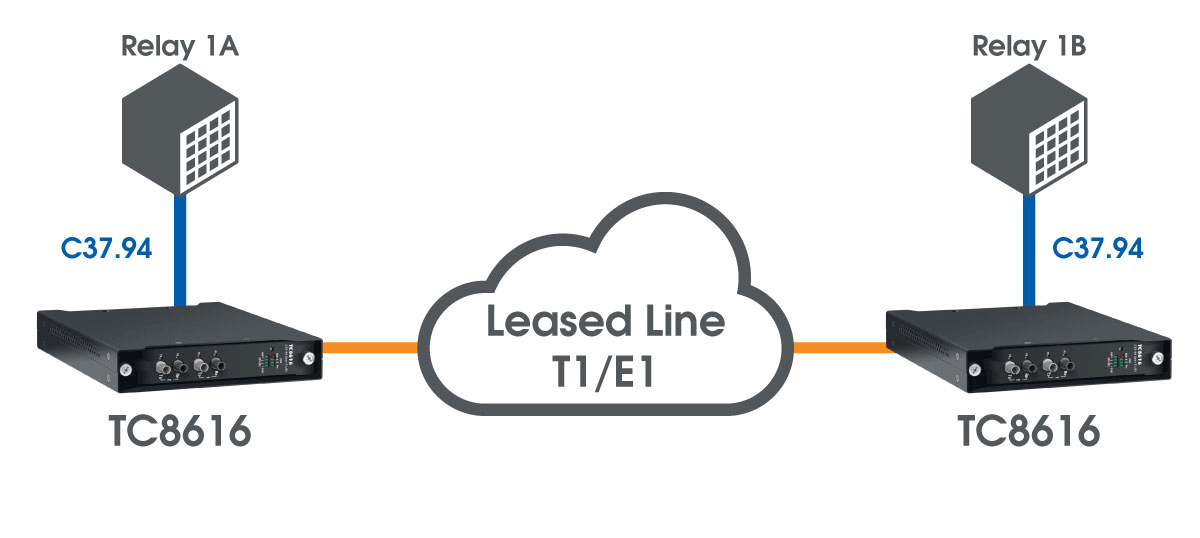

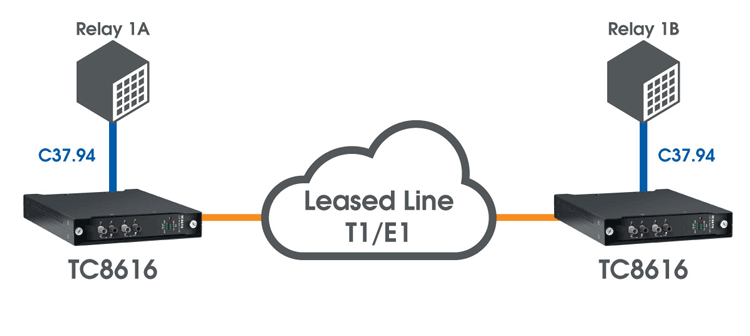

A low cost and immediate solution, the TC8616 is typically used to link or extend C37.94 Teleprotection relays over existing T1/E1 links.

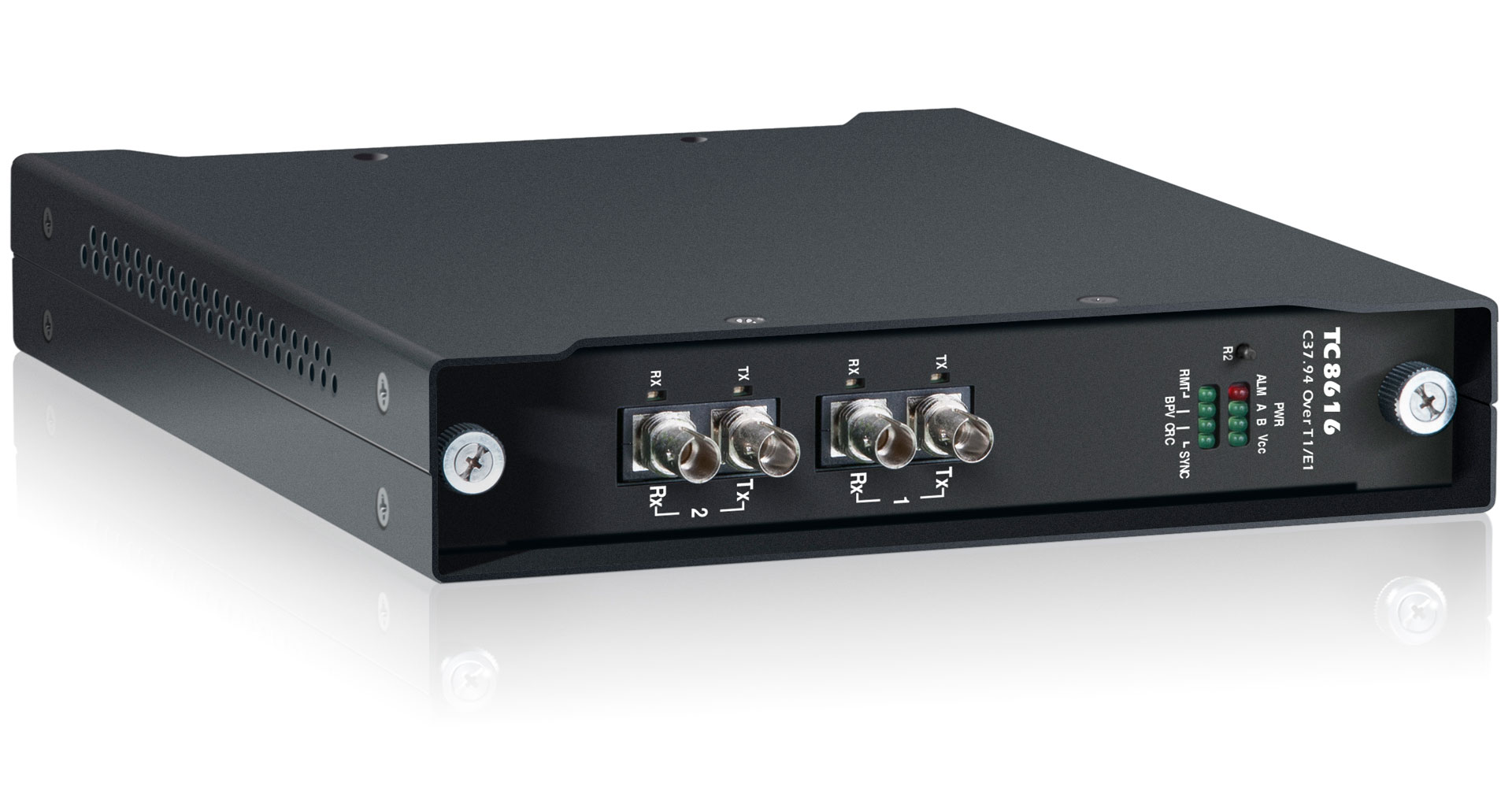

TC8616 - 1-Channel C37.94-Over-T1/E1 Multiplexer
Click to enlarge

Specifications

Connection Capacity
  1. C37.94
  2. For T1
  3.  Channel 1 N=1 to 12
  4.  Channel 2 N=1 to 8
  5. For E1
  6.  Channel 1 N=1 to 12
  7.  Channel 2 N=1 to 12
T1/E1
  1. T1
  2. Receiver Sensitivity0dB to -36dB
  3. Line CodeAMI / B8ZS
  4. FramingESF Only
  5. E1
  6. Receiver Sensitivity0dB to -43dB
  7. Line CodeAMI / HDB3
  8. FramingPCM31C
Optical (C37.94)
  1. TransmitterLED/ELED
  2. ReceiverPIN Diode
  3. Wavelength850nm MM, 1300/1550nm SM
  4. Fiber Optic ConnectorST
  5. Loss Budget* - 850/1300/1550nm
  6. Multimode @ 62.5/125µm15dB
  7. Single Mode @ 9/125µm20dB
Visual Indicators
  1. Channel Status (each ch.)RX, TX
  2. SystemPWR A, PWR B, Vcc, ALM, RMT
  3. T1/E1AMI, RAI, AIS, , CRC, BPV, LOS, SYNC
System
  1. Bit Error Rate1 in 109 or better
Alarm
  1. Dry ContactNormal Open/Closed
Power
  1. Standard12VDC @300mA
  2. Optional24VDC, -48VDC, 125VDC, or 115/230VAC w/ power cube
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Extreme (optional)-40°C to 80°C
  4. Storage-40°C to 90°C
  5. Humidity95% non-condensing
Physical (Standalone Unit)
  1. Height(3.53cm) 1.40"
  2. Width(18.14cm) 7.20"
  3. Depth(24.89cm) 9.80"
  4. Weight(907g) 2.0lbs
*Contact factory for higher requirements/availability
