JumboBank

The finishing piece to our migration portfolio

A quick solution for channel bank obsolescence. For networks looking to quickly replace their channel banks with a similar solution, JumboBank draws from the industry leading JumboSwitch and helps utilities take a more cautious migration approach by updating just the communications component in their network and preserving their DS0 devices and T1 backhaul.

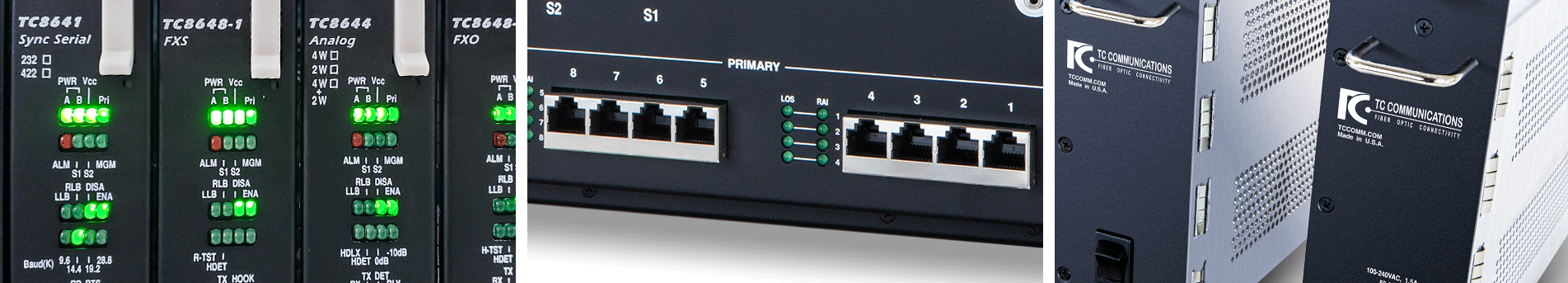

A channel bank for today and tomorrow


Modular
interface cards

  • RS232 Sync/Async
  • RS422 Async
  • 4-wire E&M
  • FXS or FXO
  • C37.94

Up to 8x T1 lines
with redundancy

Two card slots for a Primary and Secondary T1 module


Redundant
power supplies

  • 12 VDC
  • 24 VDC
  • -48 VDC
  • 125 VDC
  • 115 VAC

Cascade units to a third location

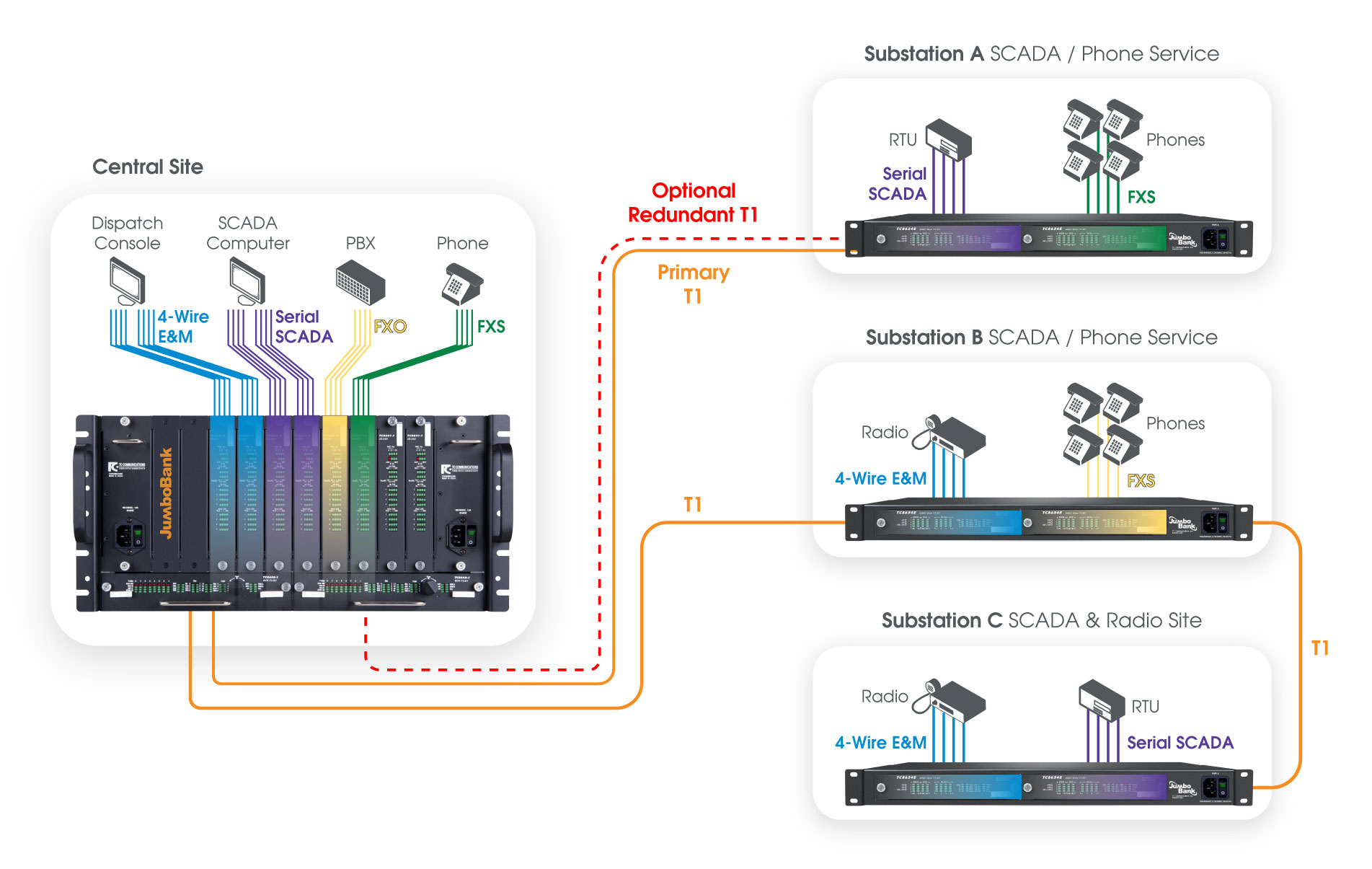

The application shows 4 cards (2x 4W E&M, FXS and Serial) at the central site connecting to 3 remote locations. Substation B and Substation C are connected using a single T1 line from the Central Site to Substation B. The Central Site communicates with Substation C through the cascaded connection at Substation B.

Cascade units to a thrid location

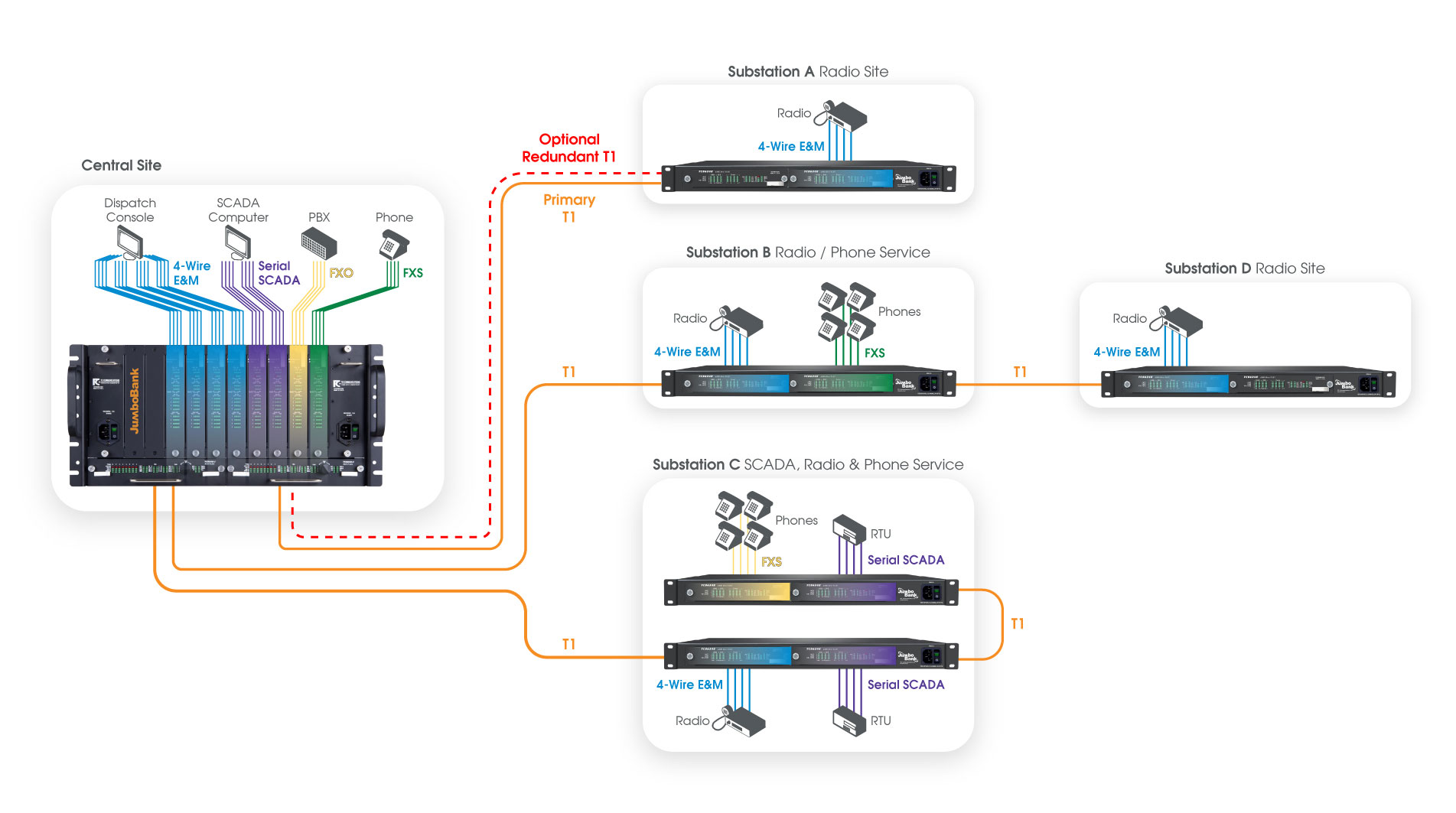

Combining multiple interfaces over single or multiple T1/E1 lines

JumboBank allows you to replace your existing channel bank and transport your interfaces over your existing T1/E1 lines. The 5U rack has room for up to 8 interface cards and either 8 single or 8 redundant T1/E1 in the dedicated T1/E1 card. For lower port density, a 1U rack option allowing up to 2 interface cards may be used.

Combined interfaces over T1

An alternative configuration allows the interfaces to be converted directly to T1 to be transported to equipment with T1 interface using the JumboBank gateway functionality.

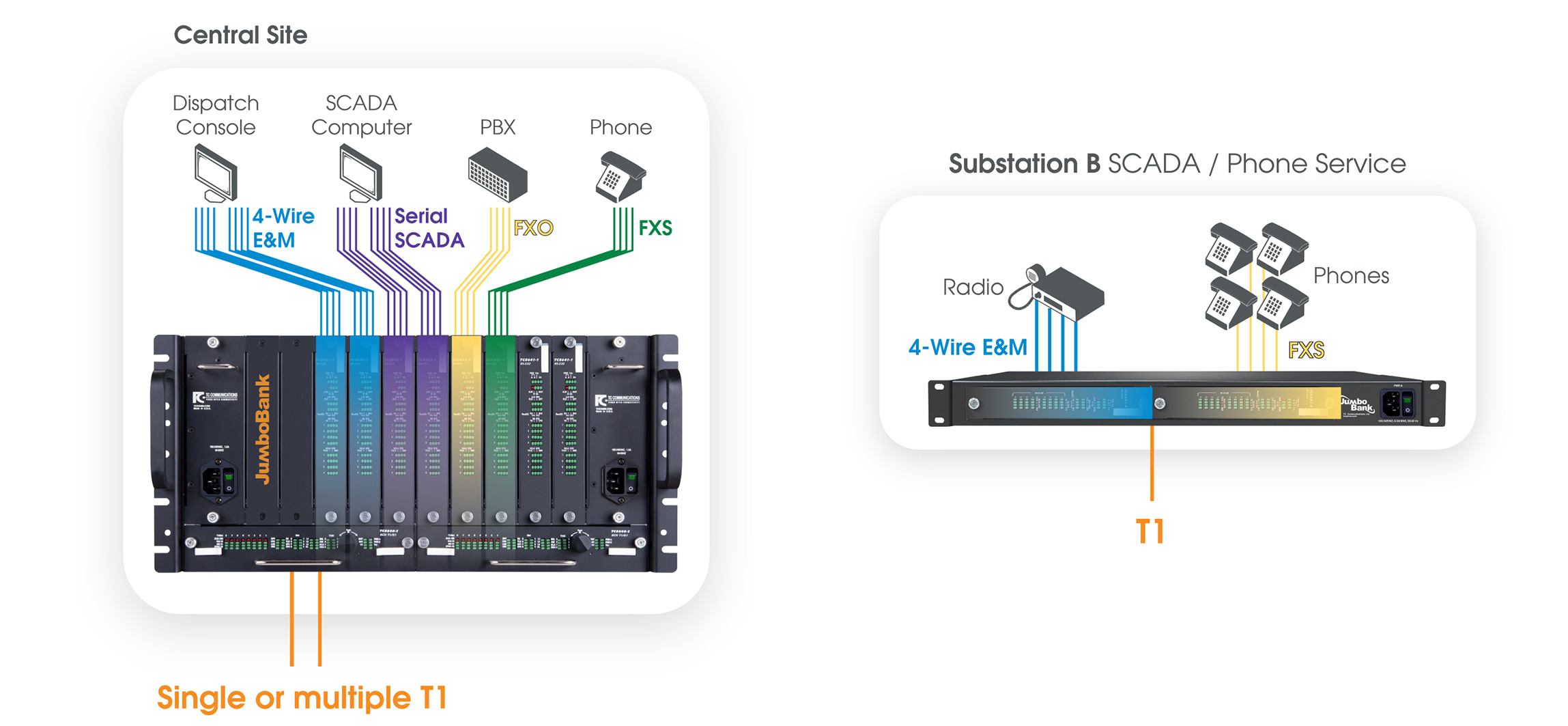

Combing multiple interfaces over single T1 or multiple T1 lines

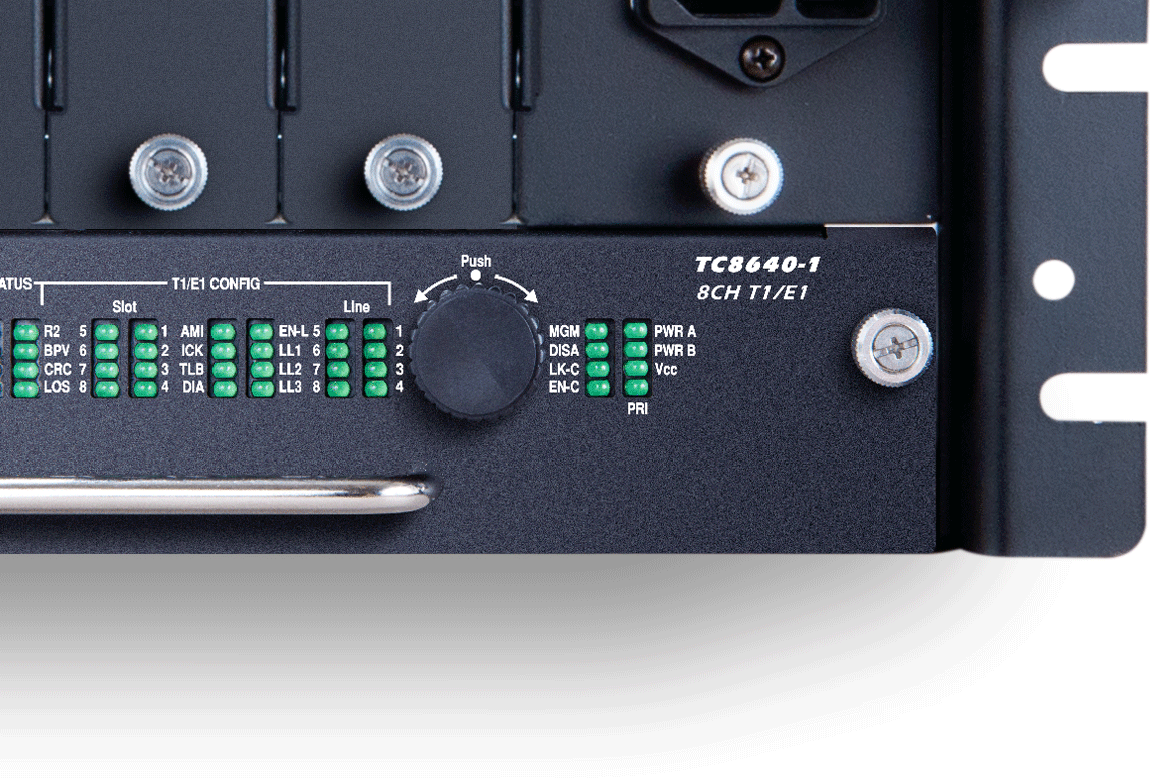

JumboBank configuration rotary switch control

Configured using a
rotary switch

Combining cards, assigning T1 lines, setting up interface cards, all configurations are done with this rotary switch.

JumboBank was designed to have no software for a more stable and reliable product lifespan. It also helps that users don’t have to hassle with firmware updates or worry about cybersecurity issues.

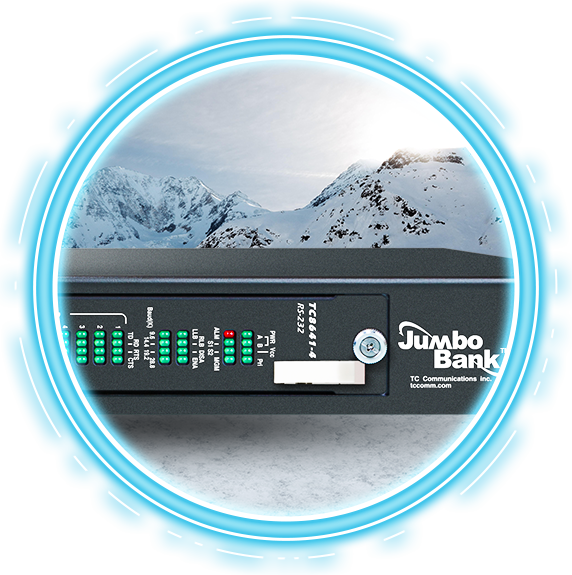

Portal to your remote device

Just like its low-density cousin the Mini Channel Bank, the JumboBank is also equipped with an R2 button.

The Reset*Reset (R2) button quickly identifies T1/E1 disruptions on local or remote units. Corresponding alarm and remote LEDs communicate any signal disruptions between systems. Also, when errors are resolved there is no need to drive to a remote site to obtain or reset the status of such device when it can be done from the local unit.

JumboBank R2 button

Gallery

JumboBank

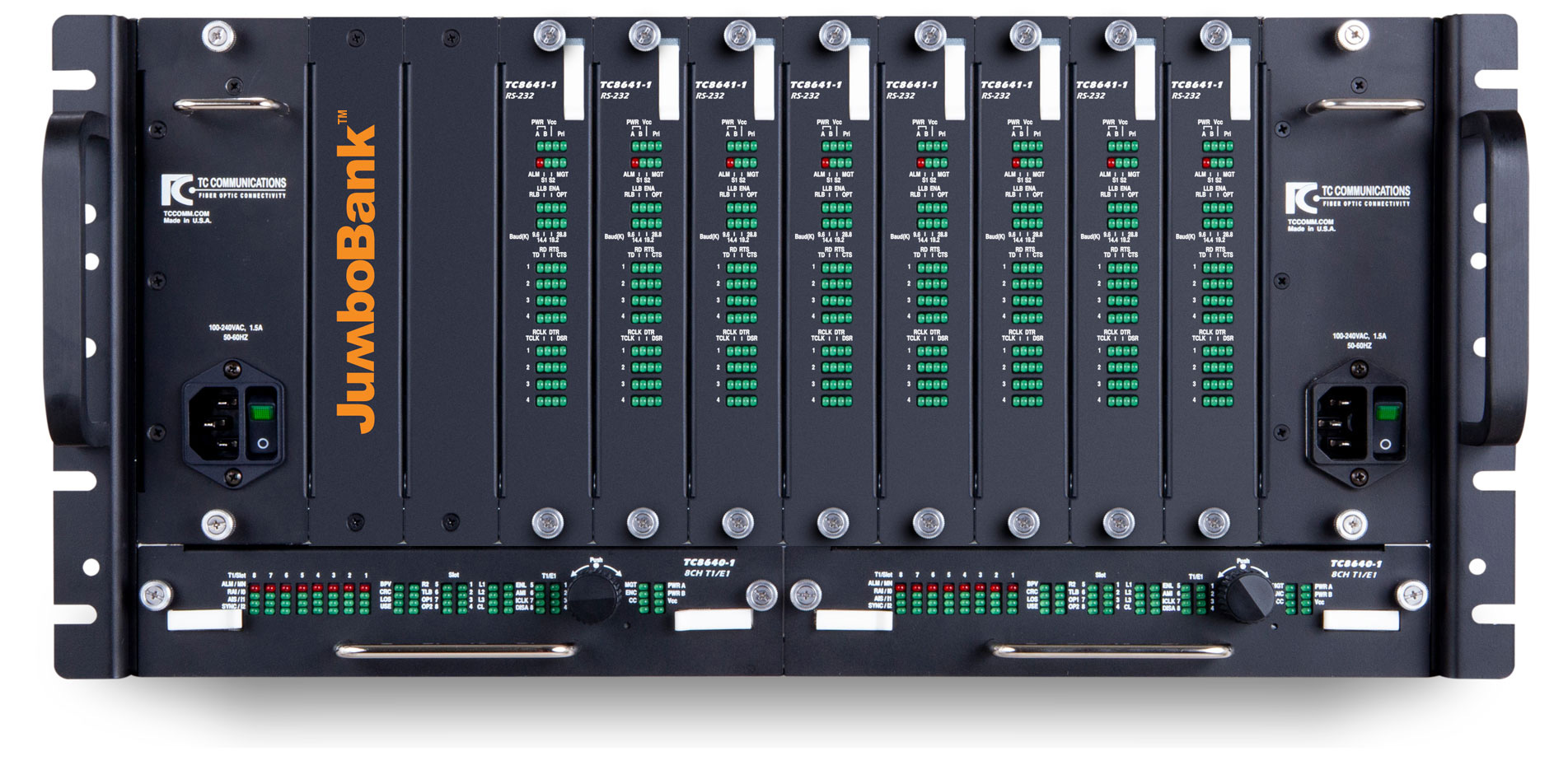

5U Chassis Front View

JumboBank 5U front view

JumboBank

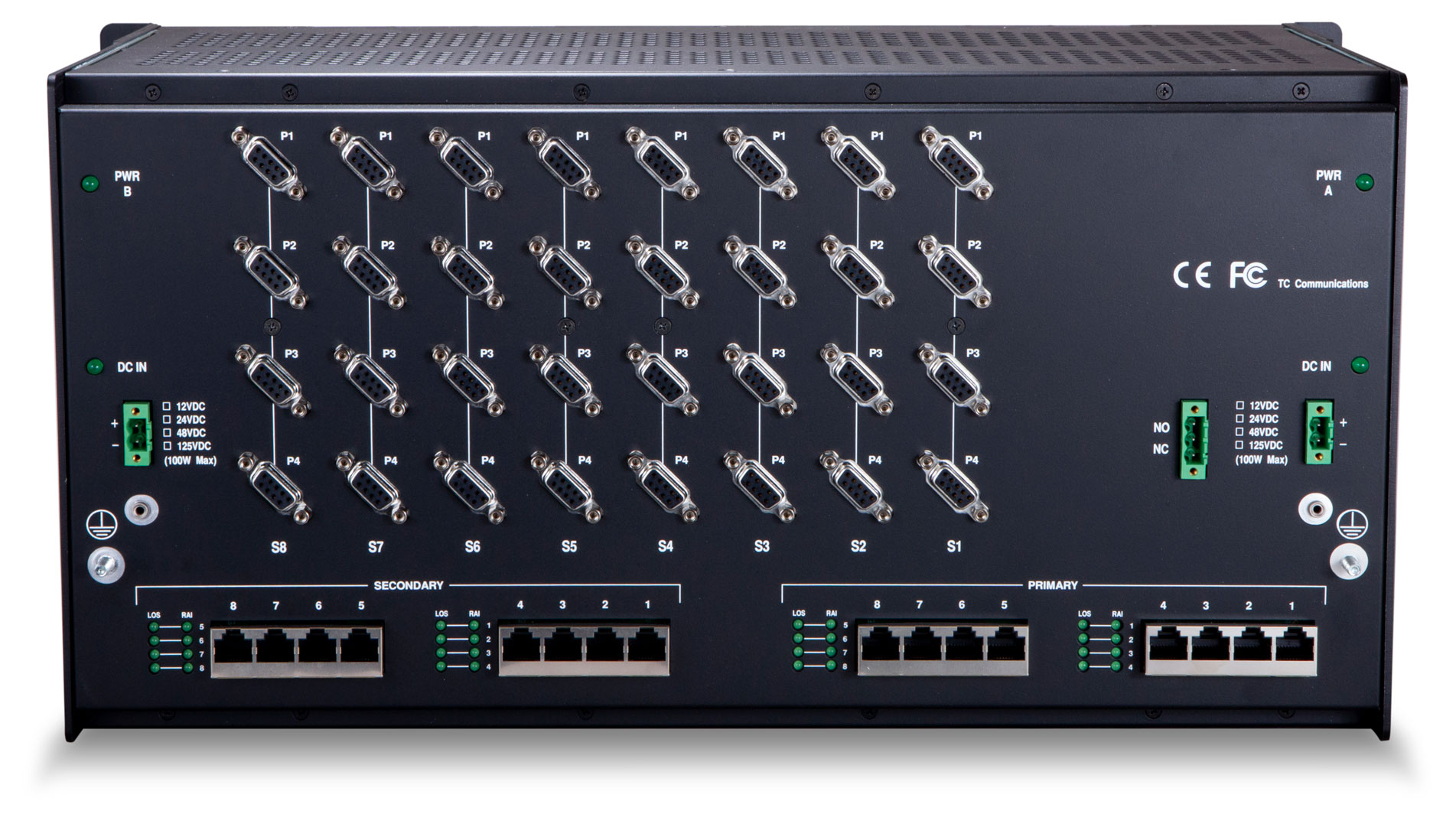

5U Chassis Rear View

JumboBank 5U rear view

JumboBank

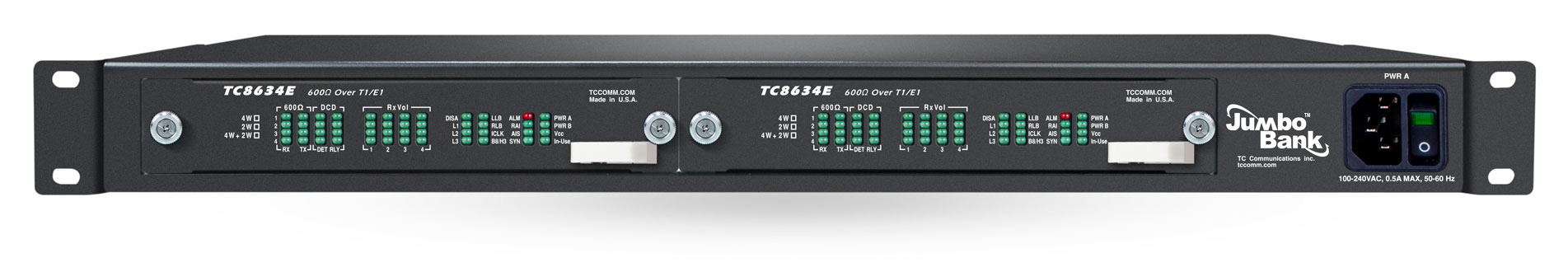

1U Chassis Front View

JumboBank 1U front view

JumboBank

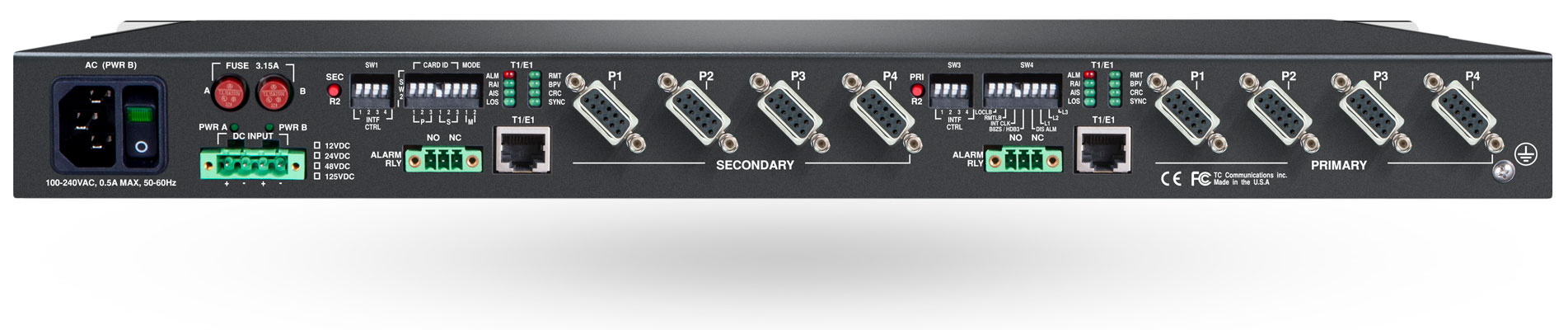

1U Chassis Rear View
