TC8630-1

1U Chassis T1/E1 Redundancy Card

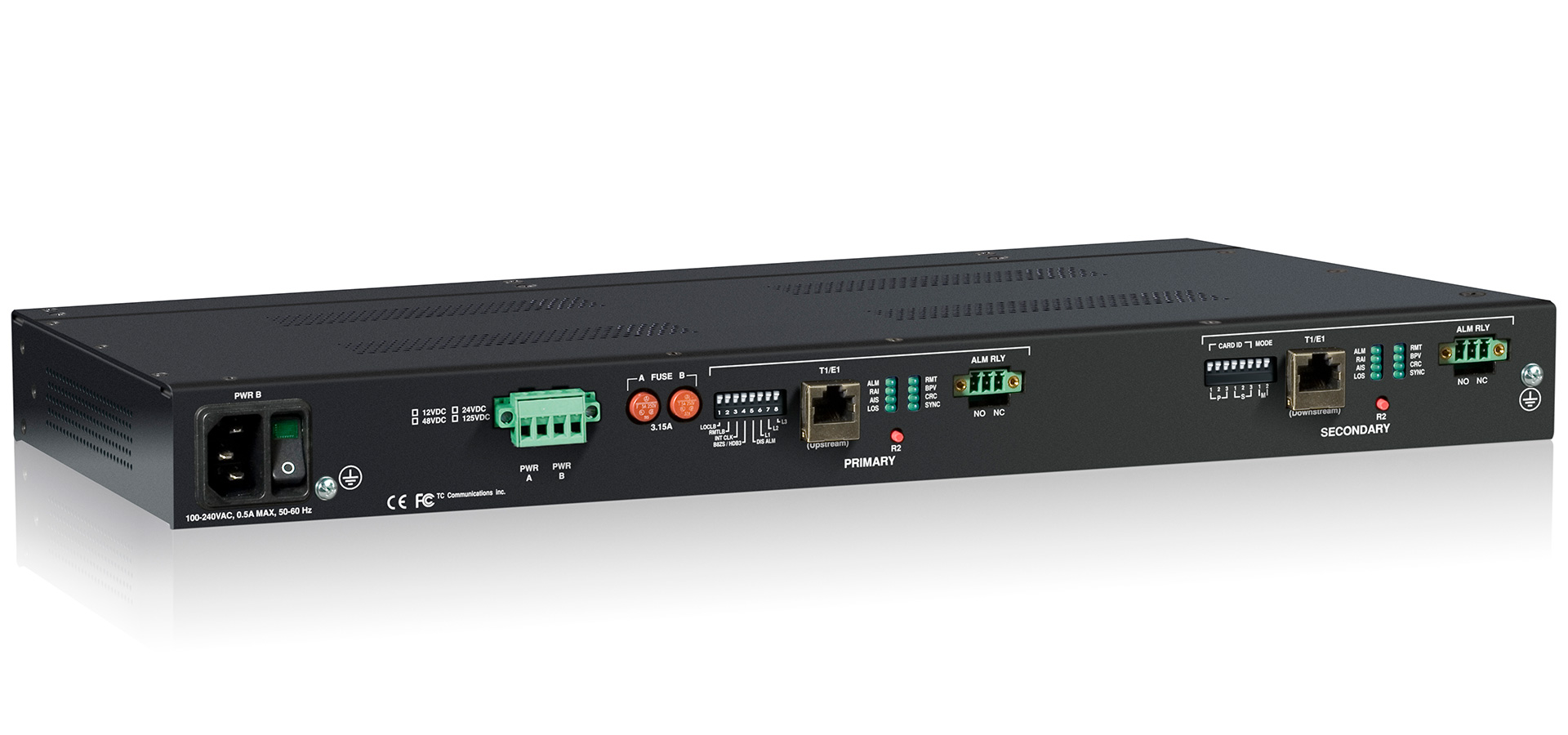

TC8630-1
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC8630-1 is a T1/E1 Redundancy Card that allows network managers the flexibility of leveraging their existing T1/E1 circuits by adding backup T1/E1 link as needed. It is economical, simple to install and comes standard with built-in power redundancy. The built-in Sync mechanism verifies both device and T1/E1 link operation. No other test equipment is required for link and device verification.

  • ESF Framing Support for T1
  • PCM31C Framing Support for E1
  • Built-in Power Redundancy
  • 1U Rack Mount
  • Diagnostic DIP Switches for T1/E1 Loopback Tests
  • 12VDC, 24VDC, -48VDC, 125VDC
  • LEDs for T1/E1 signal status

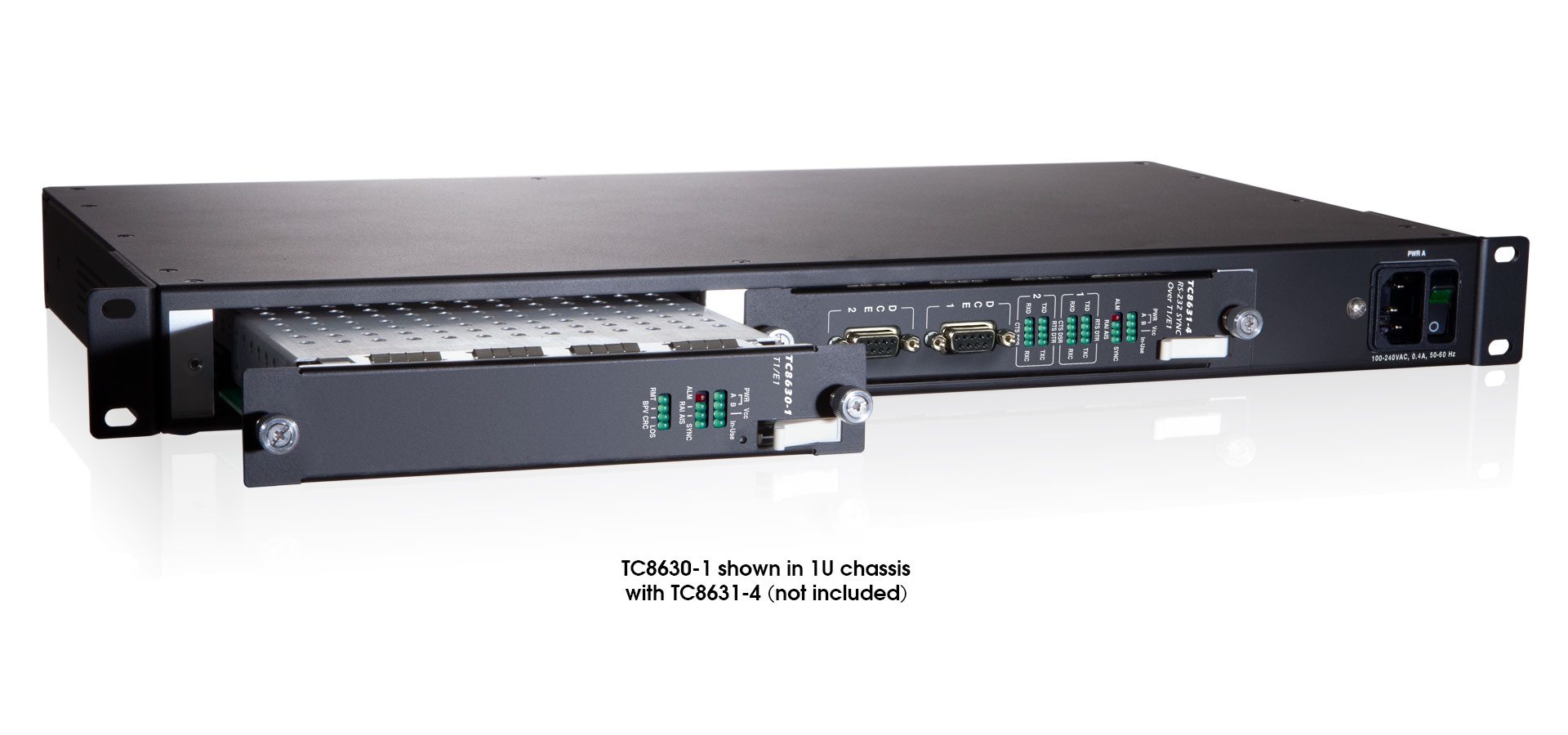

TC8630-1 is a modular card. It can be plugged into the following chassis:

  • 1U: TC8630-1 can add T1/E1 redundancy support for other interface card.

The TC8630-1 is used for adding T1/E1 redundancy to any TC863x series interface cards.

Applications

Adding T1/E1 redundancy to any TC863x series interface cards.

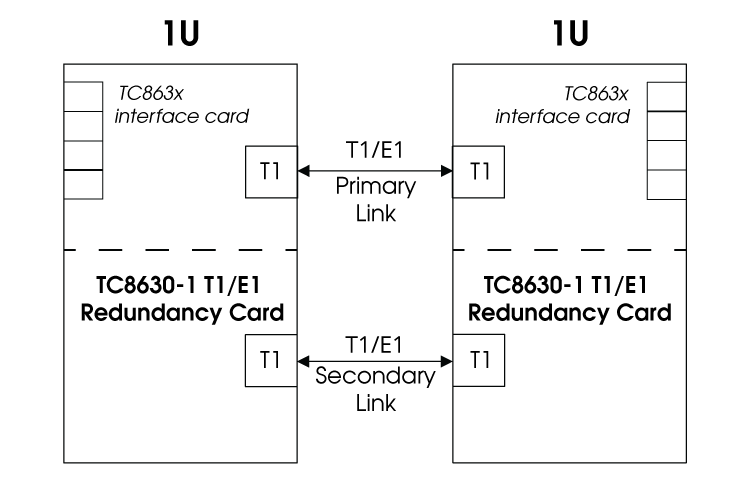

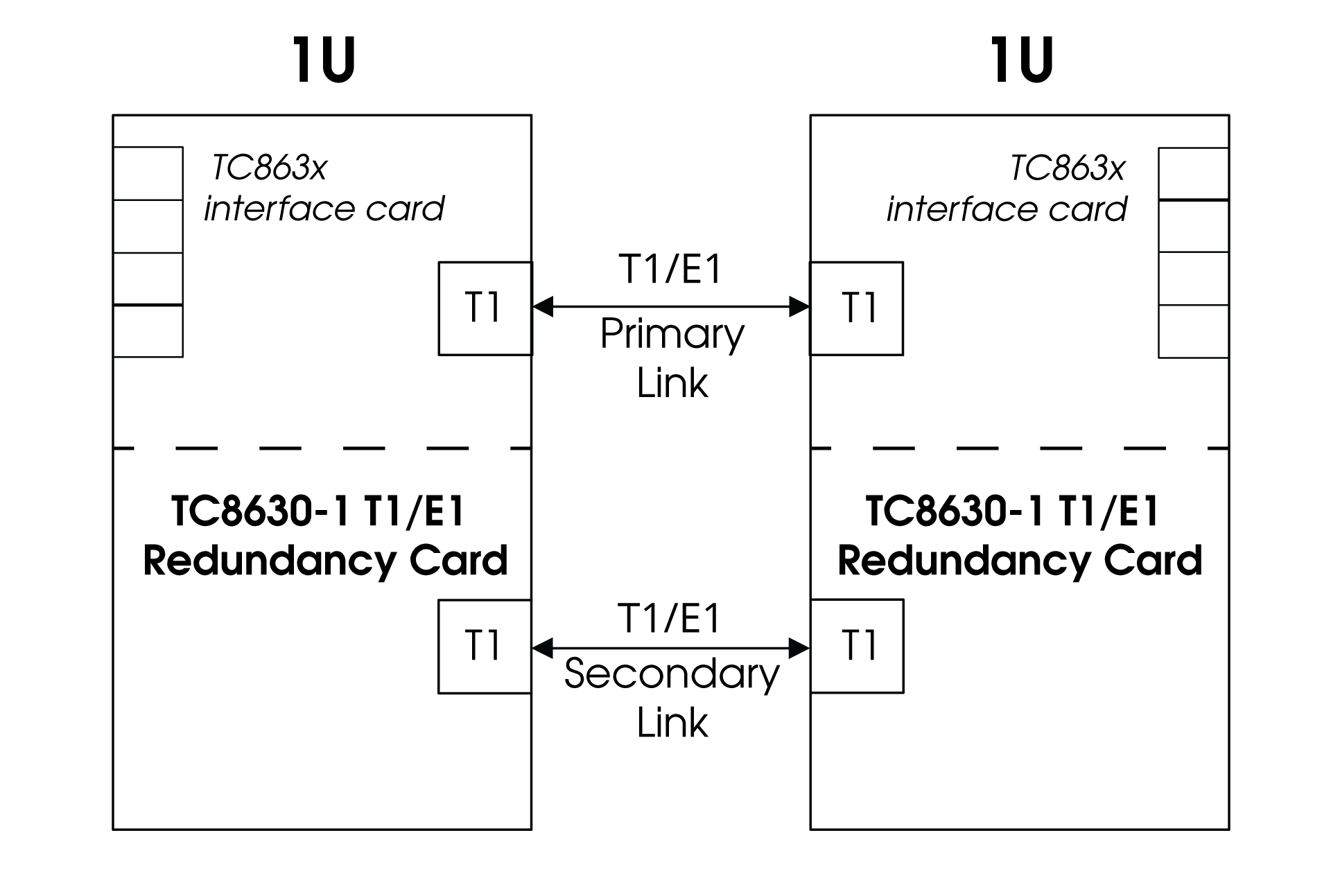

TC8630-1 - T1/E1 Redundancy Card for JumboBank 1U chassis
Click to enlarge

Specifications

T1/E1
  1. T1
  2. ConnectorRJ-48F
  3. Receiver Sensitivity0dB to -36dB
  4. Line CodeAMI / B8ZS
  5. FramingESF (Only)
  6. E1
  7. ConnectorRJ-48F
  8. Receiver Sensitivity0dB to -43dB
  9. Line CodeAMI / HDB3
  10. FramingPCM31C
Electrical
  1. Dry Contact Interface
  2. Normal openStandard
  3. Normal closeOptional
  4. Load Voltage (peak AC)60V
  5. Load Voltage (DC)60V
  6. Continuous load current0.55A
  7. Peak load current1.2A
  8. Max On Resistance2.5 Ω
  9. Output Capacitance150pF
Visual Indicators
  1. SystemPWR A, PWR B, Vcc, ALM, RMT
  2. T1/E1AMI, RAI, AIS, CRC, BPV, LOS, SYNC, In-Use
System
  1. Bit Error Rate1 in 109 or better

Alarm
  1. Dry ContactNormal Open/Closed
Power
  1. Standard12VDC @500mA MAX
  2. Optional24VDC, -48VDC, 125VDC, or 100-240VAC
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Extreme (optional)-40°C to 80°C
  4. Storage-40°C to 90°C
  5. Humidity95% non-condensing
Physical (1U Rackmount)
  1. Height(4.3cm) 1.7"
  2. Width(48.3cm) 19"
  3. Depth(26.7cm) 10.5"
