TC8631-4

2 or 4 Channel RS-232 Sync-over-T1/E1 Multiplexer

TC8631-4
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC8631-4 is a 2 or 4 Channel RS-232 Sync-over-T1/E1 central directional multiplexer. Using two DB9 female ports (Port 1 & Port 2) for RS-232 Sync signals and each channel supports up to 28.8 Kbps. It features three different types of built-in loopbacks: local, remote, and T1/E1 loopback, and can assist in isolating whether an issue lies on your serial line or your T1/E1 line. CSU Loop Code Up/Down is also supported.

  • 2 CH or 4 CH RS-232 Sync with Full Handshakes (CTS/RTS, DTR/DSR)
  • Built-in Internal Clocks (TXC/RXC)
  • RS-232 Status LEDs for 8 Signals: TXD/RXD, CTS/RTS, DTR/DSR, TXC/RXC
  • Seven LEDs for T1/E1 Status BPV, LOS, SYNC, AMI, RAI, AIS, CRC
  • ESF Framing Support for T1
  • PCM31C Framing Support for E1
  • Very Low Latency
  • Optional Power Redundancy
  • 1U or 4U Rack Mount
  • 12VDC, 24VDC, -48VDC, 125VDC, 100-240VAC
  • “R2” Push Button for Troubleshooting Local Or Remote Units

Using two DB9 female ports (Port 1 & Port 2) for RS-232 Sync signals and each channel supports up to 28.8 Kbps.

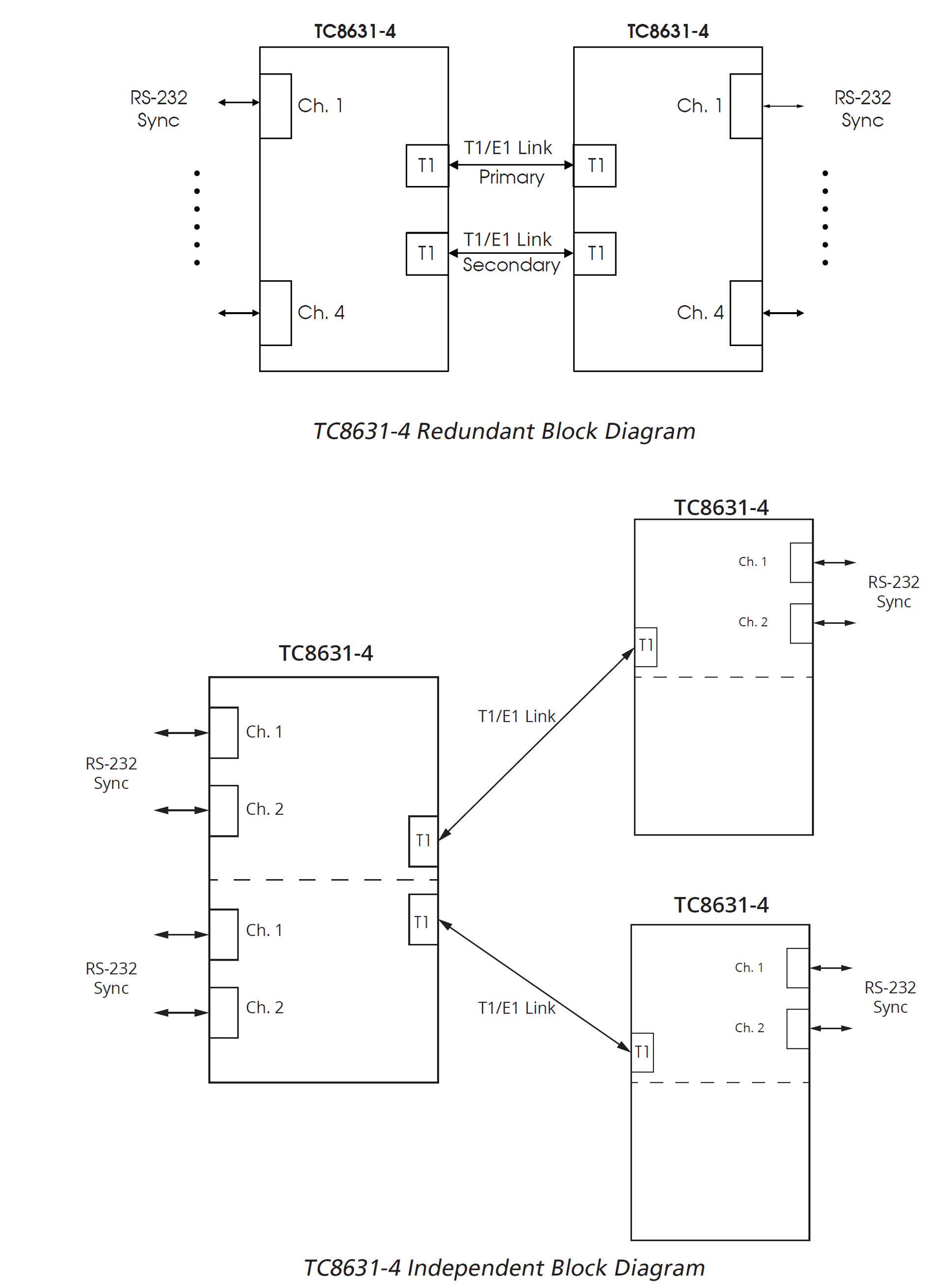

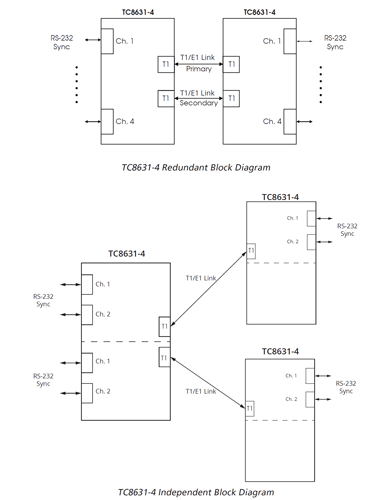

With two TC8631-4 cards in one 1U chassis, there are two T1/E1 connections available for following configurations:

  • Two 2 channel serial RS-232 multiplexer, each having their own T1/E1 connection
  • One 4 channel serial RS-232 multiplexer, T1/E1 primary link and T1/E1 secondary link

The TC8631-4 is ideal for applications where RS-232 Sync serial data needs to be extended over a T1/E1 link.

Applications

The TC8631-4 2-Channel RS-232 Sync-over- T1/E1 multiplexer provides an inexpensive method for connecting terminals such as relays, and status collecting devices. It is also used in harsh environments where EMI/ RFI interference, ground loops and lightning conditions may exist.

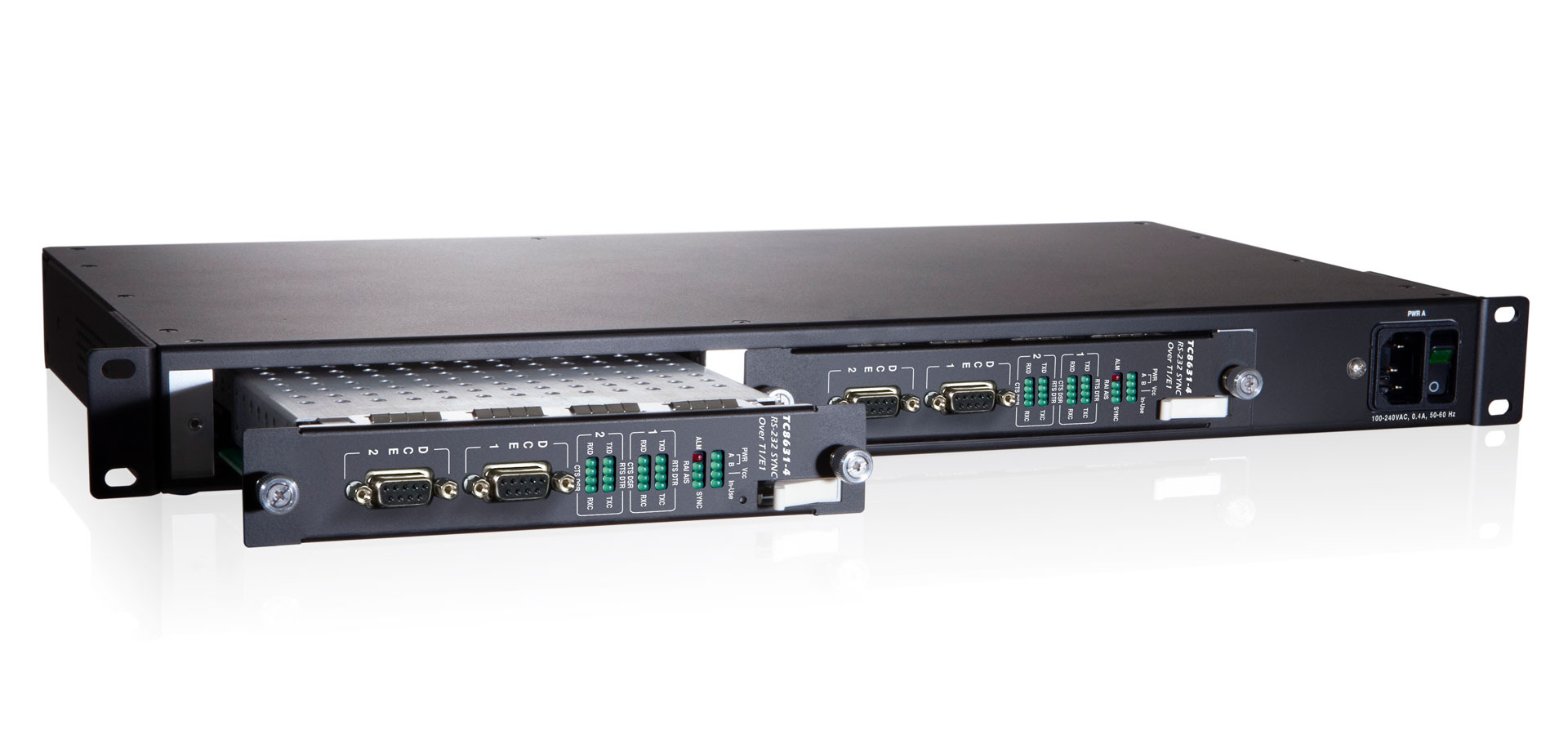

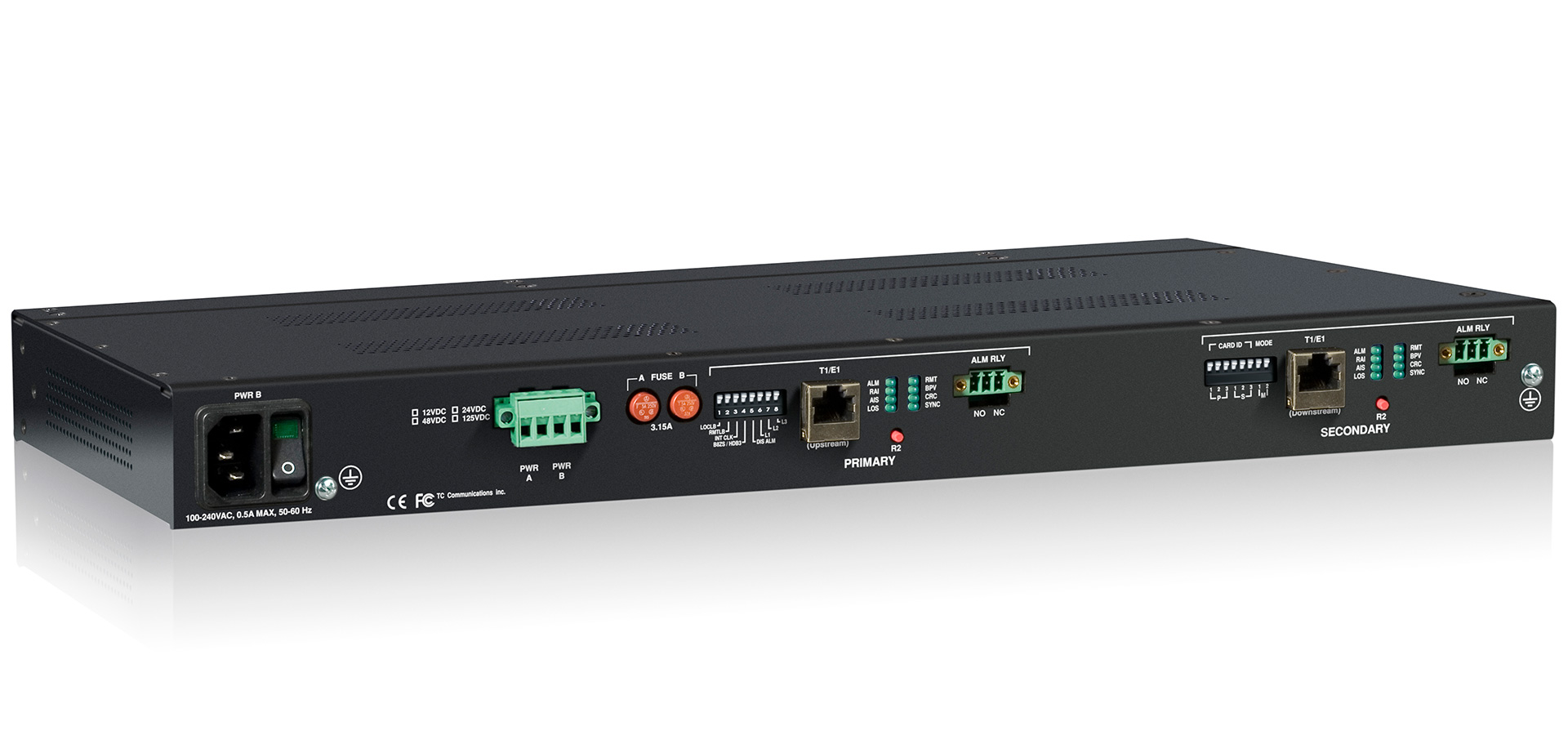

TC8631-4 - RS-232 Sync-over-T1/E1 Multiplexer
Click to enlarge

Specifications

Serial
  1. StandardRS-232s
  2. Ports2
  3. Data Rate9.6 Kbps, 14.4 Kbps, 19.2 Kbps, 28.8 Kbps
T1/E1
  1. T1
  2. Receiver sensitivity0dB to -36dB
  3. Line CodeAMI / B8ZS
  4. FramingESF
  5. E1
  6. Receiver sensitivity0dB to -43dB
  7. Line CodeAMI / HDB3
  8. FramingPCM31C
Visual Indicators
  1. Channel Status (each ch.)TXC, RXC, TXD, RXD, CTS, RTS, DTR, DSR
  2. SystemPWR A, PWR B, Vcc, ALM, RMT
  3. T1/E1BPV, LOS, SYNC, AMI, RAI, AIS, CRC
Electrical
  1. ConnectorDB9F
  2. InterfaceRS-232
System
  1. Bit Error Rate1 in 109 or Better
Alarm
  1. Dry ContactNormal Open/Closed
Power
  1. Standard12VDC @ 500mA
  2. Optional24VDC, -48VDC, 125VDC, or 100/240VAC (with power cube)
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Extreme (optional)-40°C to 80°C
  4. Storage-40°C to 90°C
  5. Humidity95% non-condensing
Physical
  1. Single Card
  2. Height(3.53 cm) 1.40"
  3. Width(18.14 cm) 7.20"
  4. Depth(24.89 cm) 9.80"
  5. Weight(907 gm) 2.0 lbs
  1. 1U Chassis
  2. Height(4.3 cm) 1.70"
  3. Width(48.3 cm) 19.0"
  4. Depth(26.7 cm) 10.5"
* Contact factory for higher requirements
