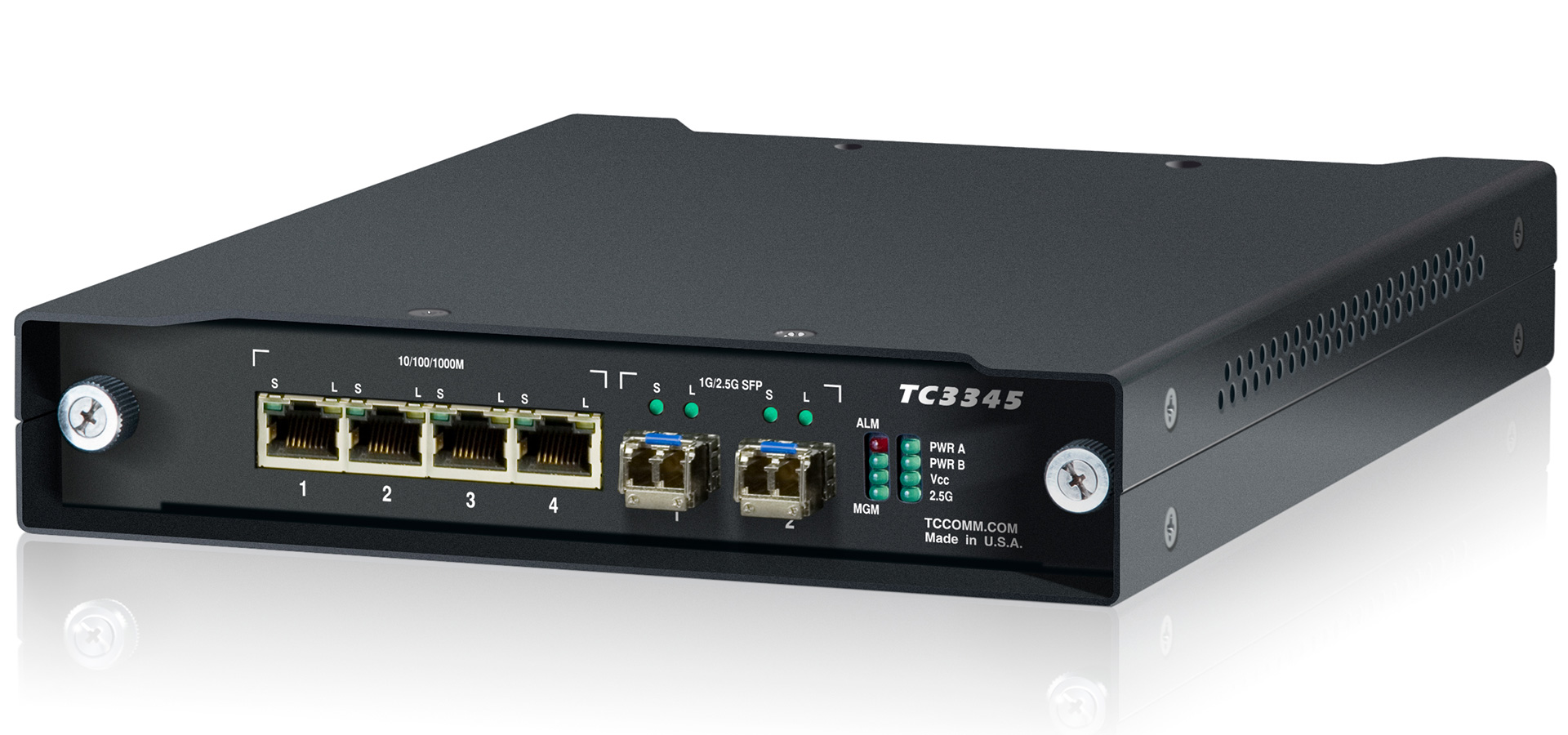

TC3345
Managed Industrial 5+2 Gigabit Ethernet Switch
Features
Ideal for mission critical networks, the TC3345 Managed Gigabit Ethernet Switch provides maximum reliability through standard Ethernet redundancy protocols. It offers 2x Gigabit SFP ports (with 2.5G capability) for connecting up and down nodes to form a ring or bus topology.
- 2 ports GbE SFP (optional 2.5G)
- 5 ports GbE RJ45
- Ethernet Redundancy
- Built-in temperature sensor
- Built-in optic measurements
- Supports single mode, multimode & bi-direction optics
- IEC 61850-3, IEEE 1613 & NEMA TS-2
- Extreme operating temp (-40°C to +80°C) option
Advanced networking features include:
- Complies with Carrier Ethernet 2.0
- VLAN, QoS and Rate Control
- Diagnostics include Temperature, SFP Monitoring, and RMON
- Management via Web, SNMP, or Command Line Interfaces
- Security features such as 802.1X, RADIUS/TACACS+, AAA, SNMPv3 and SSL
- The industrial hardened version supports temperature ranges from -40ºC to 80ºC and meets or exceeds all pertinent industrial environmental specifications including IEC 61850-3, IEEE 1613, NEMA TS-2, etc.

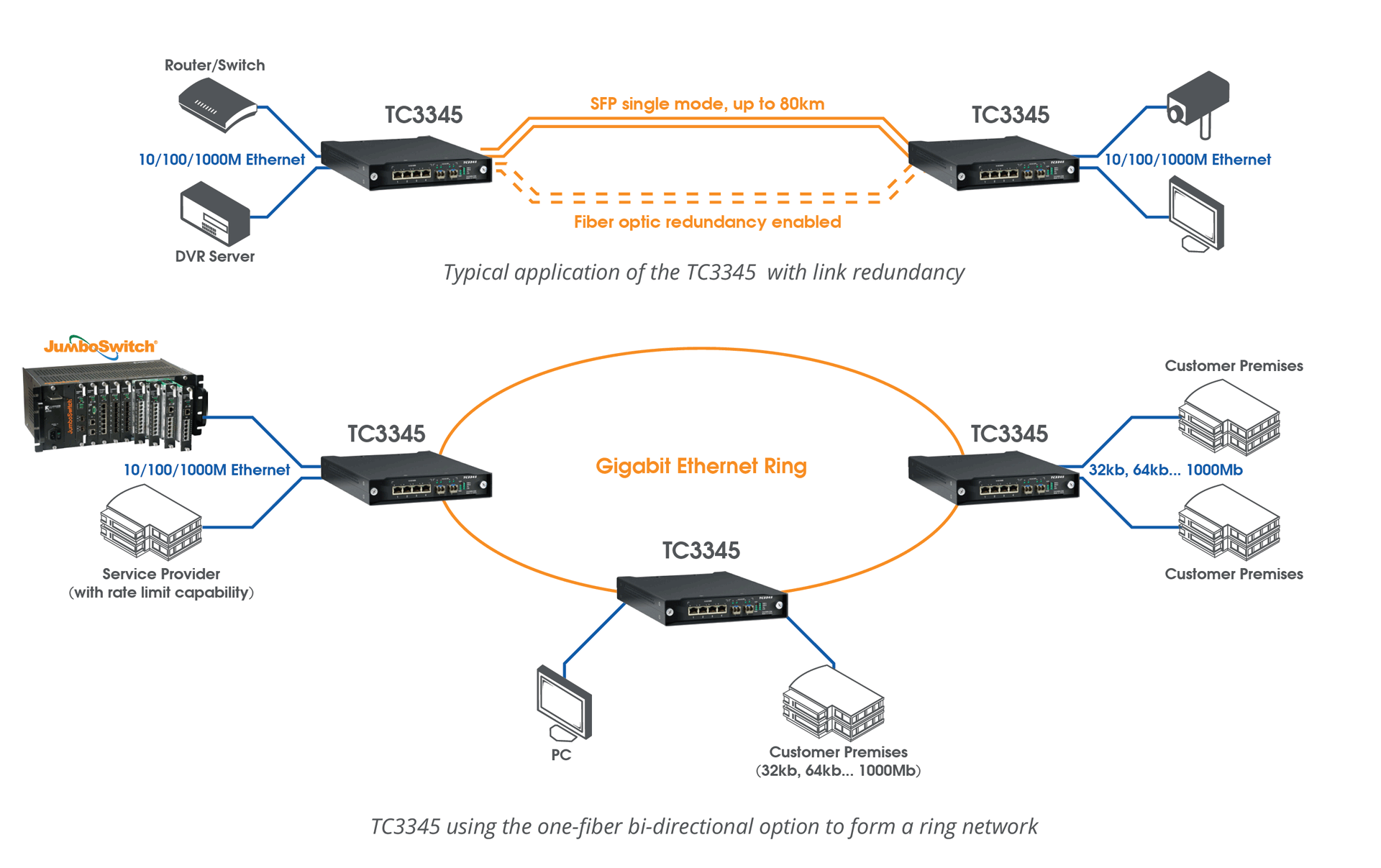

Applications
The TC3345 is a compact Gigabit Ethernet Switch solution for both industrial automation and commercial networks because it offers a wide range of advanced networking features including Redundancy, Rate Limiting, Diagnostics, Security and Industrial Hardened capability.
It is also used by Data Service Providers for its rate limiting; one fiber, bi-directional; and, media conversion capabilities.

Specifications
- SFPup to 2.5 Gbps
- RJ4510/100/1000 Mbps
- Wavelength
- Multimode850nm
- Single Mode1310/1550nm
- SFP Optic
- ConnectorLC
- Port2
- SFP I/F1000 BASE-LX/SX, 100FX, 2.5G
- Ethernet
- ConnectorRJ45
- Port5
- Interface1000 Base-T
- Console
- ConnectorRJ45
- Port1
- InterfaceRS-232
- CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2, EN50155, AREMA

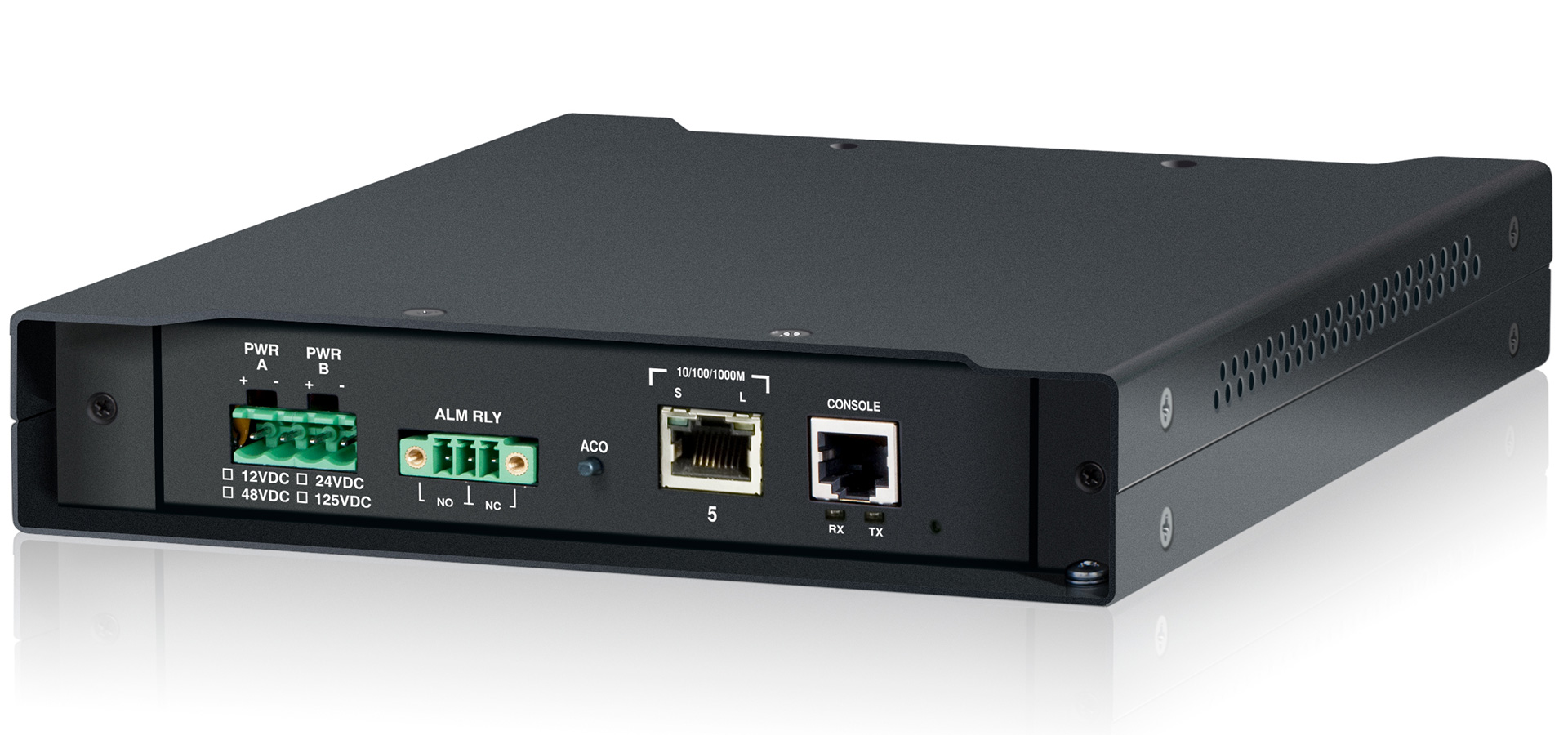

LEDs
- PWR A, PWR B, VCC, MGM, ALARM, LINK, SPEED
Power
- Standard12VDC
- Optional24VDC, -48VDC, 125VDC, 100-240VAC 50/60Hz
- Comsumption< 10W
- High Temp-20°C to 70°C
- Extreme Temp (opt.)-40°C to 80°C
- Temperature-40°C to 90°C
- Humidity95% non-condensing
- Height(4.22 cm) 1.66"
- Width(48.26 cm) 19"
- Depth(30.5 cm) 12"
- Weight(2.54 kg) 5.6 lbs
Below are SFP module options available. Click on the products to view datasheets.
SFP Modules | ||||
---|---|---|---|---|
Model No. | Data Rate | Mode | Wavelength | Distance |
760-011S1-00
760-011S1-05 |
1.25 Gbps | Multimode | 850 nm | 550 m |
760-031S1-00
760-031S1-05 |
1.25 Gbps | Multimode | 1310 nm | 2 km |
760-050S1-20
760-050S1-25 |
155 Mbps | Single Mode | 1310 nm | 20 km |
760-050S1-40
760-050S1-45 |
155 Mbps | Single Mode | 1310 nm | 40 km |
760-051S1-20
760-051S1-25 |
1.25 Gbps | Single Mode | 1310 nm | 20km |
760-051S1-40
760-051S1-45 |
1.25 Gbps | Single Mode | 1310 nm | 40km |
760-071S1-C0
760-071S1-C5 |
1.25 Gbps | Single Mode | 1550 nm | 120 km |
760-071S1-D0
760-071S1-D5 |
1.25 Gbps | Single Mode | 1550 nm | 160 km |
760-071S1-G0
760-071S1-G5 |
1.25 Gbps | Single Mode | 1550 nm | 200 km |
760-071S1-80
760-071S1-85 |
1.25 Gbps | Single Mode | 1550 nm | 80 km |
760-G57S1-20
760-G57S1-25 |
1.25 Gbps | Single Mode | 1310 nm/1550 nm | 20 km |
760-G57S1-40
760-G57S1-45 |
1.25 Gbps | Single Mode | 1310 nm/1550 nm | 40 km |
760-G75S1-20
760-G75S1-25 |
1.25 Gbps | Single Mode | 1550 nm/1310 nm | 20 km |
760-G75S1-40
760-G75S1-45 |
1.25 Gbps | Single Mode | 1550 nm/1310 nm | 40 km |
