TC3715

Unmanaged 10/100 Fiber Optic Ethernet Switch (6Tx + 1/2Fx)

TC3715
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC3715 10/100 6-Port Ethernet Switch is a low cost, flexible bandwidth solution for high traffic industrial and commercial fiber optic networks. With distances up to 80km, it provides a 100Base-FX port combining Ethernet Switching and Fiber Optic technology to boost total network bandwidth.

Notice: Product End of Life
(01/17/2024) for new applications use
TC3240 or TC3840DR
  • 6 Ethernet 10/100-Base Auto-Sensing UTP Ports
  • 1 or 2 Fiber Optic 100Base-FX Ports
  • One Fiber Bi-Directional Communication (optional)
  • Bandwidth Control (Optional)
  • Web-Based Configuration (available on Bandwidth Control versions)
  • Distances up to 80km
  • Multimode or Single Mode (1300/1550nm)
  • Industrial Hardened (optional)
  • Exceeds Pertinent NEMA & Caltrans Traffic Control Specifications
  • Rackmount

The TC3715 efficiently handles the heavy traffic of local workgroups, reducing the need of expensive routers that usually cater to the network backbone.

Applications

Notice: Product End of Life
(01/17/2024) for new applications use
TC3240 or TC3840DR

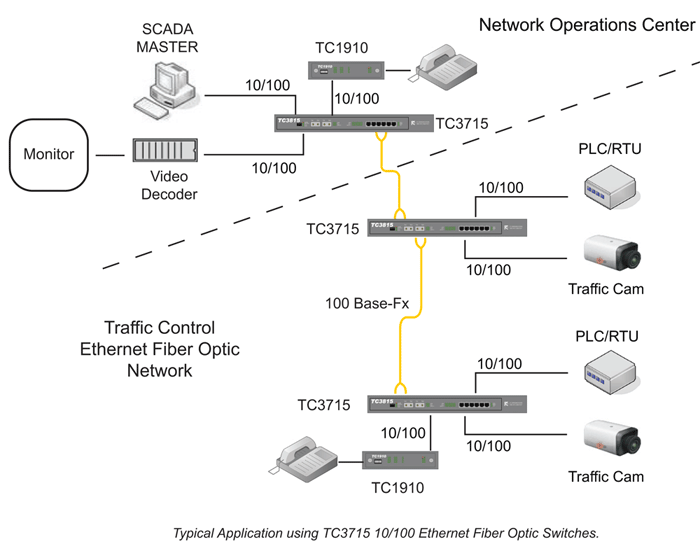

The TC3715 10/100 Industrial Ethernet Switch is a low cost and flexible bandwidth solution to efficiently handle the heavy traffic of local workgroups--- reducing the need of expensive routers that usually cater to the network backbone.

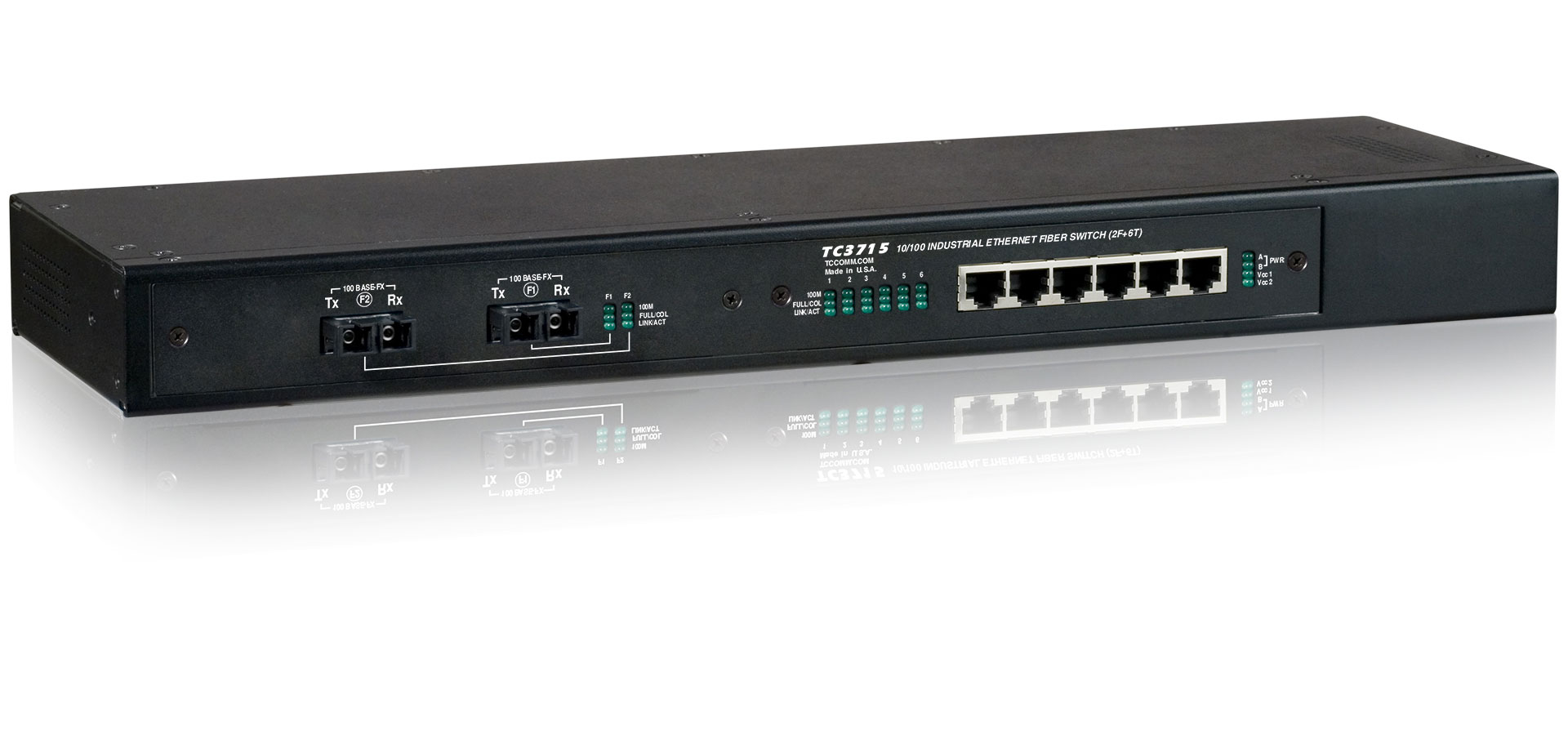

TC3715 - 6 Ports 10/100Base-TX Ethernet Fiber Optic Switch
Click to enlarge

Specifications

Notice: Product End of Life
(01/17/2024) for new applications use
TC3240 or TC3840DR
Data Rates
  1. Rates10/100 Mbps (auto-sensing)
  2. Bandwidth Control (optional)128K, 256K, 512K, 1M, 2M, 4M, 8M, 32M, 64M
Optical
  1. TransmitterELED/LASER *
  2. ReceiverPIN Diode
  3. Wavelength1300nm Multimode, 1300/1550nm Single Mode
  4. Fiber Optic ConnectorsST, Optional FC, SC
  5. Loss Budgets * - 1300/1550nm
  6. LED/ELED15dB MM @62.5/125µm
  7. LASER20dB SM @9/125µm
  8. InterfaceEthernet 100Base-Fx
Visual Indicators
  1. System LEDsPWR A, PWR B, Vcc
  2. Port Status (each port)100M, FULL/COL, LINK/ACT
Electrical
  1. Switch/HUB/Bridge Ports6 x RJ-45 Female
  2. InterfaceEthernet 10/100Base-T
Power
  1. Standard12VDC @ 500mA
  2. Optional24VDC, -48VDC, 125VDC, or 115/230VAC
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Extreme Temp (option)-40°C to 80°C
  4. Storage-40°C to 90°C
  5. Humidity95% non-condensing
Physical (Rackmount Unit)
  1. Height(3.53 cm) 1.39"
  2. Width(48.26 cm) 19.0"
  3. Depth(16.59 cm) 6.53"
  4. Weight(544 gm) 1.2 lbs
Contact factory for higher requirements
