TC8640-1

JumboBank 8 Channel T1/E1 Base Card

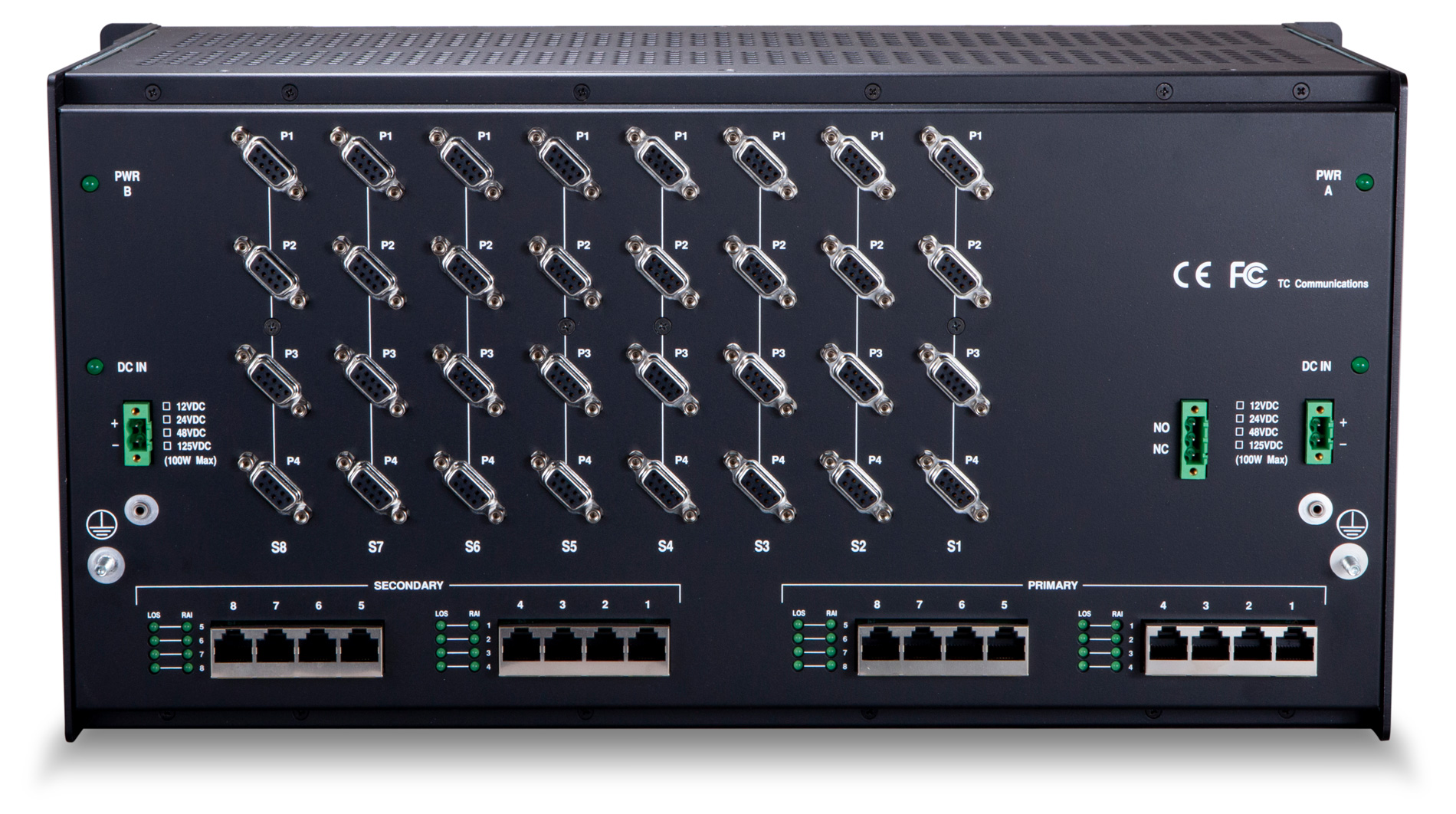

TC8640-1
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

TC8640-1 is a T1/E1 Base Card for the JumboBank 5U Chassis (TCRM19E) and works with all TC864x interface cards.

  • 8 CH T1 or E1
  • Modular Design with 8 Channels Per Module
  • ESF Framing Support for T1
  • PCM31C Framing Support for E1
  • Very Low Latency
  • Optional Power Redundancy
  • 5U Rack Mount Chassis
  • LEDs for T1/E1 signal status and remote unit status such as: BPV, CRC, RAI, AIS, LOS, SYNC
  • Rotary Switch Used to Configure Each Individual T1/E1 Channel

TC8640-1 has 8 Channels of T1 or E1. It is configured with the rotary switch to associate each T1/E1 link with a single or multiple interface cards in the 5U chassis. A second TC8640-1 in the 5U chassis can be configured either as an individual T1/E1 base card or as a redundant base card.

Applications

The TC8640-1 aggregates up to 8 incoming T1 lines from remote sites and terminates them on the JumboBank 5U chassis.

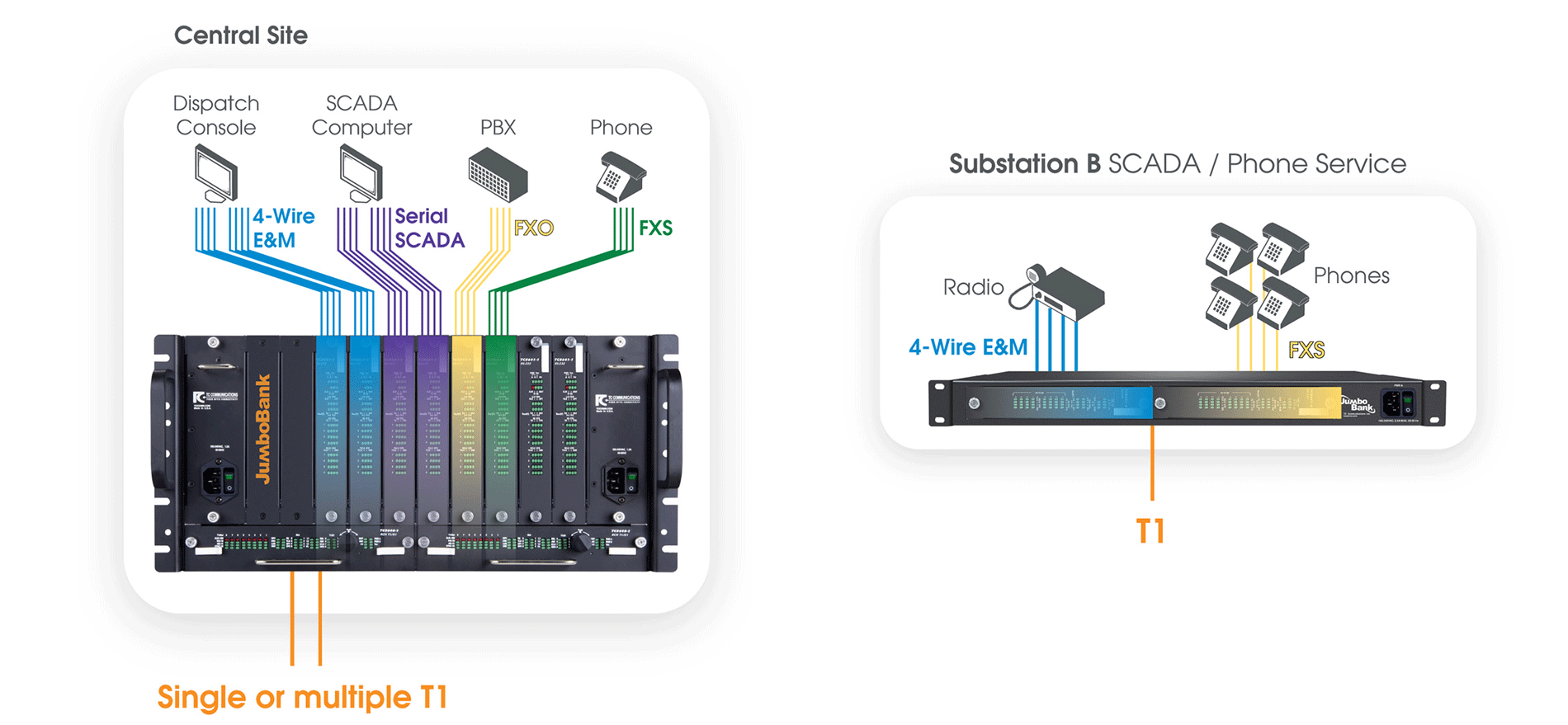

JumboBank - Cascade Units to a third location
Cascade units to a third location
JumboBank - Combining multiple interfaces over single or multiple T1/E1 lines
Combining multiple interfaces over single or multiple T1/E1 lines

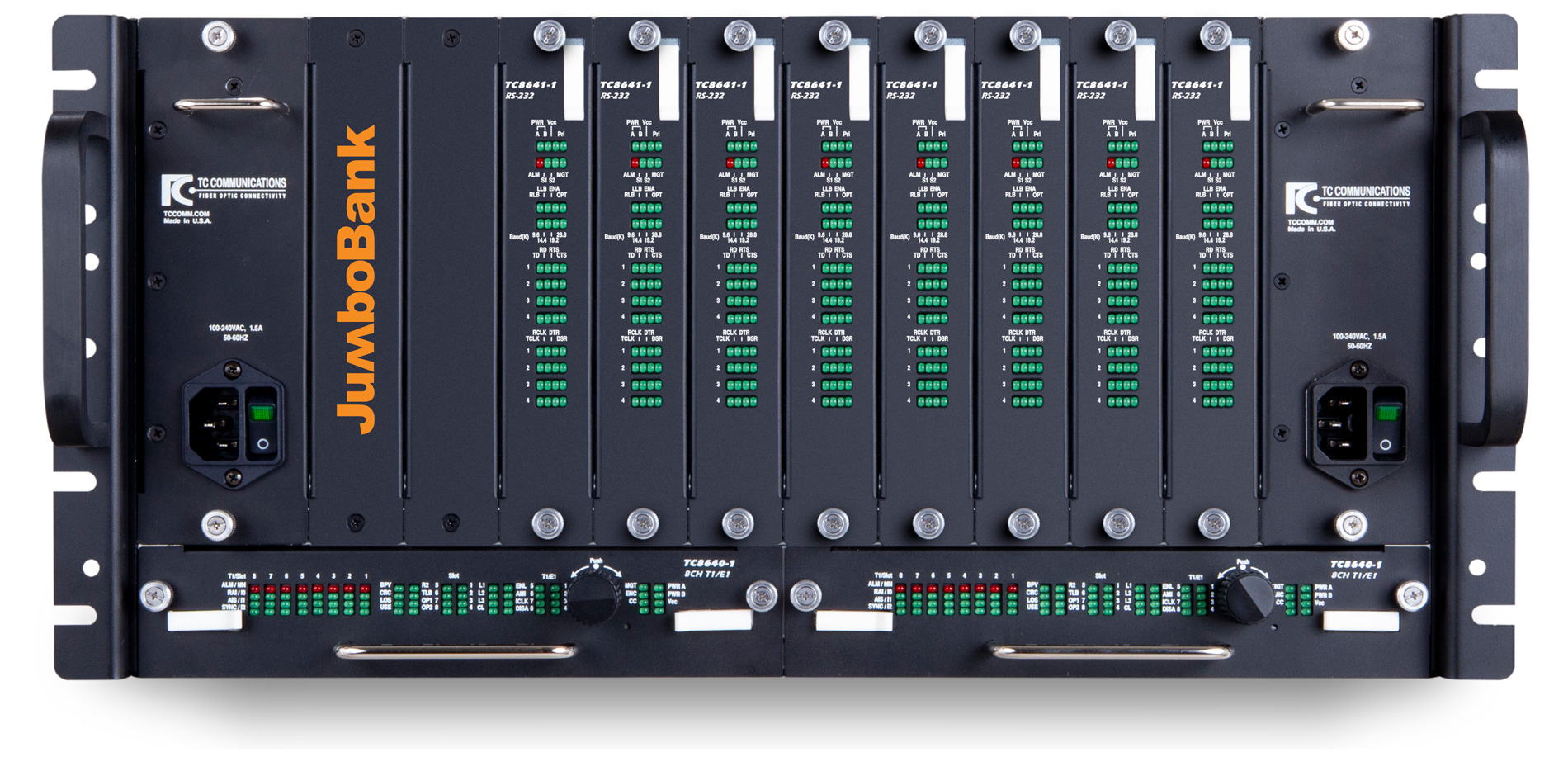

TC8640-1 - JumboBank Base Card
Click to enlarge

Specifications

T1/E1
  1. T1
  2. Receiver Sensitivity0dB to -36dB
  3. Line CodeAMI / B8ZS
  4. FramingESF (Only)
  5. E1
  6. Receiver Sensitivity0dB to -43dB
  7. Line CodeAMI / HDB3
  8. FramingPCM31C
Visual Indicators
  1. Channel Status TX/RX
  2. SystemPWR A, PWR B, Vcc, ALM, RMT
  3. T1/E1AMI, RAI, AIS, CRC, BPV, LOS, SYNC, In-Use
System
  1. Bit Error Rate1 in 109 or better

Alarm
  1. Dry ContactNormal Open/Closed
Power
  1. Standard12VDC @500mA MAX
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Extreme (optional)-40°C to 80°C
  4. Storage-40°C to 90°C
  5. Humidity95% non-condensing
Physical (5U Rackmount Base Card)
  1. Height(4.44cm) 1.75"
  2. Width(21.54cm) 8.48"
  3. Depth(22.86cm) 9.00"
