TC8800S/R

Telephone, Analog & Data Fiber Optic Multiplexer (2-28 ch.)

TC8800S/R
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC8800 Fiber Optic Multiplexer makes it possible to extend up to 28 telephone, data & analog channels to remote network sites. Its 4-to-28 channel Telephone & Data Fiber Optic Multiplexer links or extends data and telephone lines in campus networks.

  • Up to 28 Telephone Lines and/or 2/4-wire 600 Ohm Analog, RS-232, RS-422, TTL, Dry Contact Closure, Dry ContactDetector
  • 2-Wire Analog PBX and Key System Compatible
  • Multimode or Single Mode (850/1300/1550nm)
  • Built-In Power Redundancy
  • Optical Redundancy (optional)
  • Hi-Temp & Extreme Temp (optional)
  • Hot Swappable Rackmount Cards
  • Tested and Compatible with:
    code blue ramtel talk a phone

The TC8800 is typically used to link or extend data and telephone lines in campus networks. In many instances, it can replace expensive channel banks.

Applications

The TC8800 is typically used to link or extend data and telephone lines in campus networks. In many instances, it can replace expensive channel banks.

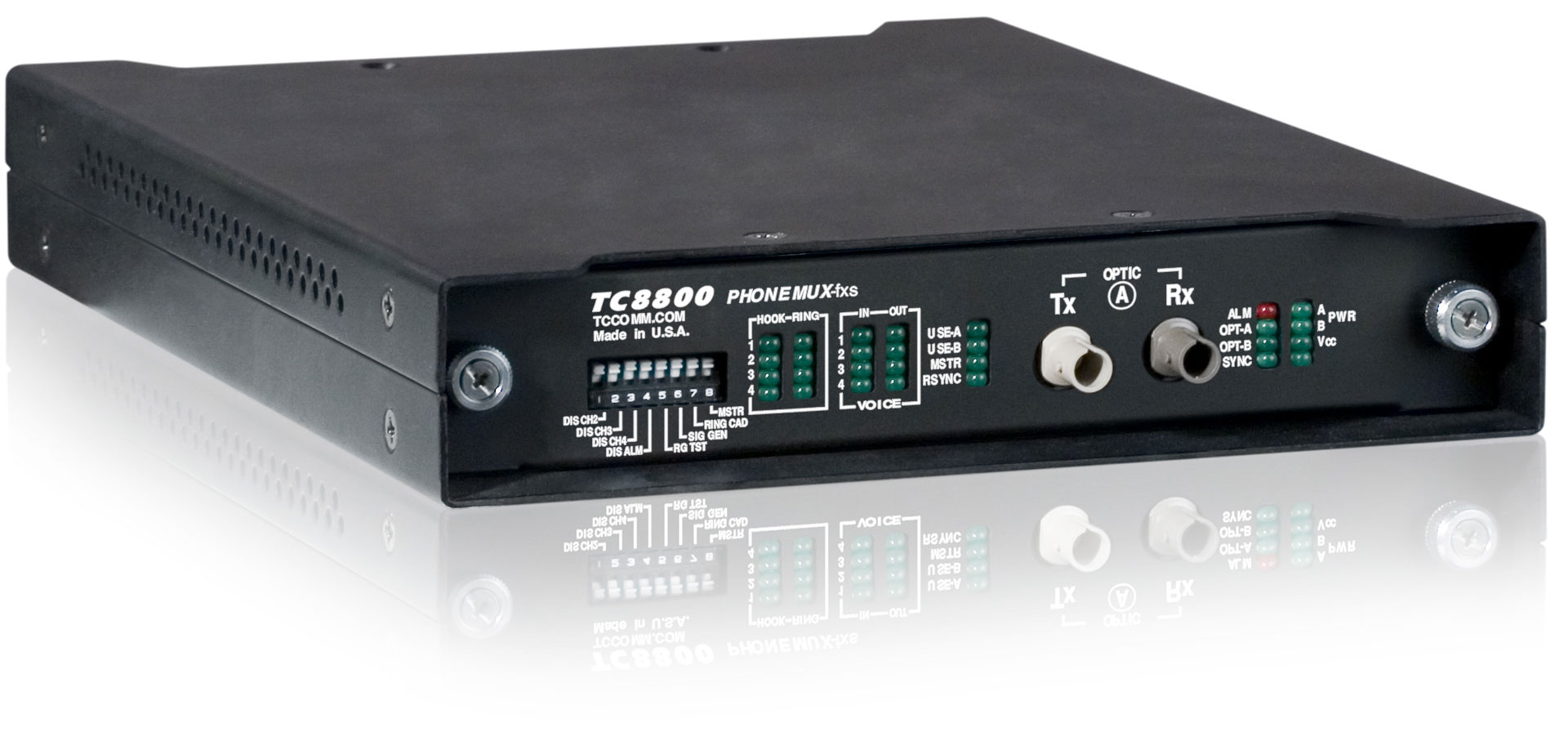

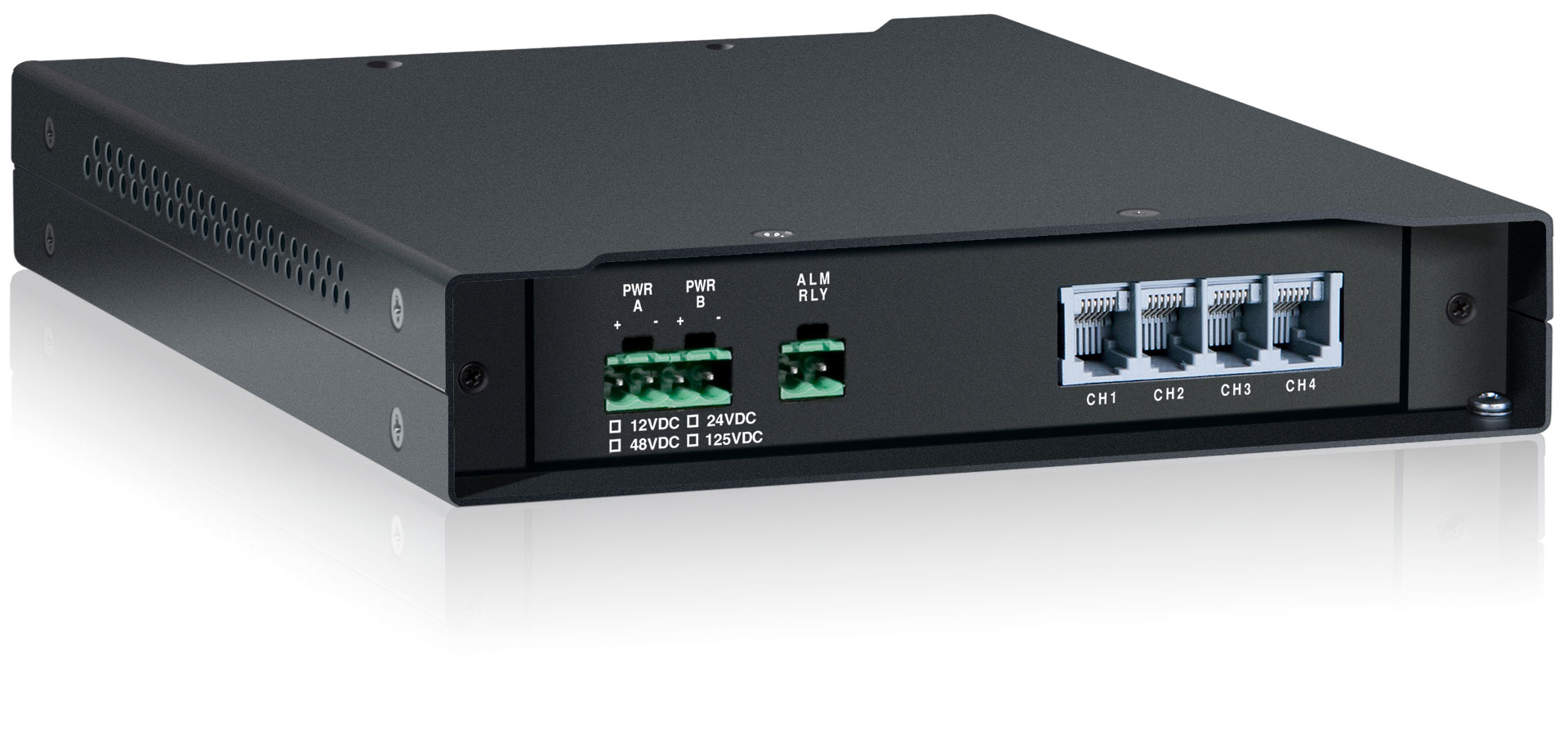

TC8800S/R - 1-28 Ch. Telephone & Data Fiber Optic Multiplexer
Click to enlarge

Specifications

Audio Bandwidth
  1. Telephone300 Hz to 3.4 Khz
  2. 2/4-wire Analog300 Hz to 3.4 Khz
Data Interfaces
  1. Async RS-232, RS-422, TTL, or Dry Contact Closure/Detector Data RatesUp to 19.2 Kbps
Channel Capacity
  1. TC8800S4 or 8 Channels
  2. TC8800R4, 8, 12, 16, 20, 24 or 28 Channels
Optical
  1. TransmitterLED/ELED
  2. ReceiverPIN Diode
  3. Wavelength850/1300nm MM, 1300/1550nm SM
  4. Fiber Optic ConnectorsST, FC
  5. Loss Budget * - 850/1300/1550nm
  6. Multimode @ 62.5/125µm15dB
  7. Single Mode @ 9/125µm20dB
Electrical
  1. ConnectorRJ11 Female
System
  1. Bit Error Rate1 in 109 or better
Visual Indicators
  1. Power A & B, Vcc, FXS-0, Tx, Rx,Monitor, Optic-Rx, Sync, TxFCLK,LOCLB, RMTLBYes
  2. For each channelTx, Rx, Ring, Hook
Power
  1. Standard12VDC
  2. Optional24, -48VDC, or 115/230VAC*
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp 1 (optional)-20°C to 70°C
  3. Hi-Temp 2 (optional)-40°C to 80°C
  4. Storage-40°C to 90°C
  5. Humidity95% non-condensing
Physical (4-Channel Standalone)
  1. Height(3.18 cm) 1.25"
  2. Width(15.06 cm) 5.93"
  3. Depth(21.84 cm) 8.60"
  4. Weight(477 gm) 1.05 lbs
* Contact factory for higher requirements

Ordering

For more information

For assistance with this product or to request a user manual please contact Technical Support.
