TC4001

Wave Division Fiber Optic Multiplexer (2 ch. "Channel Surfer")

TC4001
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The 2-Channel TC4001 Wave Division Multiplexer doubles existing fiber optic cable capacity by transmitting bi-directional signals over a single fiber. Transparent to incoming data, it effectively doubles existing fiber optic cable capacity by multiplexing two separate channels over one single mode fiber. Dual two-channel units are also available.

The TC4001 is ideal for situations where existing fiber optic cable is limited. Because it doubles existing cable capacity by transmitting bi-directional signals over a single fiber, it eliminates the need to install additional fiber optic cable.

  • Single Mode Fiber Only
  • Doubles Use of Existing Fiber Optic Cable
  • Transparent to Data Format
  • Passive Device - No External Power Needed

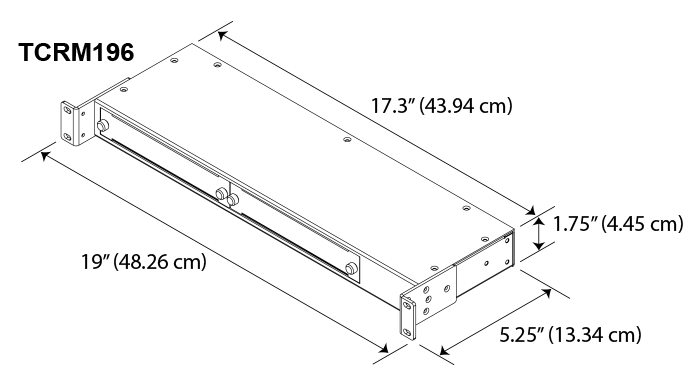

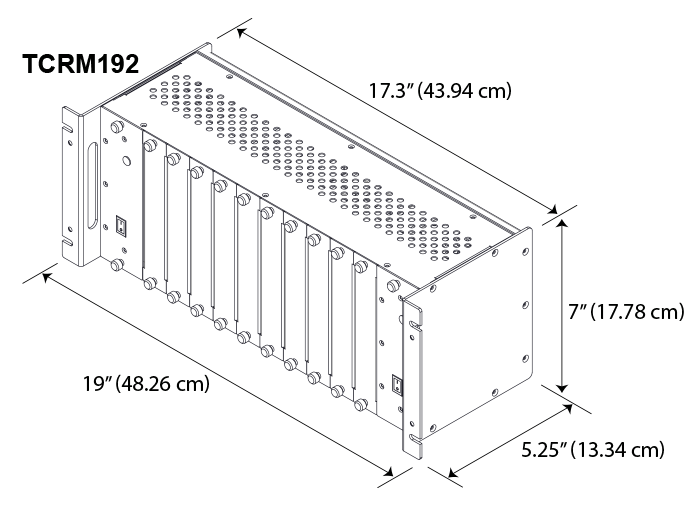

  • Standalone or Rackmount

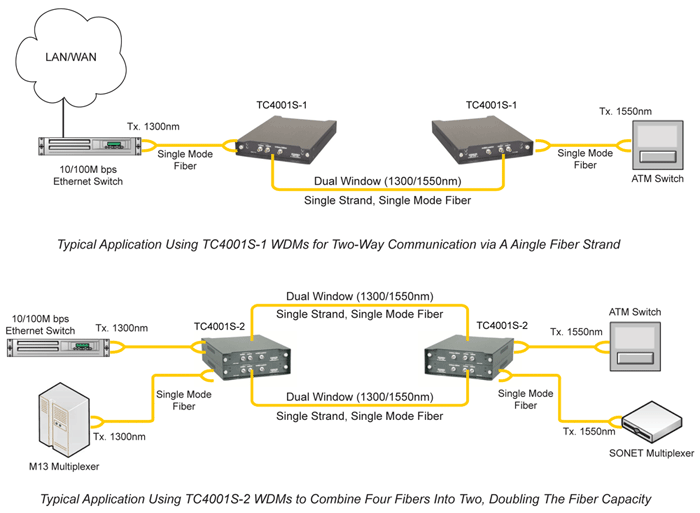

Applications

The TC4001 is ideal for situations where existing fiber optic cable is limited. Because it doubles existing cable capacity by transmitting bi-directional signals over a single fiber, it eliminates the need to install additional fiber optic cable.

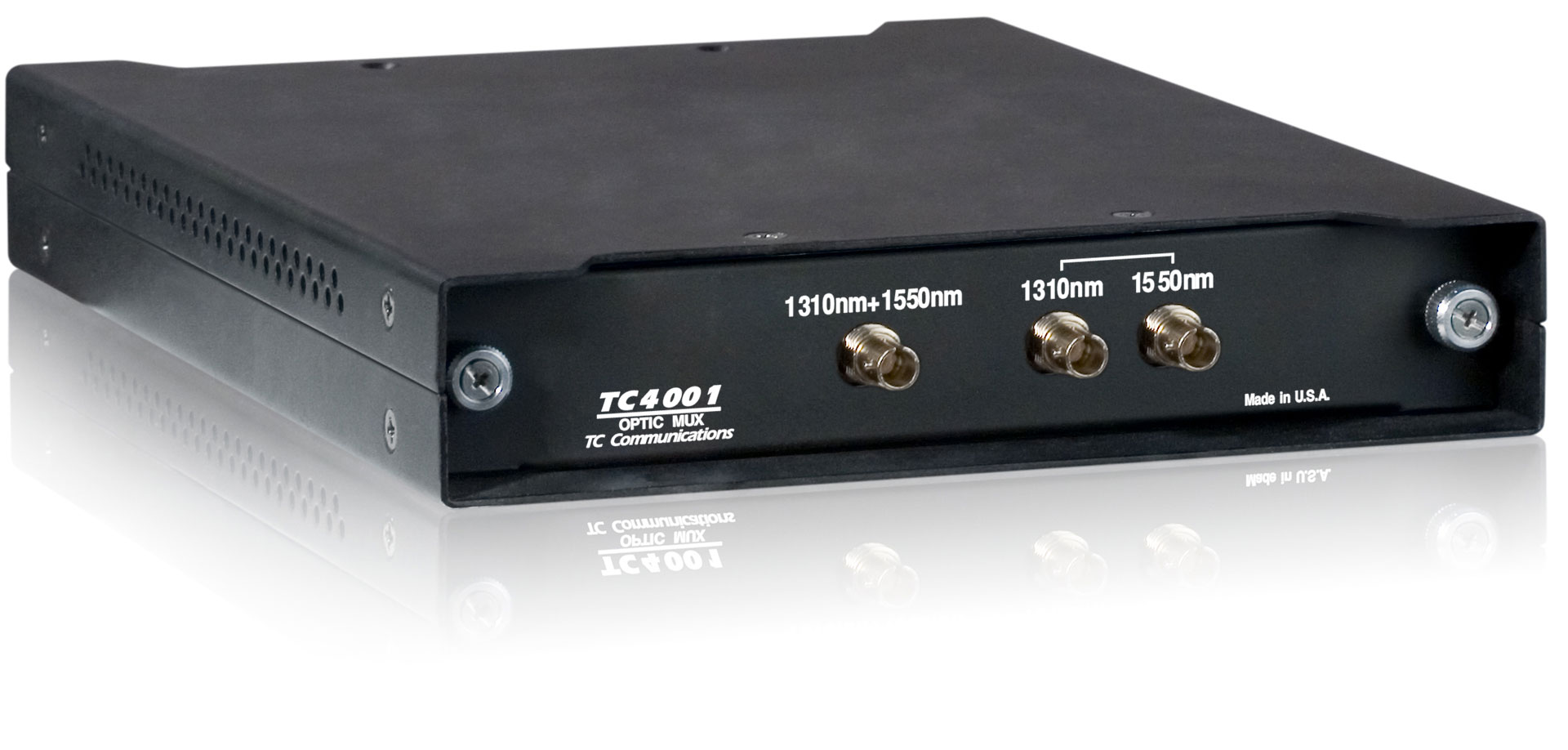

TC4001 - 2-Channel Wave Division Multiplexer (WDM)
Click to enlarge

Specifications

Bandwidth
  1. 1310/1550nm SM±20nm
Insertion Loss (approximate)
  1. Standard Version< 0.6 dB
  2. High Isolation (optional)< 0.8 dB
Isolation
  1. Standard Version< 16 dB
  2. High Isolation (optional)< 30 dB
Directivity
  1. (Return Loss)> 50 dB
Typical Polarization Sensitivity
  1. (PSD)< 0.1 dB
Typical Thermal Stability
  1. (PSD)< ±0.1 dB
Optic Ports
  1. 1310nm1
  2. 1550nm1
  3. 1310nm + 1550nm1
  4. ConnectorsST, FC, or SC
Temperature
  1. Operating-10°C to 50°C
  2. Storage-40°C to 90°C
  3. Humidity95% non-condensing

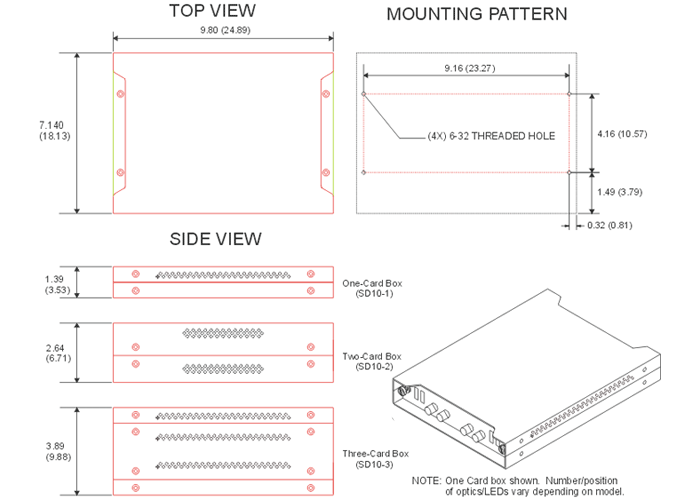

Physical (4-Channel Standalone)
  1. Height(3.53 cm) 1.39"
  2. Width(18.13 cm) 7.14"
  3. Depth(24.89 cm) 9.80"
  4. Weight(887 gm) 1.96 lbs

Literature / News

Ordering

For more information

Request details
Datasheet
Have a question?

For assistance with this product or to request a user manual please contact Technical Support.
