TC2900

Multi-Drop Fiber Optic Multiplexer (Bus/String: RS232/422/485)

TC2900
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC2900 RS232/422/485 Multi Drop Fiber Optic Multiplexer links RTUs, PLCs, etc. in SCADA, transportation & process control Bus & String topology networks

Notice: Product End of Life
(10/29/2020) for new applications use TC3847-1, or TC3847-1DR

The TC2900 works in "poll-response" (also called Slave/Master) types of communication networks. RS-232 and RS-485 interfaces are independent and operate over single mode or multimode fiber.

  • Bus or String Topologies
  • Async Data Rates up to 38.4 Kbps
  • Separate Broadcast & Respond Chls
  • Multimode & Single Mode (850/1300/1550nm)
  • Distances up to 100km
  • 8 or 12 Channels RS-232/422/485
  • Tx & Rx LEDs for Each Channel
  • Anti-Streaming Capability
  • Built-In Power Redundancy
  • Local Dry Contact Alarm Relay
  • Rackmount or Standalone

Applications

Notice: Product End of Life
(10/29/2020) for new applications use TC3847-1, or TC3847-1DR

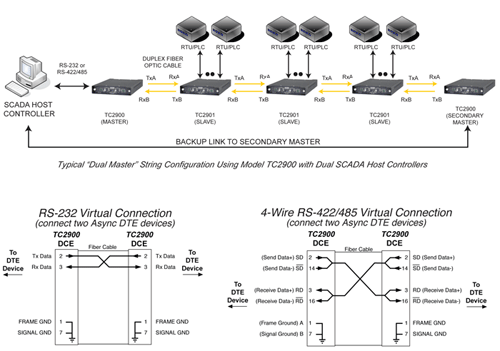

Designed for Bus or String topologies, the TC2900 is often used to interconnect Remote Terminal Units (RTUs) or Programmable Logic Controllers (PLCs) in Utility substation SCADA Networks that require multiple channels. It is also used for similar connectivity applications in Traffic Control, Industrial Process Control and Security System fiber optic networks.

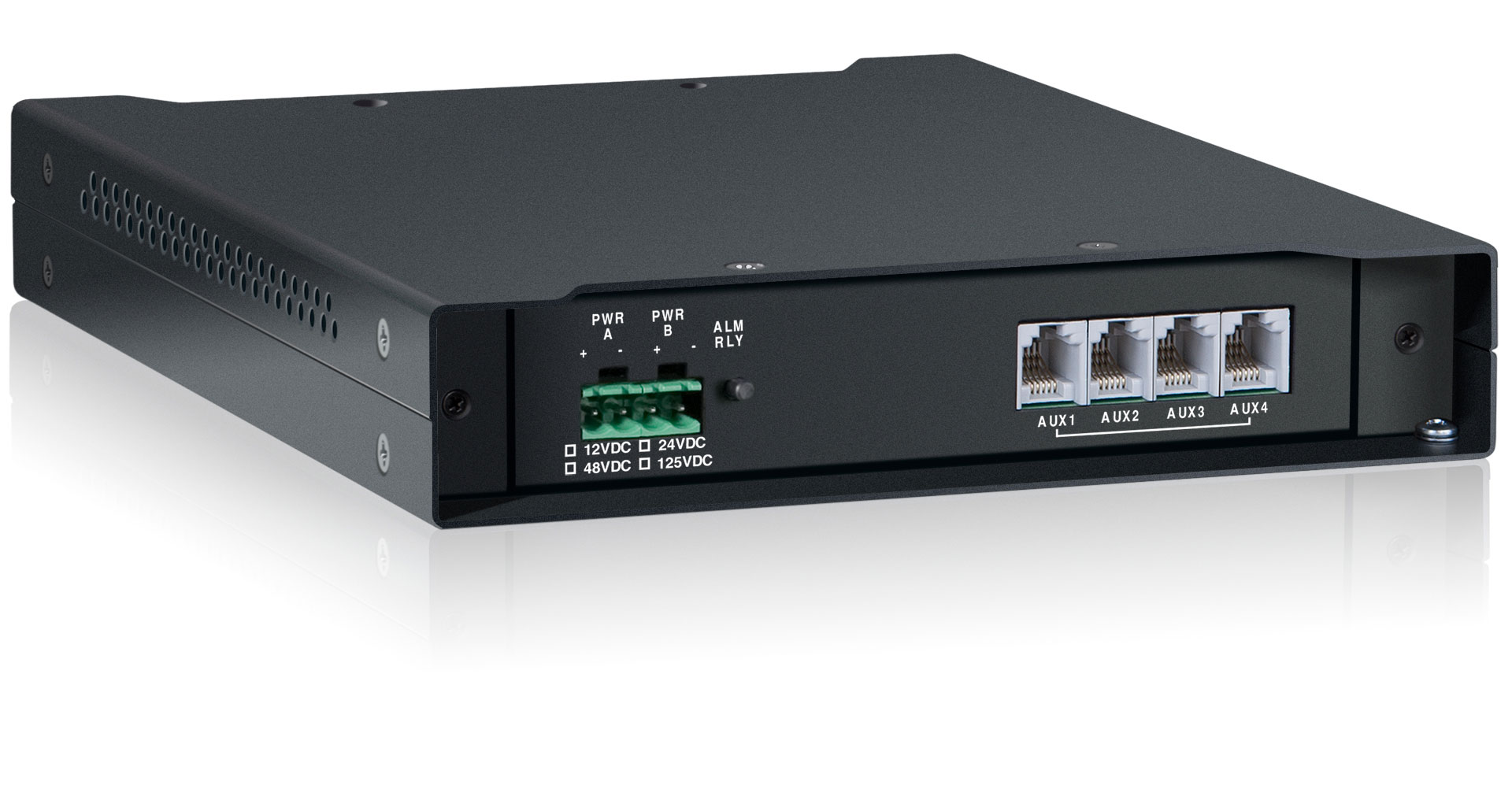

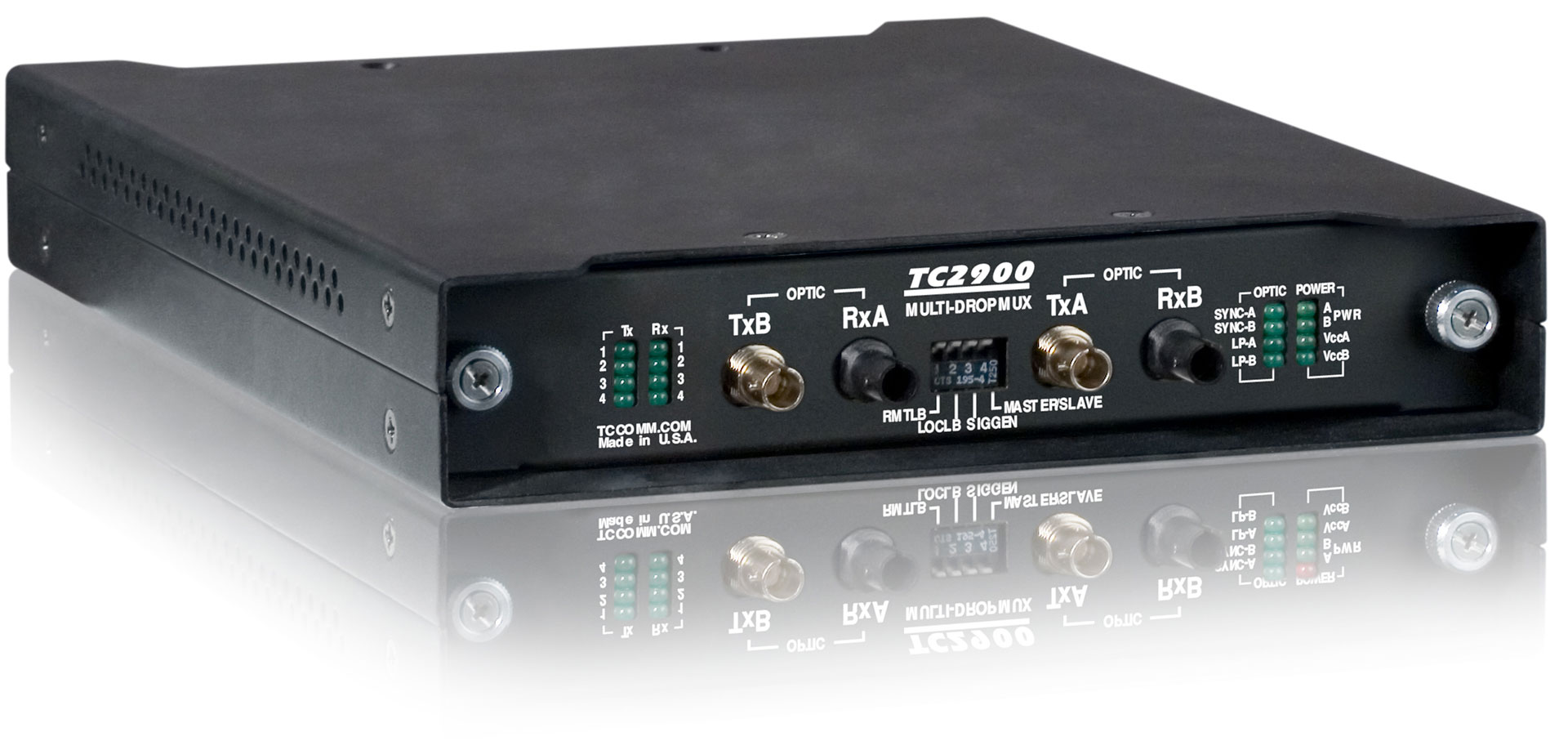

TC2900 - Bus/String Multidrop Fiber Optic Multiplexer
Click to enlarge

Specifications

Notice: Product End of Life
(10/29/2020) for new applications use TC3847-1, or TC3847-1DR
Data Rates
  1. Async RS-232/422/485to 38.4 Kbps
Optical
  1. TransmitterLED/ELED/LASER*
  2. ReceiverPIN Diode
  3. Wavelength850/1300nm Multimode, 1300/1550nm Single Mode
  4. Fiber Optic ConnectorsST or FC
  5. Loss Budget * - 850/1300/1550nm
  6. Multimode @62.5/125µm15dB
  7. Single Mode @9/125µm20dB
Electrical
  1. ConnectorRJ11 Female
  2. Interface(DCE) RS-232, RS-422, or RS-485 (2 or 4-wire)
Diagnostic Functions
  1. Local & Remote Loopback, Signal Generator, Master/SlaveYes
Power
  1. Standard12VDC @ 800mA
  2. Optional24VDC, -48VDC, or 115/230VAC with Power Cube
System
  1. Bit Error Rate1 in 109 or Better
Alarm
  1. Dry ContactNormal OPEN
Visual Indicators
  1. System PWR A, PWR B, VccA, VccB
  2. Electrical SignalTx Rx (for each channel)
  3. Optic SignalTxA, RxA, TxB, RxB, SYNC-A, SYNC-B, LP-A, LP-B
  4. AlarmPWRA, PWRB, OPTIC, AST (TC2851 only)
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp1 (optional)-20°C to 70°C
  3. Storage-40°C to 90°C
  4. Humidity95% non-condensing
Physical (Rackmount Unit)
  1. Height(6.71 cm) 2.6"
  2. Width(18.10 cm) 7.1"
  3. Depth(24.89 cm) 9.8"
  4. Weight(1.82 kg) 4 lbs
* Contact factory for higher requirements
