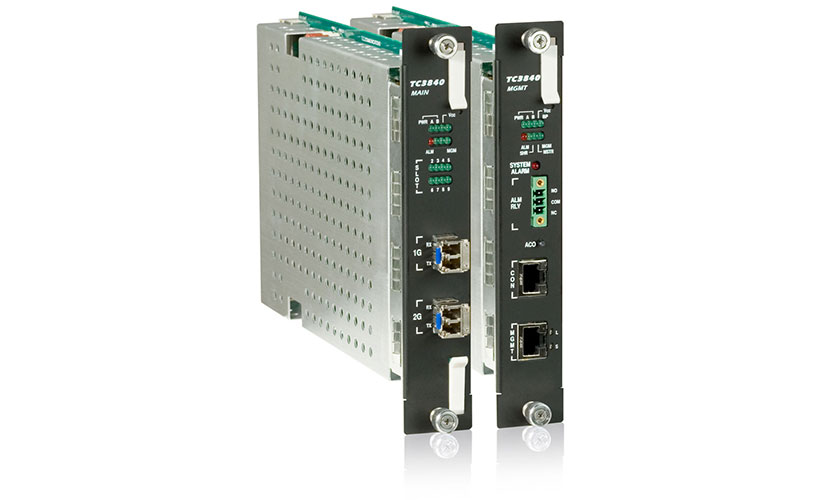

TC3840-1 and -2

Main and Management Ethernet Switch Cards

TC3840-1 and -2
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The JumboSwitch Main (TC3840-1) and Management (TC3840-2) plug-in cards provide layer 2 switching functionality and the central switching fabric for JumboSwitch interface cards. Each 2U/4U chassis must include both a Main and a Management card to function properly.

Notice: Product End of Life
(07/22/2022) for new applications use TC3840-5

Optional interface cards communicate with the Main and Management Cards through the backplane, which contain both Data & Control buses. Together, the Main and Management cards provide the "intelligence" for the entire JumboSwitch network platform and serve as both the JumboSwitch’s central processing unit and as the control bus access point for JumboSwitch management.

  • Provides Layer 2 Switching Functionality
  • Fully Managed via CLI, Telnet & SNMP
  • 2-Port SFP Gigabit for Main Card
  • 1-Management Port and 1-Console Port for Management Card
  • Built-In Power/Temperature Sensors
  • Industrial Hardened & IEC 61850-3, IEEE 1613 & NEMA TS-2

Applications

Notice: Product End of Life
(07/22/2022) for new applications use TC3840-5

All JumboSwitches must include Main and Management plug-in cards to operate properly. The Management Card functions as the JumboSwitch’s central processing unit and the Main Card is the control bus access point for JumboSwitch management. Together, these cards provide the "intelligence" for the entire JumboSwitch network platform.

There are two types of Main & Management plug-in cards: individual (TC3840-1 & TC3840-2) and combination (TC3840-3). JumboSwitch 2U & 4U chassis options use individual cards and 1U & 2S options use the “combo card.”

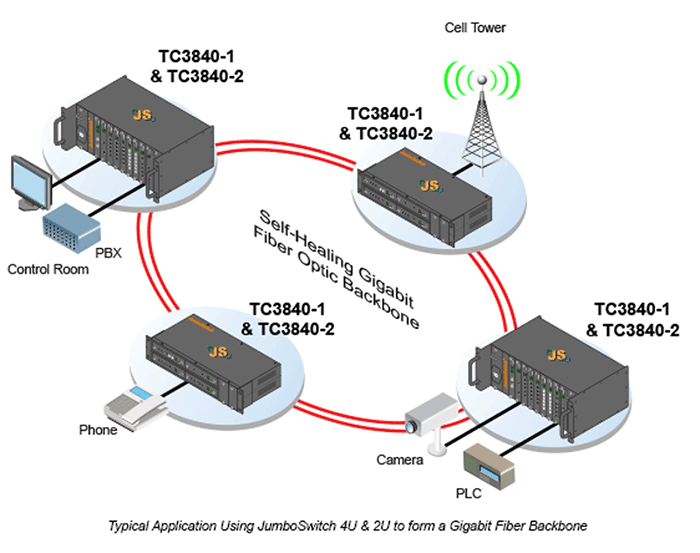

TC3840-1 and -2 - Main & Mgmt for 4U and 2U Chassis
Click to enlarge

Specifications

Notice: Product End of Life
(07/22/2022) for new applications use TC3840-5
Data Rates
  1. 10/100/1000 Mbps with Rate ControlYes
Optical (Main Card)
  1. TransmitterELED/LASER*
  2. ReceiverPIN Diode
  3. Wavelength
  4. SFP850nm MM
  5. SFP1300/1550nm SM
  6. SFP Optic
  7. ConnectorsLC
  8. Port2
  9. Interface1000SX/LX
Electrical (MGMT Card)
  1. Management Ports
  2. ConnectorRJ45 Female
  3. Port1
  4. Console Port
  5. ConnectorRJ45 Female
  6. Port1
System
  1. Bit Error Rate1 in 1010or Better
Regulatory Approval
  1. CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2
Diagnostic Functions
  1. Traffic Statistics, Transmit Power & Receive Power and Temperature
LEDs
  1. Main
  2. PWR (A,B), Vcc, ALM, MGM Yes
  3. SLOTS, Link/ActYes
  4. MGMT
  5. PWR (A,B), Vcc, BP, ALM, MGM, SHRYes
  6. MSTR, SYSTEM ALARM, Link/Act, SpeedYes
Power
  1. Standard15W
  2. Option12, 24, -48, 125VDC or 115/230 VAC, 50/60Hz
Operating Temperature
  2. High Temp-20°C to 70°C
  3. Extreme Temp-40°C to 80°C
Storage
  1. Temperature-40°C to 90°C
  2. Humidity95% non-condensing
Storage
  1. Height(3.2 cm) 1.25”
  2. Width(17.8 cm) 7.0”
  3. Depth(23.5 cm) 9.25”
  4. Weight(0.5 kg) 1 lbs*
*Contact factory for higher requirements
