TC3844-5

Ethernet/IP-Over-OC-3/STM-1 Gateway

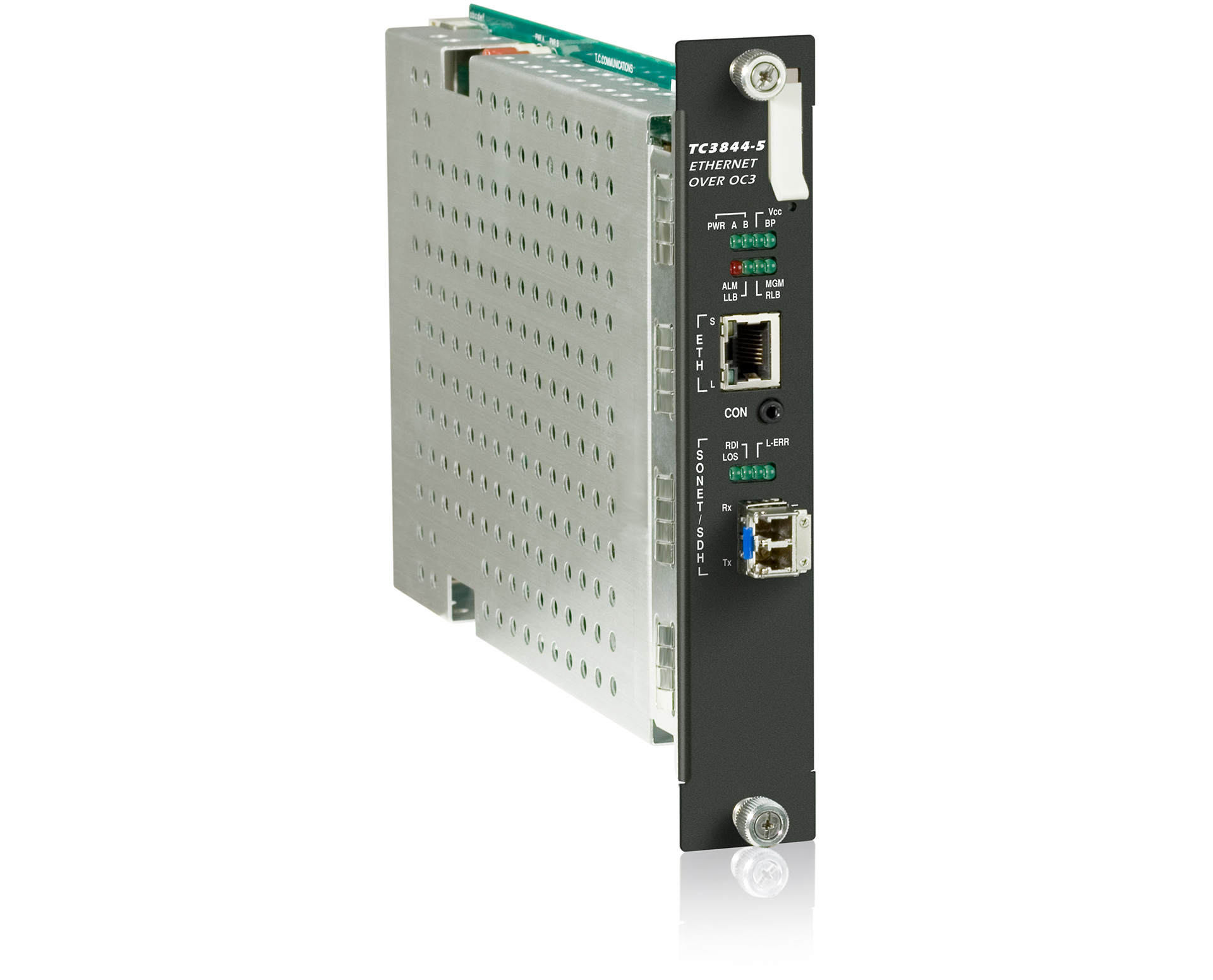

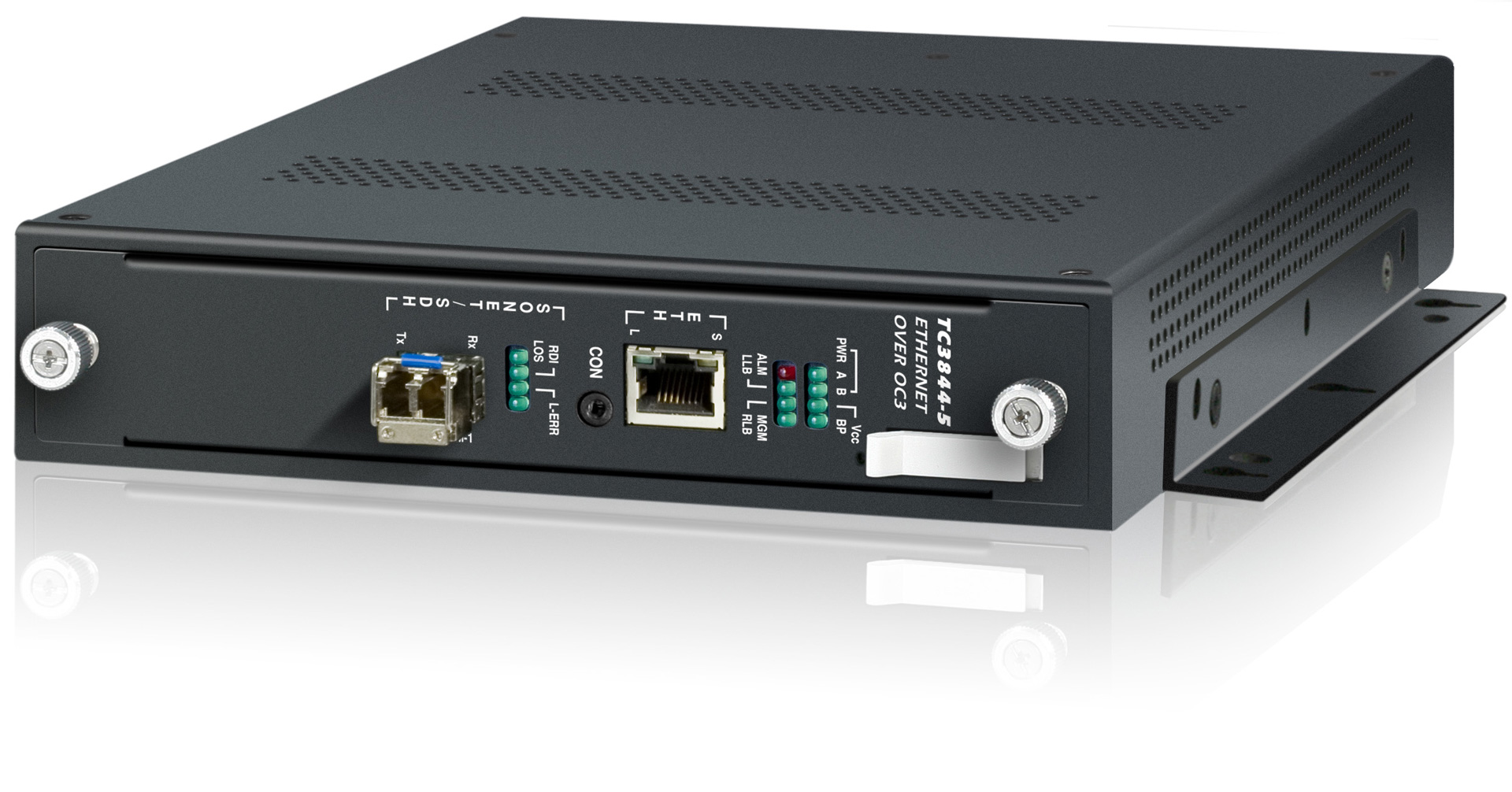

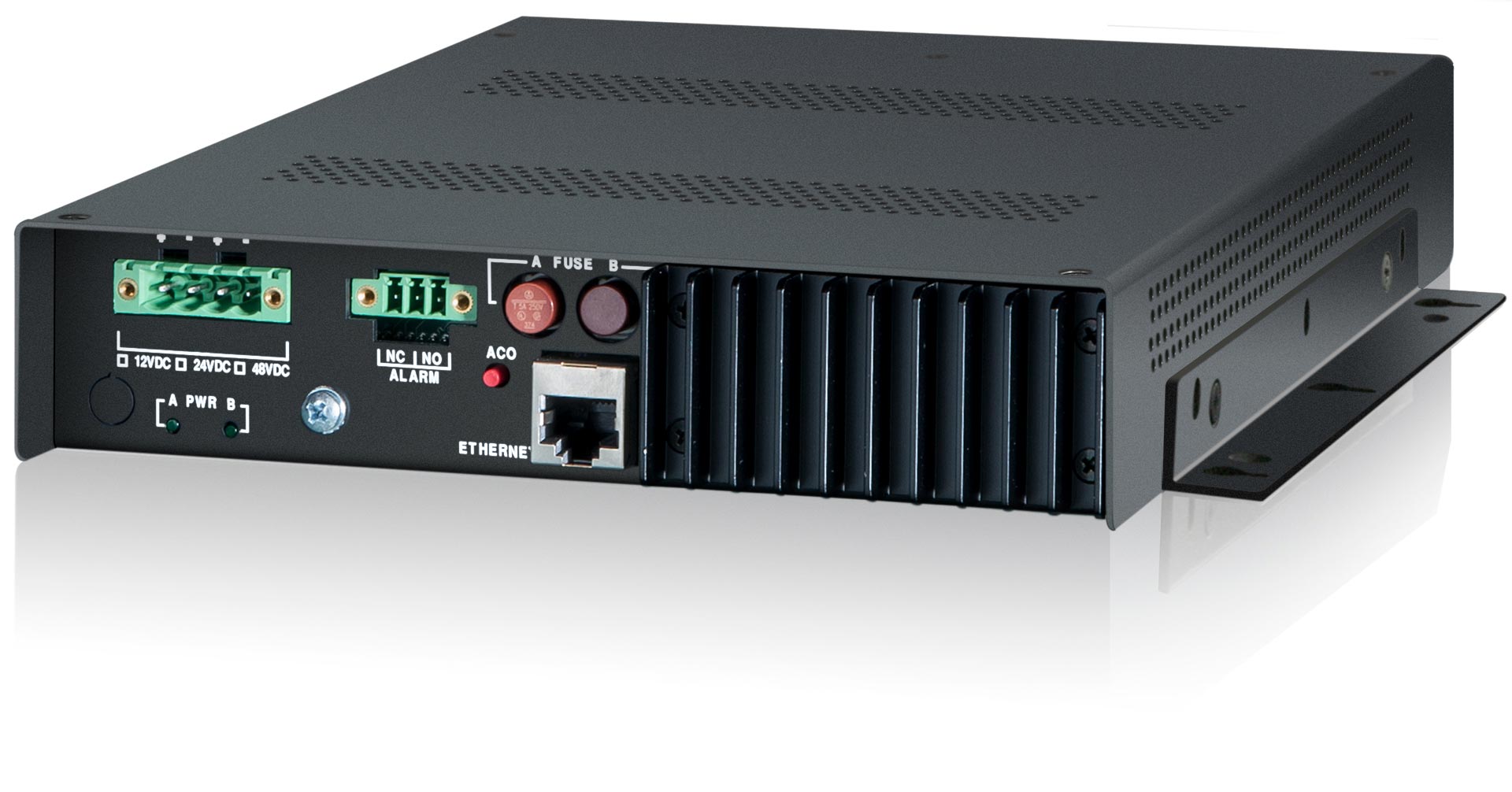

TC3844-5
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC3844-5 is ideal for bridging Ethernet LANs between existing SONET/SDH networks, establishing demarcation points between carrier and customer networks, providing a low-cost IP migration path to SONET/SDH. And enabling bonded transparent LAN service.

The TC3844-5 Ethernet-over-OC-3/STM-1 Gateway simplifies and lowers the cost of Gigabit Ethernet over SONET/SDH connectivity by extending Ethernet backhaul applications to remote locations. It is part of the JumboSwitch® series, a TDM over IP/Ethernet based solution designed to emulate time-division multiplexing over packet switched networks (PSN).

  • OC-3/STM-1 Optical
  • Standard GFP Encapsulation per ITU-T G.7041
  • IEEE 801.p QoS with four queues
  • Ethernet and OC-3 Statistics Monitoring
  • VLAN Tagging and Priority Labeling
  • Manage Via Web, SNMP, Serial Console, Telnet
  • Built-In Temperature & Power Sensors

Change Notification 9/11/2024: BNC Connector discontinuation

The TC3844-5 version with the BNC connector is no longer available.

Applications

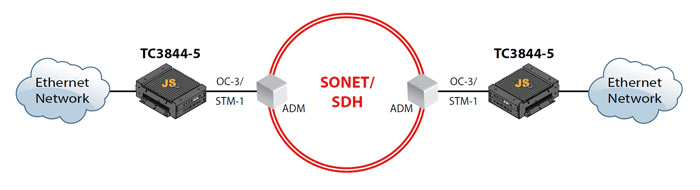

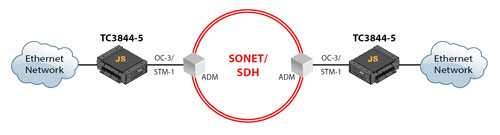

Read about the TC3844-5 in the Ethernet migration solution for OC3 microwave links application note

  • Bridging Ethernet LANs between Existing SONET/SDH Networks
  • Establishing Demarcation Points between Carrier and Customer Networks
  • Providing Low Cost IP migration path to SONET/SDH
  • Enabling Bonded Transparent LAN Service
TC3844-5 - Ethernet-over-OC-3/STM-1
Click to enlarge

Specifications

Change Notification 9/11/2024: BNC Connector discontinuation

The TC3844-5 version with the BNC connector is no longer available.

Highlights
  • Extreme Temp (-40°C to +80°C) Optional
  • Meets or Exceeds IEC 61850-3, IEEE 1613 & NEMA TS-2 Standards

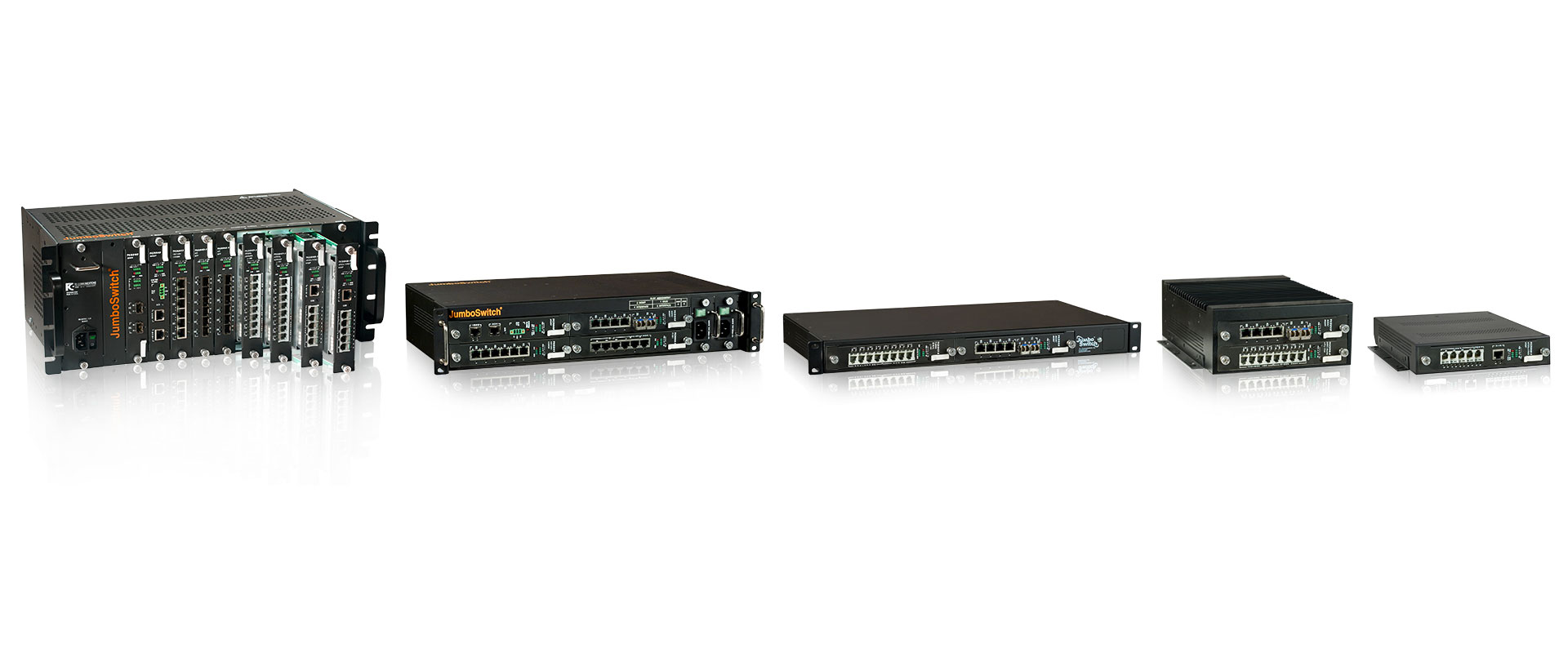

  • Member of the JumboSwitch® Product Family
Electrical
  1. SONET
  2. Fiber(OC-3)SFP LC
  3. Data Rate155.52Mbps
  4. FramingSONET GR-253-core, OC-3
  5. SDH
  6. Fiber(OC-3)SFP LC
  7. Data Rate155.52Mbps
  8. FramingSDH ITU-T G.708, G.709
  9. Ethernet Interface
  10. ConnectorElectrical RJ-45
  11. Type10/100/1000 Base-T
  12. ComplianceIEEE 802.3
System
  1. Bit Error Rate1 in 109 or Better
Regulatory Approval
  1. CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2
LEDs
  1. ALM, RLB, MGM, S (Speed), L (Link), PWR A, PWR B, BP, LOS, RDI, L-ERR, BNC
Power
  1. Standard12VDC
  2. Optional24VDC, -48VDC, 90-260 VAC, 50/60Hz
  3. Power Consumption< 10W
Operating Temperature
  1. Hi-Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Storage
  1. Temperature-40°C to 90°C
  2. Humidity95% non-condensing
Physical (4-Channel Standalone)
  1. Height(3.15 cm) 1.24"
  2. Width(17.78 cm) 7.0"
  3. Depth(22.86 cm) 9.0"
  4. Weight(0.3 kg) 0.75 lbs

Below are SFP module options available. Click on the products to view datasheets.

SFP Modules
Model No. Data Rate Mode Wavelength Distance
760-011S1-00
760-011S1-05 		1.25 Gbps Multimode 850 nm 550 m
760-031S1-00
760-031S1-05		 1.25 Gbps Multimode 1310 nm 2 km
760-050S1-20
760-050S1-25		 155 Mbps Single Mode 1310 nm 20 km
760-050S1-40
760-050S1-45		 155 Mbps Single Mode 1310 nm 40 km
760-051S1-20
760-051S1-25		 1.25 Gbps Single Mode 1310 nm 20km
760-071S1-C0
760-071S1-C5		 1.25 Gbps Single Mode 1550 nm 120 km
760-071S1-G0
760-071S1-G5		 1.25 Gbps Single Mode 1550 nm 200 km
760-071S1-80
760-071S1-85		 1.25 Gbps Single Mode 1550 nm 80 km
760-G57S1-20
760-G57S1-25		 1.25 Gbps Single Mode 1310 nm/1550 nm 20 km
760-G57S1-40
760-G57S1-45		 1.25 Gbps Single Mode 1310 nm/1550 nm 40 km
760-G75S1-20
760-G75S1-25		 1.25 Gbps Single Mode 1550 nm/1310 nm 20 km
760-G75S1-40
760-G75S1-45		 1.25 Gbps Single Mode 1550 nm/1310 nm 40 km
