TC3846-1

G.703/64K-over-IP Gateway

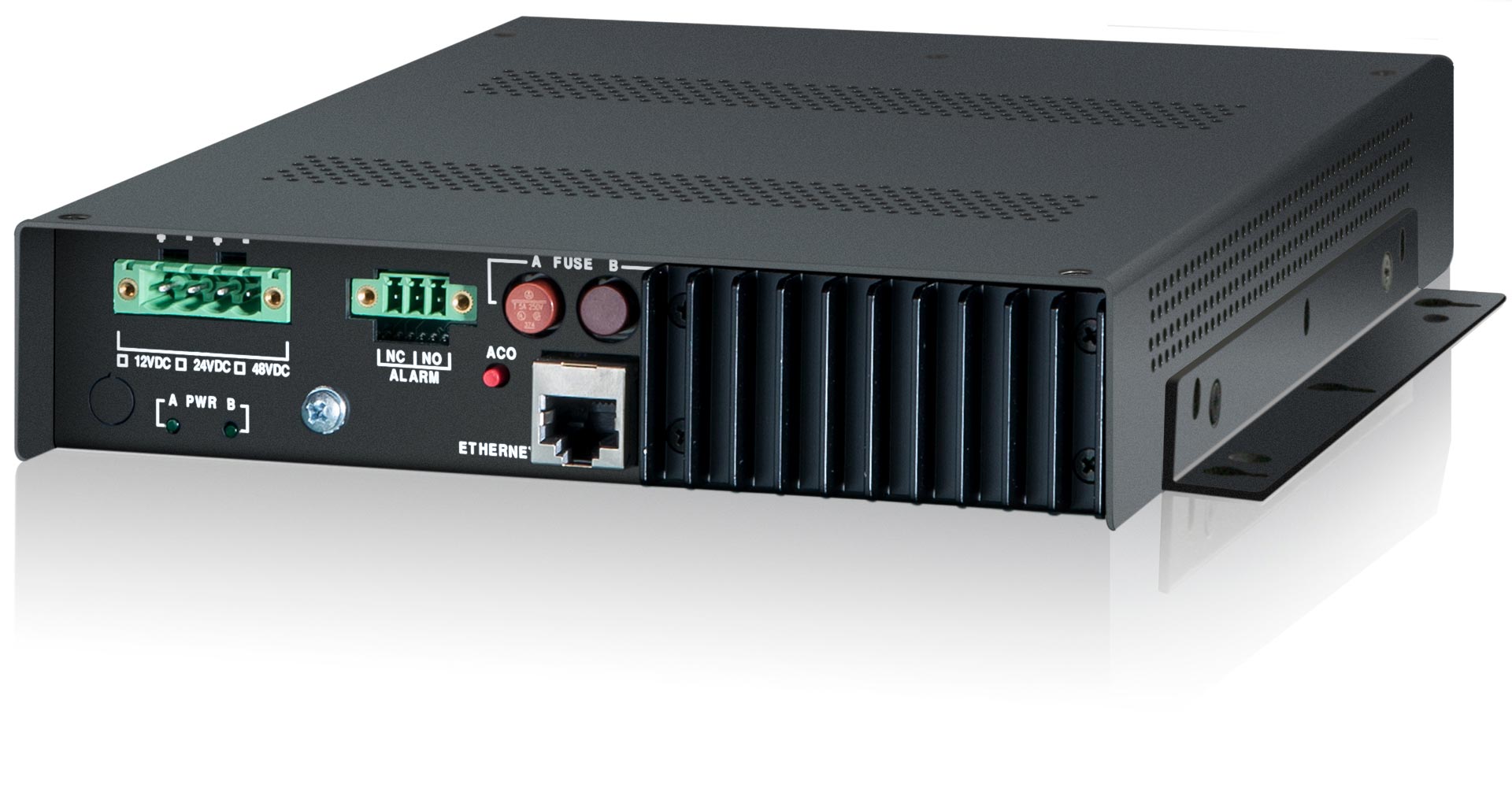

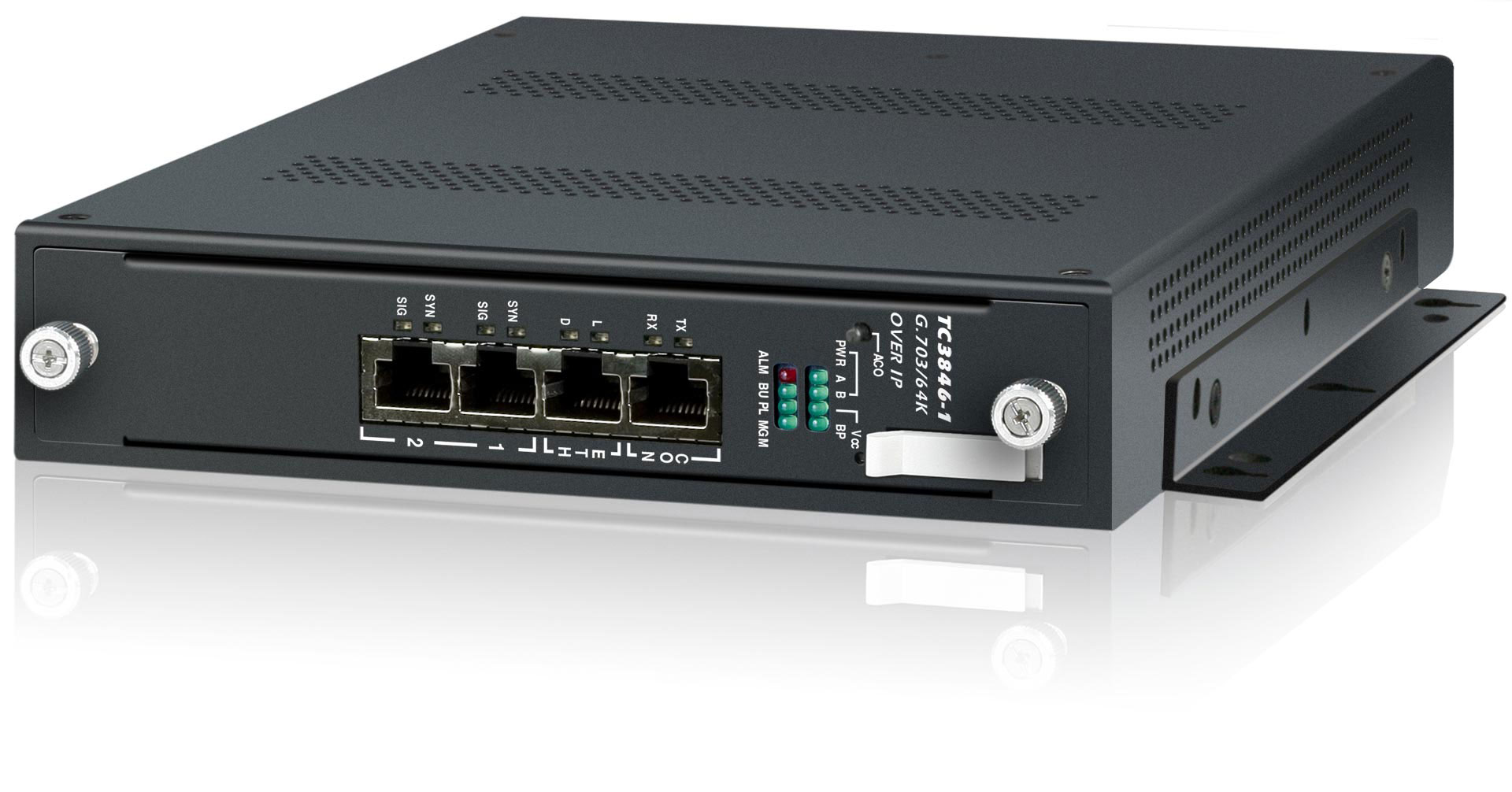

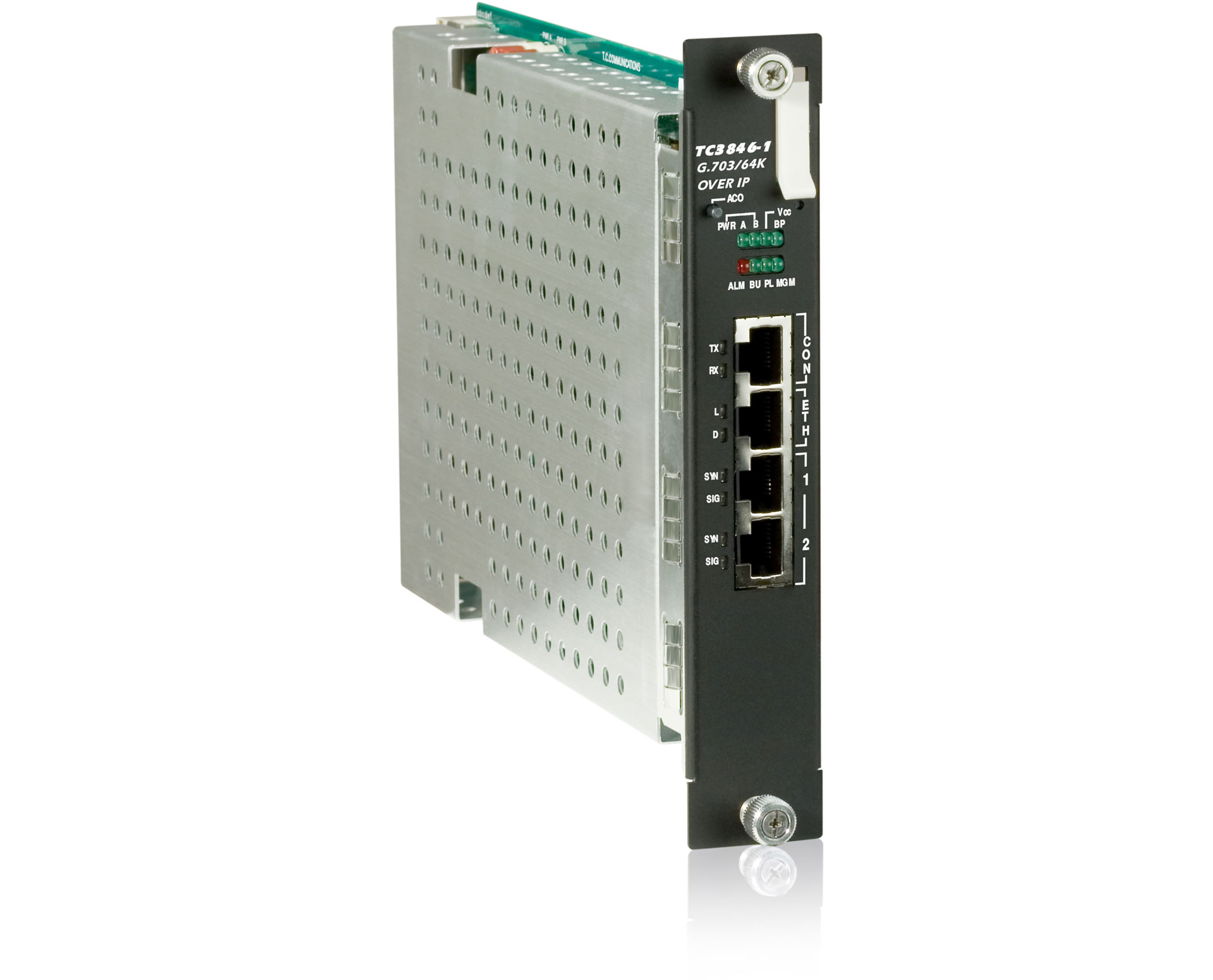

TC3846-1
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

Typical applications for the TC3846-1 include extending G.703 circuits across IP networks and extending Teleprotection relays with a G.703/64K interface over existing Layer 2 / Layer 3 Networks.

Notice: Product End of Life
(10/8/2024)
No replacement planned

The G.703/64K-over-IP Gateway Card achieves less than 5 msec. latency by adaptive clock recovery, buffering and forwarding technology. It is part of the JumboSwitch® series, a TDM over IP/Ethernet based solution designed to emulate time-division multiplexing over packet switched networks (PSN).

  • Extends G.703/64K Co-directional Interface over Ethernet
  • Less Than 5 msec. Latency, One Way
  • Point-to-Point & Point-to-MultiPoint Applications
  • VLAN and QoS Support
  • Manage Via Web, SNMP, Serial Console, Telnet
  • Built-In Temperature & Power Sensors
  • Extreme Temp (-40°C to +80ºC) Optional
  • Meets or Exceeds IEC 61850-3, IEC 60834, IEEE1613 & NEMA TS-2 Standards
  • Member of the JumboSwitch® Product Family

Applications

Notice: Product End of Life
(10/8/2024)
No replacement planned

Typical applications include extending G.703 circuits across IP networks. For example, the TC3846-1 is used to extend Teleprotection relays with a G.703/64K interface over existing Layer 2 / Layer 3 Networks.

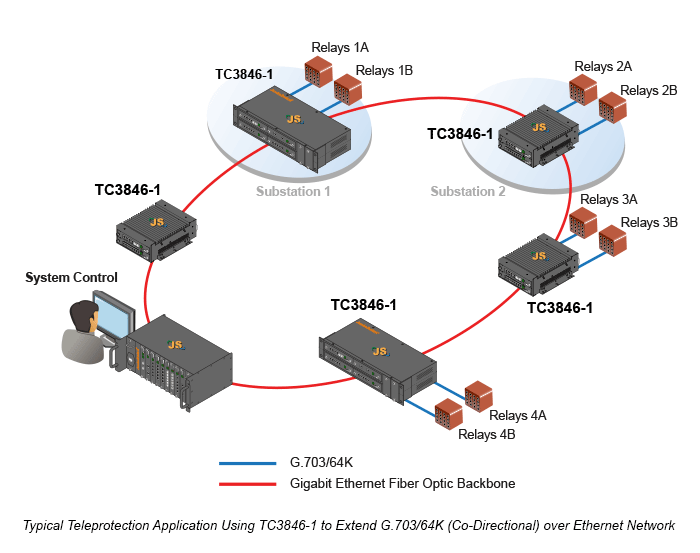

TC3846-1 - G.703 / 64K IP Gateway
Click to enlarge

Specifications

Notice: Product End of Life
(10/8/2024)
No replacement planned
Data Rates
  1. G.70364Kbps
  2. Ethernet10/100 Mbps Full Duplex
  3. Console9.6K
Connection Capacity
  1. G.703/64K2 Channels
  2. Ethernet1 Port
Electrical
  1. G.703/64K Interface
  2. Line CodeAMI
  3. StandardsG.703, G.823
  4. ConnectorRJ48F
  5. Impedance120 Ohm
  6. Ethernet Interface
  7. StandardsIEEE 802.3,802.3u, 802.1p&Q
  8. ConnectorRJ45F
  9. Console PortRJ45F
System
  1. Bit Error Rate1 in 1010 or Better
Standard Compliance
  1. CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2, IEC 60834
Diagnostic Functions
  1. Local and Remote Loopback for G.703/64K and Ethernet
LEDs
  1. Unit StatusPWR (A, B), Alarm, Vcc, BP, MGM
  2. G.703/64KStatus
  3. EthernetLink/Act
Power
  1. Standard12VDC
  2. Optional24, -48 VDC 90-260 VAC, 50/60Hz
  3. Power Consumption< 10W
Operating Temperature
  1. Hi-Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Storage
  1. Temperature-40°C to 90°C
  2. Humidity95% non-condensing
Physical (4-Channel Standalone)
  1. Height(3.15 cm) 1.24"
  2. Width(17.78 cm) 7.0"
  3. Depth(22.86 cm) 9.0"
  4. Weight(0.3 kg) 0.75 lbs
