TC2400

High Speed Self-Healing Ring Multi-Drop Fiber Optic Modem (RS-232/422/485)

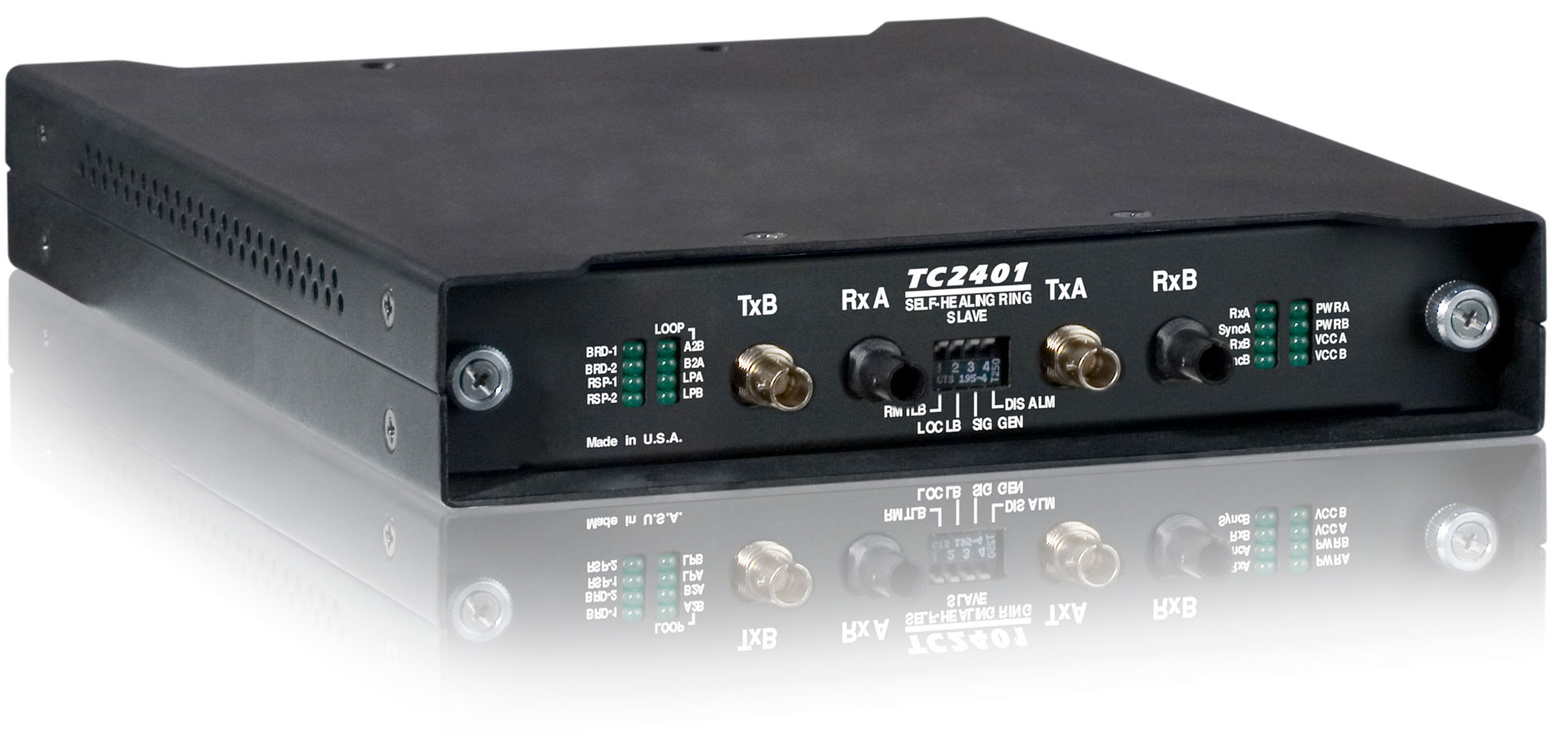

TC2400
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

Featuring data rates up to 1 Mbps, the TC2400 Multi Drop Fiber Modem brings maximum reliability to SCADA, Utility & Process Control Self Healing Ring networks.

Notice: Product End of Life
(02/01/2023) for new applications use
TC3840DR

The TC2400 High Speed Multi-Drop Modem provides 2 separate data & control channels and maximizes the reliability of communication links in Self Healing Ring fiber optic networks. It is often used to interconnect remote RS232, RS422 or RS-485 devices.

  • Async Data Rates to 1 Mbps
  • Sophisticated Tx/Rx Upstream, Downstream Fault Detection
  • Multimode & Single Mode (850/1300/1550nm)
  • Distances up to 100km
  • Single or Dual RS-232, RS-422 or RS-485 Ports
  • Anti-Streaming (Anti-Jabber)
  • Built-In Power Redundancy
  • Local Dry Contact Alarm Relay
  • Rackmount or Standalone

Applications

Notice: Product End of Life
(02/01/2023) for new applications use
TC3840DR

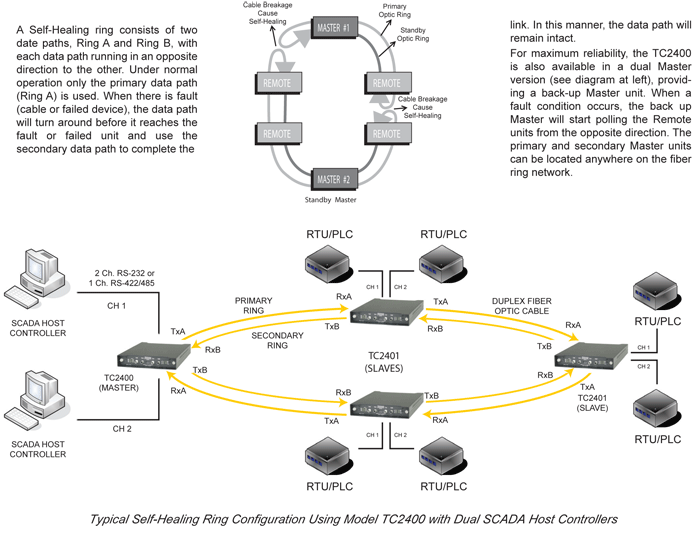

Renowned for its high reliability, the TC2400 High Speed Multi-Drop Modem is ideal for Self-Healing Ring communication links in SCADA, Traffic Control, Industrial Process Control and security networks. It is frequently used to interconnect Remote Terminal Units (RTUs) or Programmable Logic Controllers (PLCs) in Utility substation SCADA Networks.

TC2400 - 'High Speed' Self-Healing Multi-Drop Fiber Optic Modem
Click to enlarge

Specifications

Notice: Product End of Life
(02/01/2023) for new applications use
TC3840DR
Data Rates
  1. Async RS-232up to 120 Kbps
  2. Async RS-422/485 "AUX1" portup to 1 Mbps
  3. Async RS-422/485 "AUX2" portup to 256 Kbps
Optical
  1. TransmitterLED/ELED/LASER*
  2. ReceiverPIN Diode
  3. Wavelength850/1300nm MM, 1300/1550nm SM
  4. Fiber Optic ConnectorsST {trademark of AT&T}; Optional FC
  5. Loss Budgets * - 850/1300/1550nm
  6. Multimode @ 62.5/125µm15dB
  7. Single Mode @ 9/125µm20dB

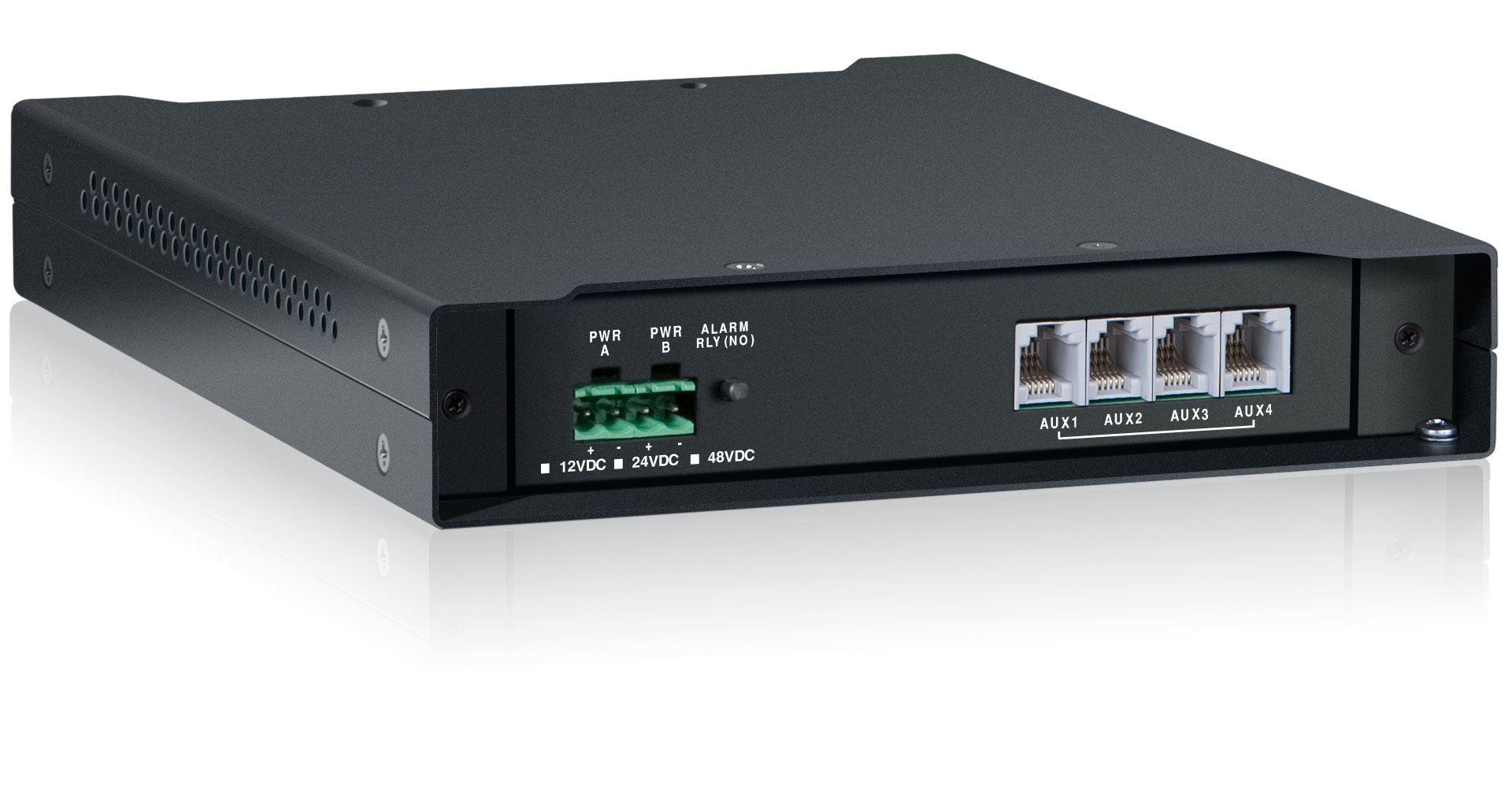

Electrical
  1. ConnectorRJ11 Female
  2. Interface(DCE or DTE) RS-232, RS-422, or RS-485 (2 or 4-wire)
Diagnostic Functions
  1. Local & Remote LoopbackYes
  2. Signal Generator, Disable AlarmYes
System
  1. Bit Error Rate1 in 109 or Better
Visual Indicators
  1. BRD-1, BRD-2, RSP-1, RSP-2, RxA, RxB, Sync-A, Sync-BYes
  2. Vcc-A, Vcc-B, A2B, B2A, LPA, LPB, PWRA, PWRBYes
Alarm
  1. Dry ContactNormal OPEN
Power
  1. Standard12VDC @500mA
  2. Optional24VDC, -48VDC, or 115/230VAC w/ Power Cube
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp 1 (optional)-20°C to 70°C
  3. Hi-Temp 2 (optional)-40°C to 70°C
  4. Storage-40°C to 90°C
  5. Humidity95% non-condensing
Physical (Standalone Unit)
  1. Height(3.53 cm) 1.4"
  2. Width(18.13 cm) 7.1"
  3. Depth(24.80 cm) 9.8"
  4. Weight(544 gm) 1.2 lbs
* Contact factory for higher requirements
