TC1504

Synchronous RS422 / 449 Fiber Optic Modem (Ext. Clock)

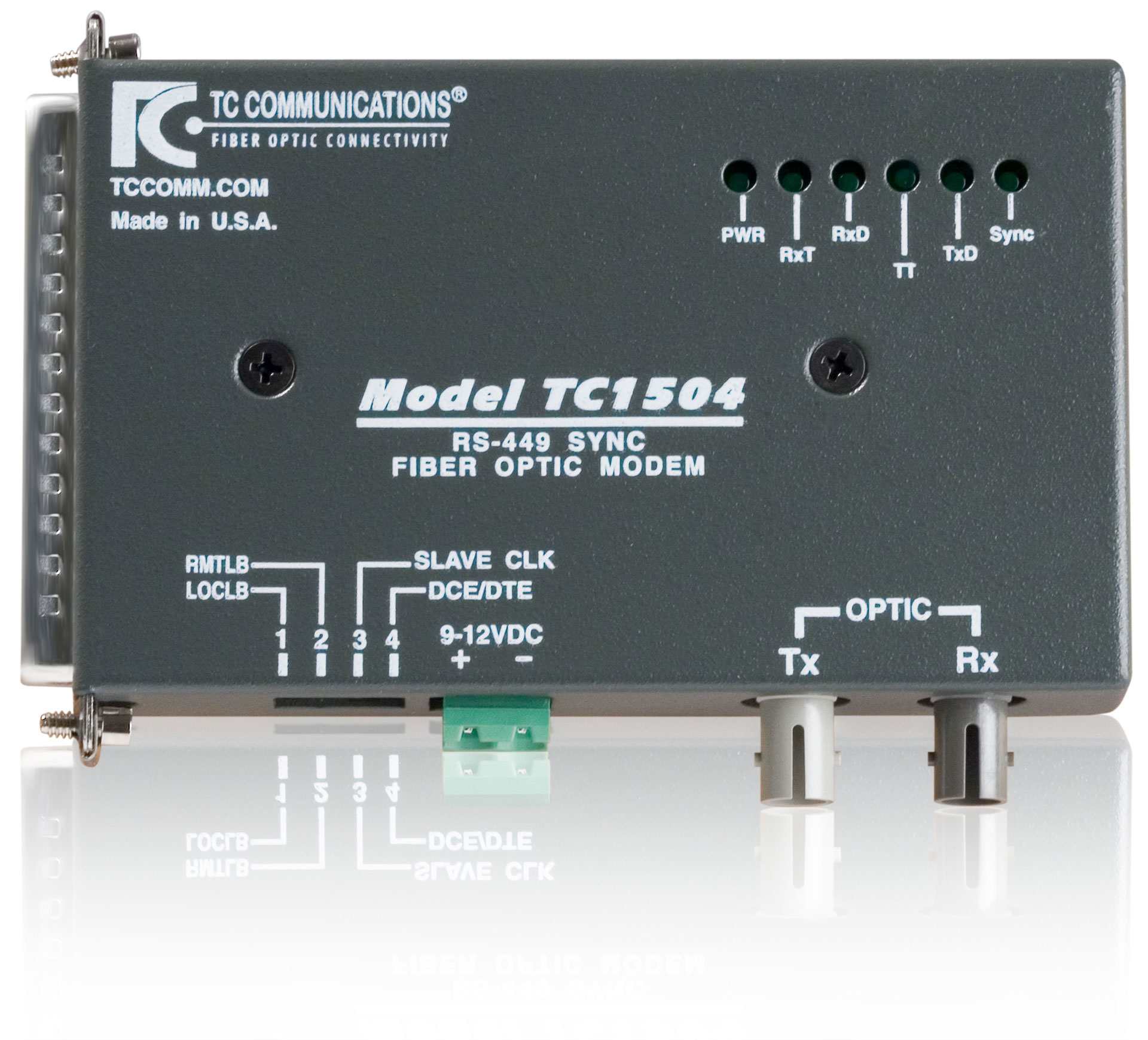

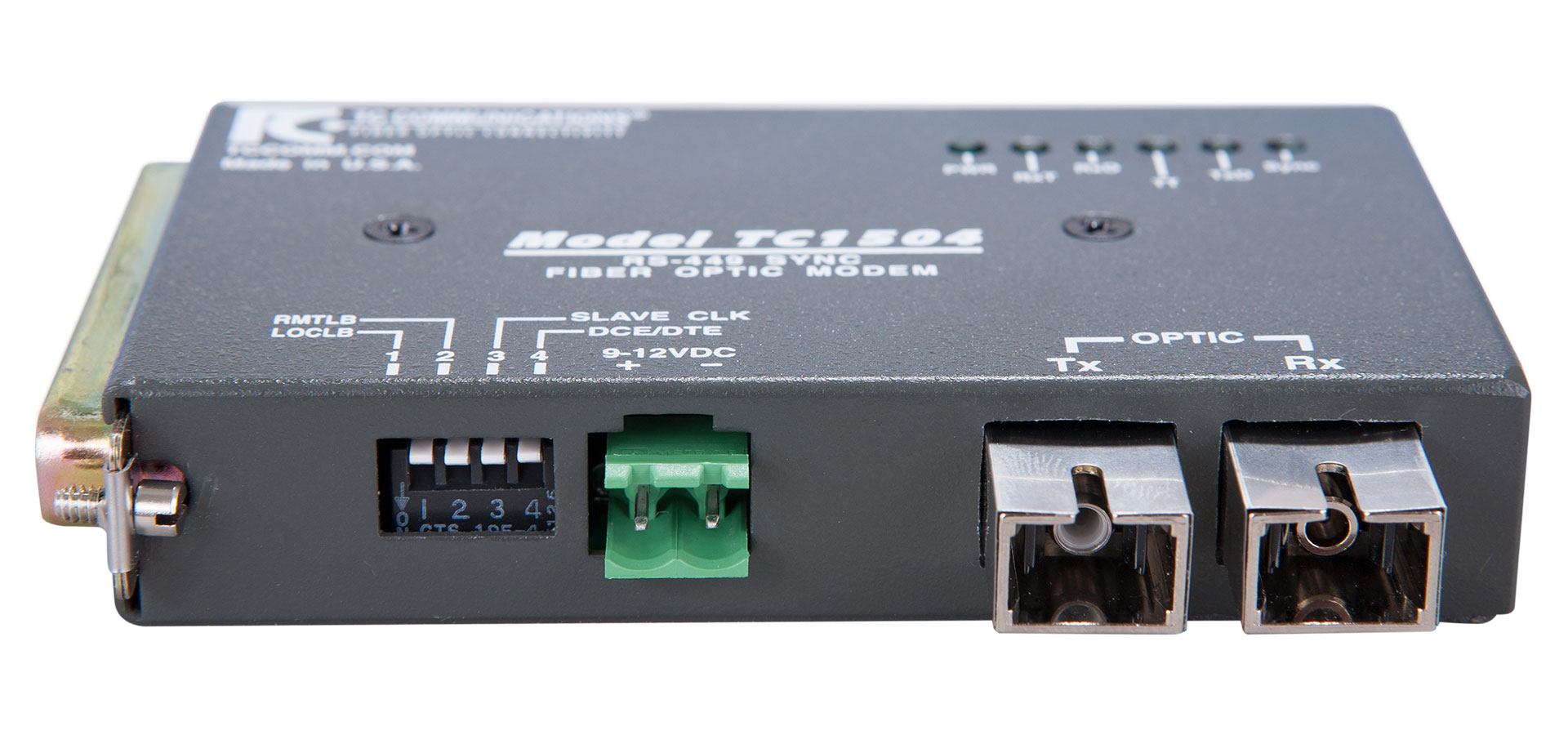

TC1504
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

Intended as a point-to-point link for high speed synchronous data devices, the TC1504 Fiber Modem is an economical fiber optic network connectivity solution.

Notice: Product End of Life
(03/25/2022) for new applications use TC1710

Transparent to the data and DCE/DTE switchable, the TC1504 combines external clocking and data into an optical composite signal for transmission between local and remote units. It supports all types and sizes of multimode (850nm/1300nm) or single mode (1300/1500nm) fiber optic cable. An extended temperature version (-20°C to 70°C) is optional.

  • Sync Data Rates up to 2.048 Mbps
  • Distances up to 80km
  • Multimode or Single Mode (850/1300/1550nm)
  • DTE/DCE Selectable
  • Six Diagnostic LEDs
  • Slave Clock
  • Local & Remote Loopback Functions
  • Hardened Temperature Version (optional)

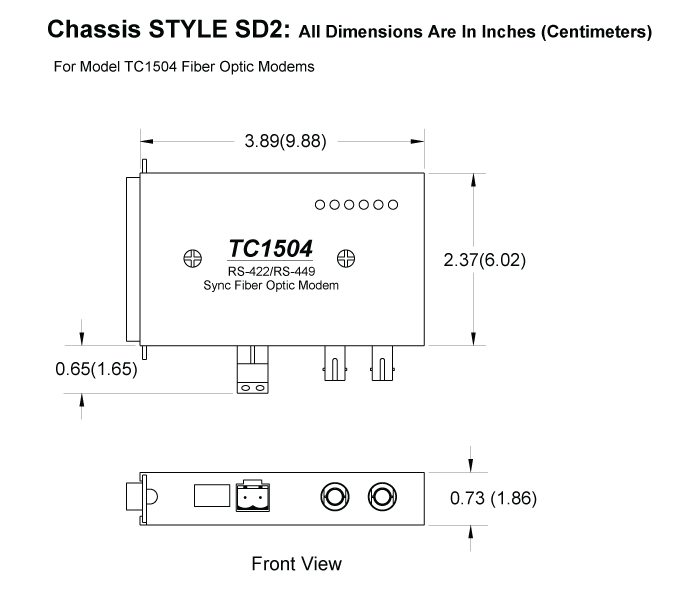

View Dimensions

Applications

Notice: Product End of Life
(03/25/2022) for new applications use TC1710
The TC1504 is typically used to link high speed synchronous data devices. It is frequently used in harsh environments because of its fiber optic benefits. This makes it an efficient, low cost solution to electrical/radio frequency interference, ground loops and lightning problems.

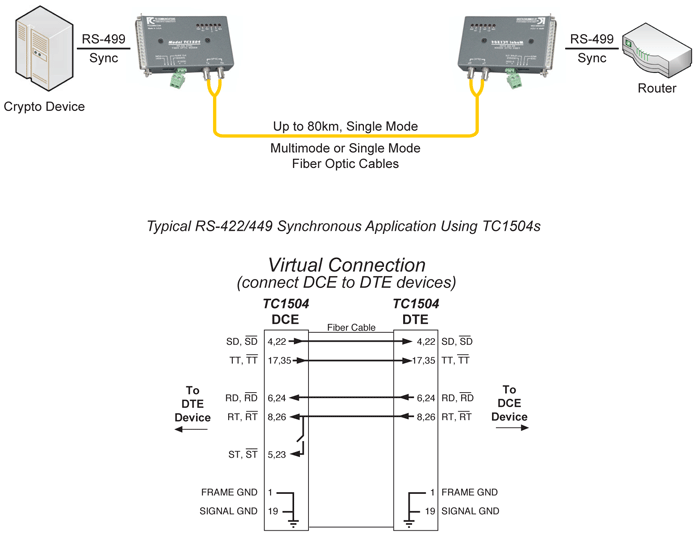

TC1504 - Sync RS-422/449 Fiber Optic Modem
Click to enlarge

Specifications

Notice: Product End of Life
(03/25/2022) for new applications use TC1710
Data Rates
  1. Sync DC (0Hz)up to 2.048 Mbps*
Optical
  1. TransmitterLED/ELED
  2. ReceiverPIN Diode
  3. Wavelength850/1300nm MM, 1300/1550nm SM
  4. Fiber Optic ConnectorsST, Optional FC
  5. Loss Budgets * - 850/1300/1550nm
  6. Multimode @62.5/125 m15dB
  7. Single Mode @9/125 m20dB
Electrical
  1. ConnectorDB37 Male
  2. Interface (DCE/DTE Switchable)RS-422/449
System
  1. Bit Error Rate1 in 109 or Better
Visual Indicators
  1. LEDsPWR, RxT, RxD, TT, TxD, Sync
Power
  1. Standard12VDC @200mA
  2. Optional115/230VAC
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Storage-40°C to 90°C
  4. Humidity95% non-condensing
Physical (Standalone Unit)
  1. Height(2.0 cm) 0.72"
  2. Width(10.4 cm) 3.89"
  3. Depth(7.5 cm) 2.36"
  4. Weight(170 gm) 5.46 oz
* Contact factory for higher requirements
