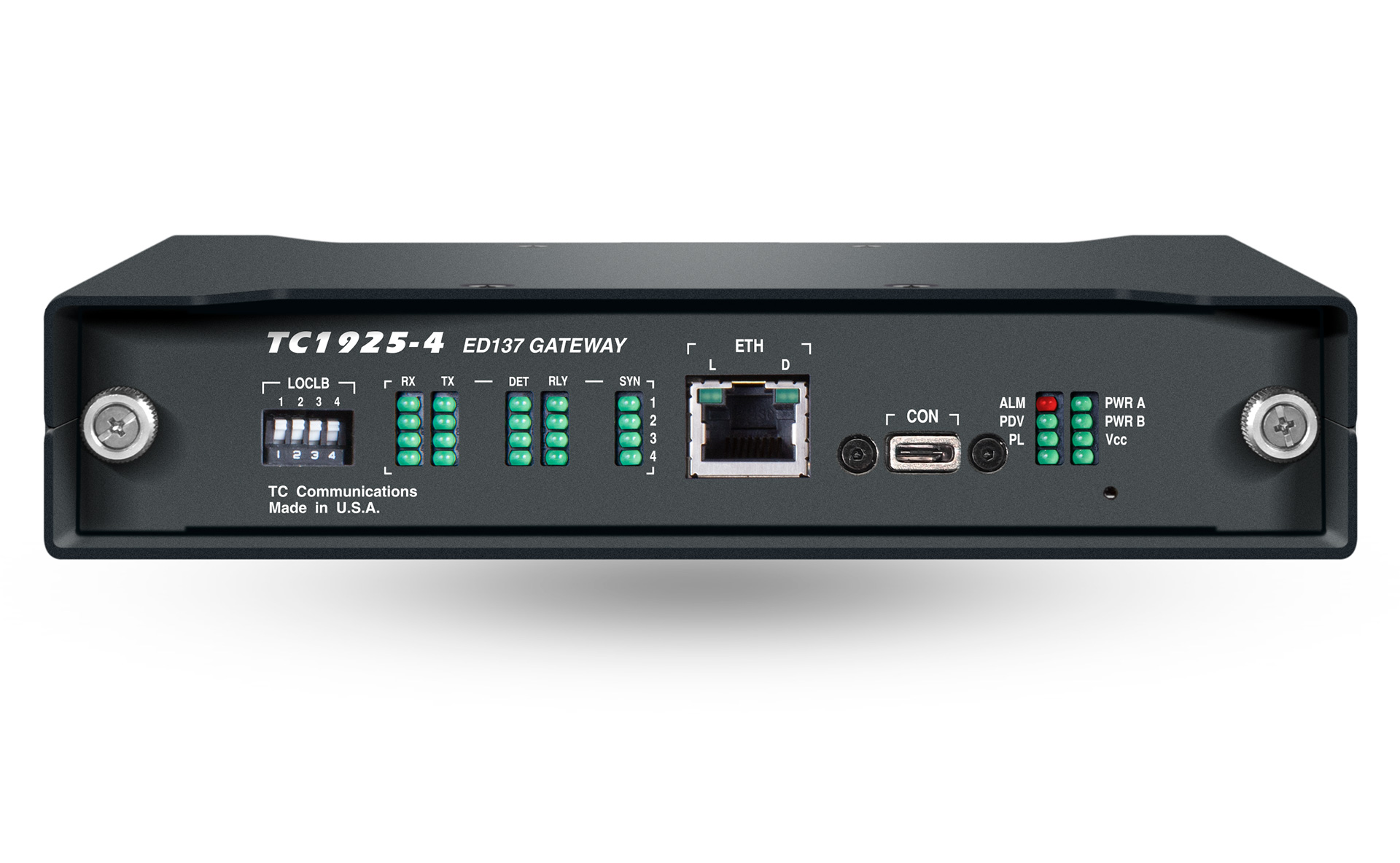

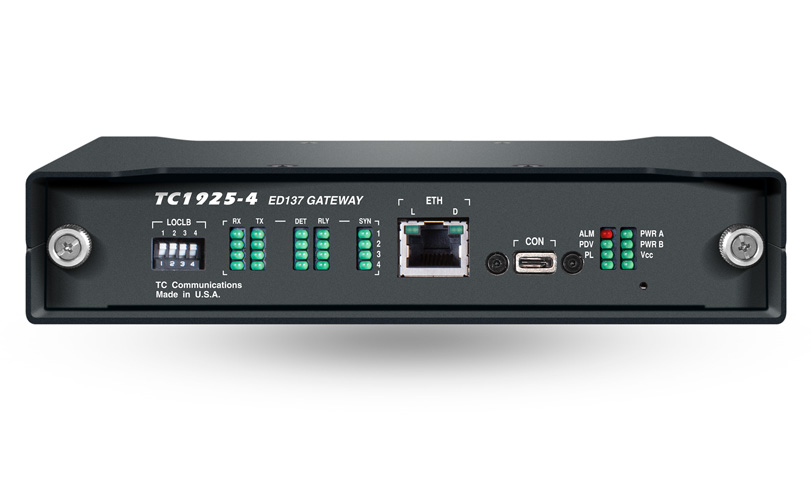

TC1925
Radio over IP ED-137 Gateway
Features
The TC1925 is a Radio over IP Gateway that converts 4-wire E&M to EUROCAE-standard ED-137. It is economical, simple to install and comes standard with built-in power redundancy.
- 4-channel ED-137 compatible gateway
- 2-Wire or 4-Wire E&M
- Dry contact I/O with Isolated Ground
- EUROCAE ED137 Standard
- G.711 u/A-Law, G.729A compatible
- Troubleshooting at a glance, full LED based diagnostic and status monitoring
- Built-in Power Redundancy
- Rack Mount or Stand Alone

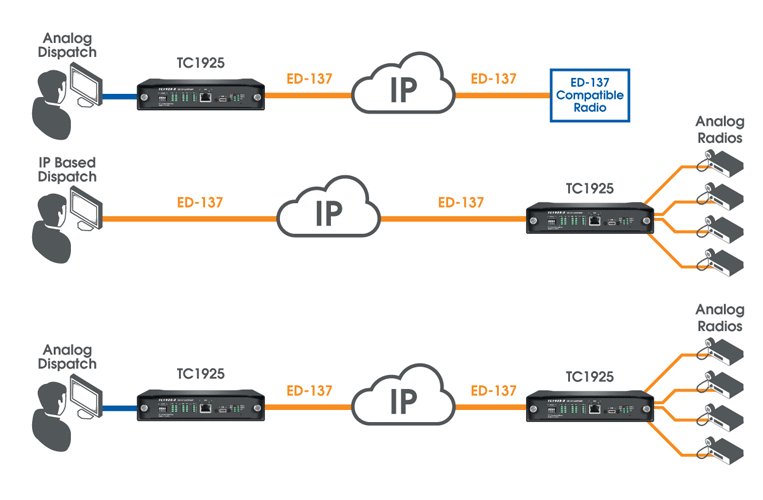

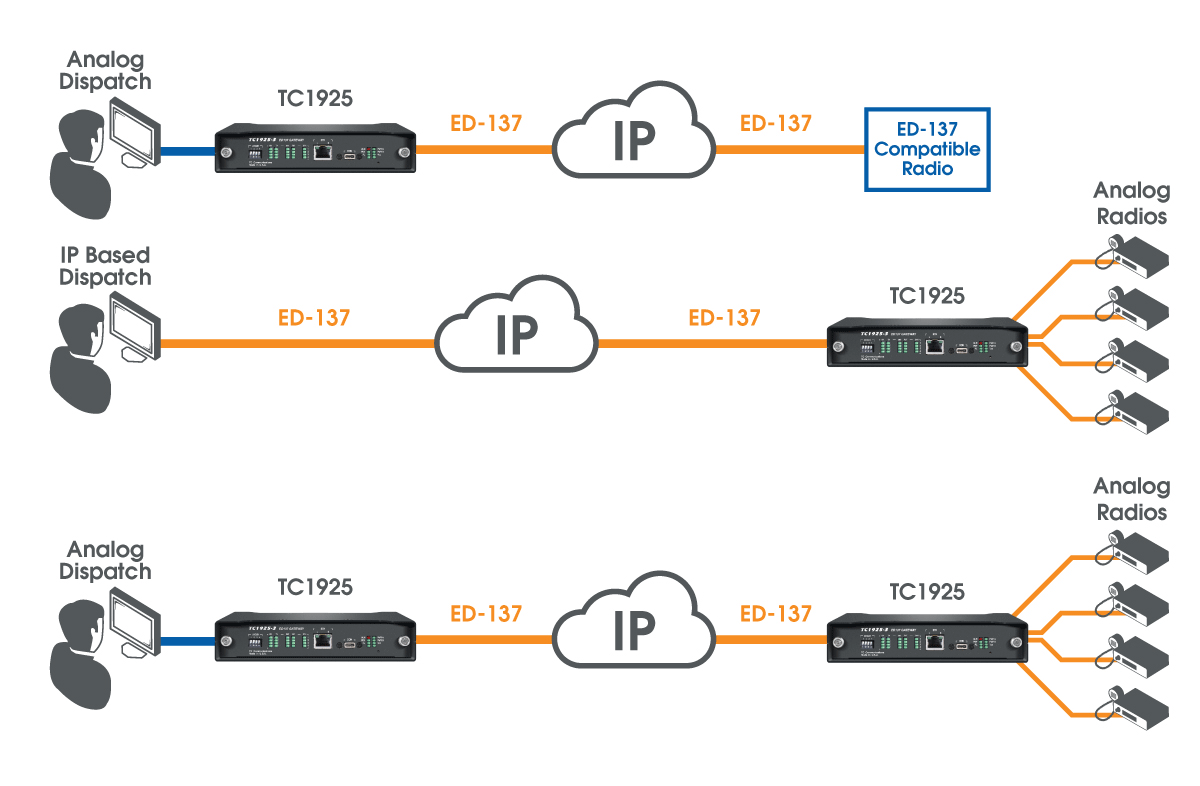

Applications
A flexible gateway providing compatibility and interoperability with ED-137 compatible systems and devices.
The TC1925 allows legacy analog devices to be connected, ensuring seamless migration of analog devices to a fully compatible ED-137 environment.
Up to 4 channels of 4 wire or 2 wire E&M can be used with simple setup and TC Communications unmatched reliability.
Specifications

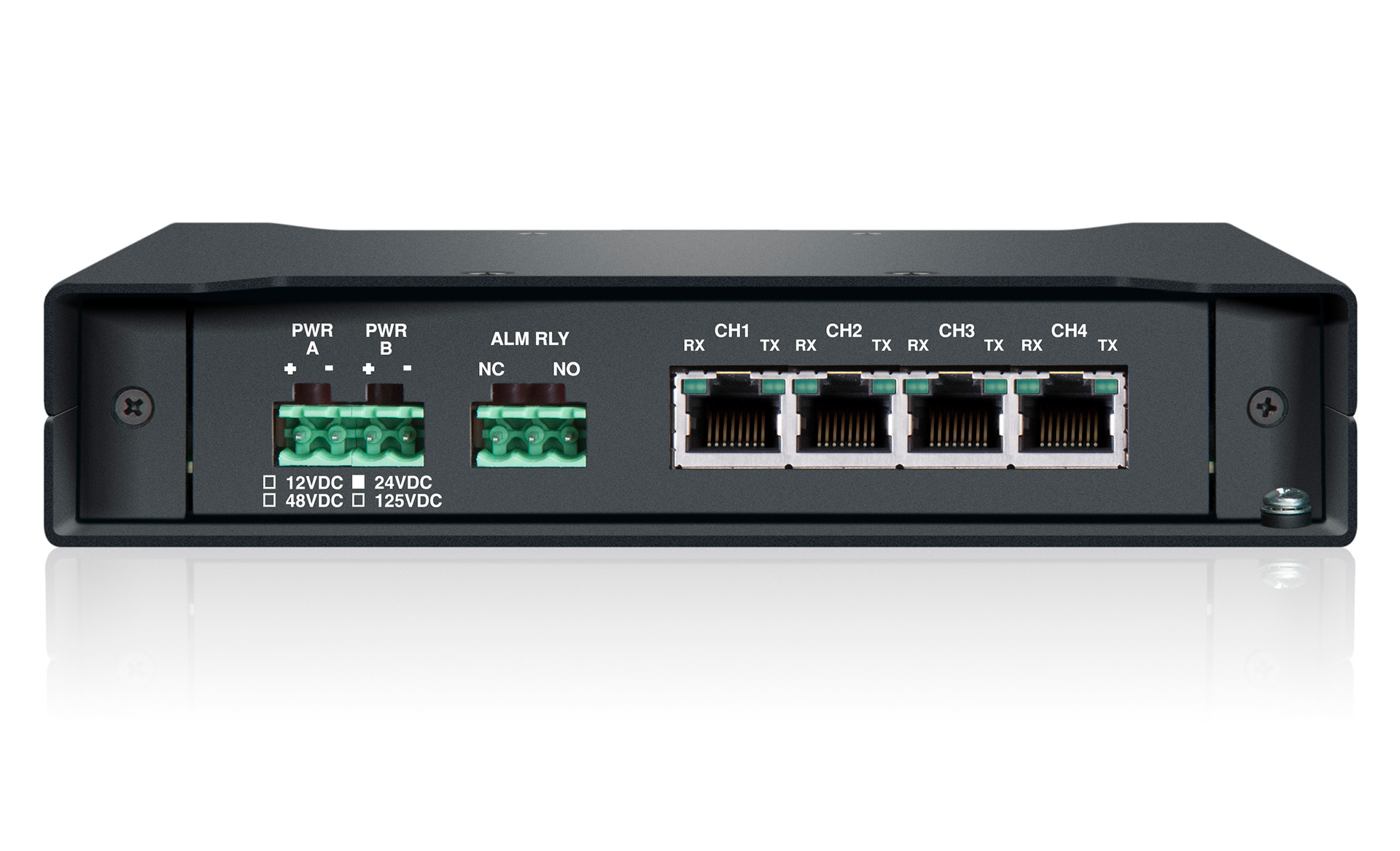

Connection Capacity
- 600 Ohm (2/4 Wire)4 Ports
- Dry Contact4 Ports
- GigabitEthernet1 Port
- Analog Interface
- Impedance600 Ohm
- Max Input3Vp-p
- Frequency band300 to 3400Hz
- Output signal level-36.5 to +4.5 dBm
- ConnectorRJ45
- Dry Contact Interface
- Normally openStandard
- Normally closeOptional
- Detector
- Max input voltage9V
- Relay
- Max Load Voltage60V
- Continuous load current0.55A
- Peak load current1.2A
- Max On Resistance2.5 Ohm
- Output Capacitance150pF
- ConnectorRJ45
- Ethernet Interface
- StandardsIEEE 802.3
- ConnectorRJ45
- Serial Consol Interface
- ConnectorUSB-C
- SystemPWR A, PWR B, Vcc, ALM, PDV, PL
- AnalogTX, RX, SYN
- Dry ContactRLY, DET
- EthernetL, D
- Dry ContactNormally Open/Cosed
- Standard12VDC @200mA
- Optional24VDC, -48VDC, 125VDC, or 115/230VAC with power cube
- Power Consumption<10W
- Operating-10°C to 50°C
- Hi-Temp(optional)-20°C to 70°C
- Extreme-40°C to 80°C
- Storage-40°C to 90°C
- Humidity95% non-condensing
- Height(3.18cm) 1.25"
- Width(15.06 cm) 5.93"
- Depth(21.84 cm) 8.60"
