TC3004

Multimode to Single Mode Converter/Repeater (& vice versa) (OC-12 rate up to 622 Mbps)

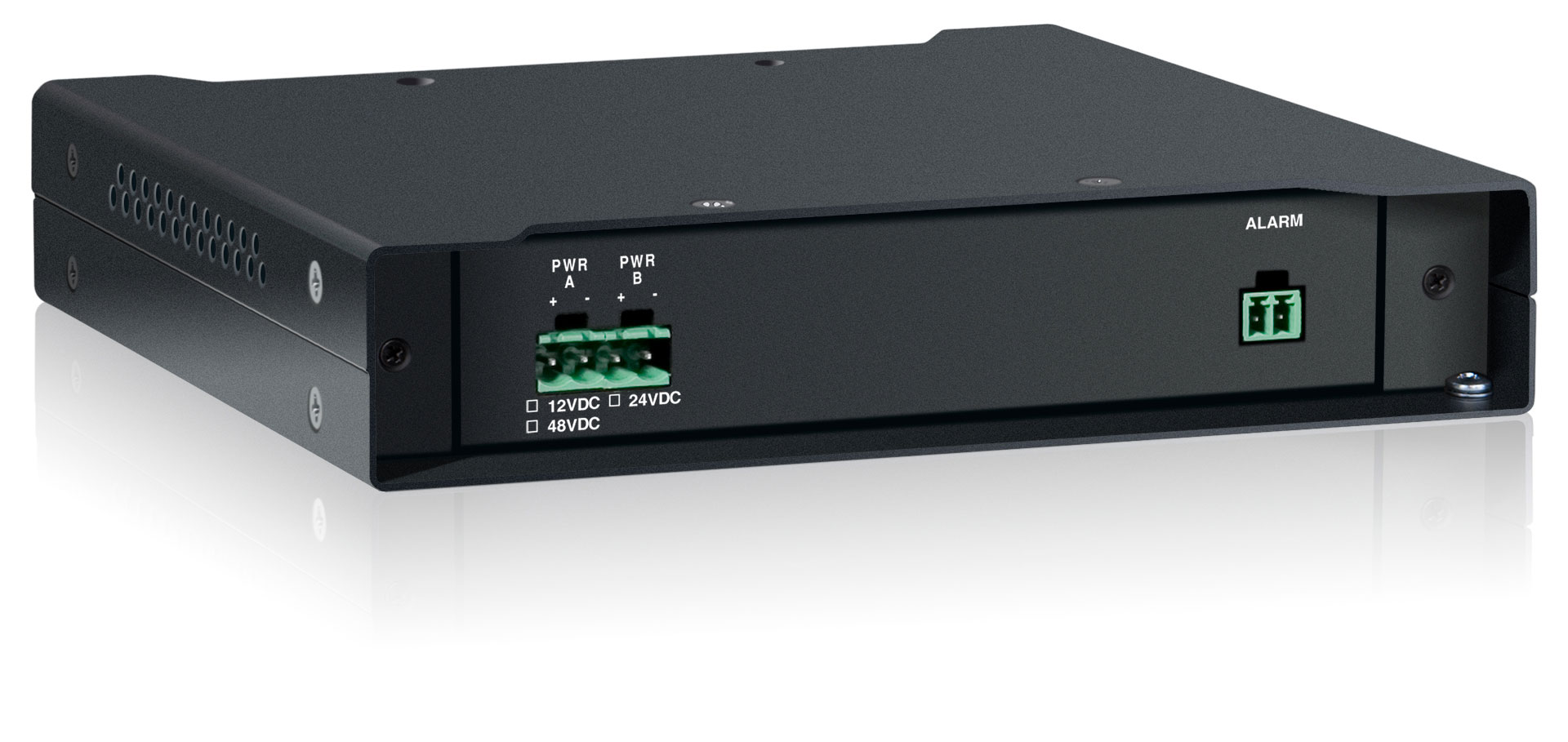

TC3004
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC3004 Fiber Optic Mode Converter converts multimode to single mode, or vice versa, in a variety of LAN and Telephony communication network environments. This conversion is done to cross-connect different fiber types, regenerate optical signals and/or extend transmission distances.

  • Converts Multimode to Single Mode (and vice versa)
  • OC-12 Rates (up to 622 Mbps)
  • Distances up to 100km
  • Repeats Multimode and Single Mode Signals
  • Local & Remote Loopback
  • Local Dry Contact Alarm Relay
  • 8 Diagnostic LED Indicators
  • Built-In Redundant Power Supply
  • Two-way Single Fiber Communication (option, single mode)
  • Test Signal Generator (optional)

Applications

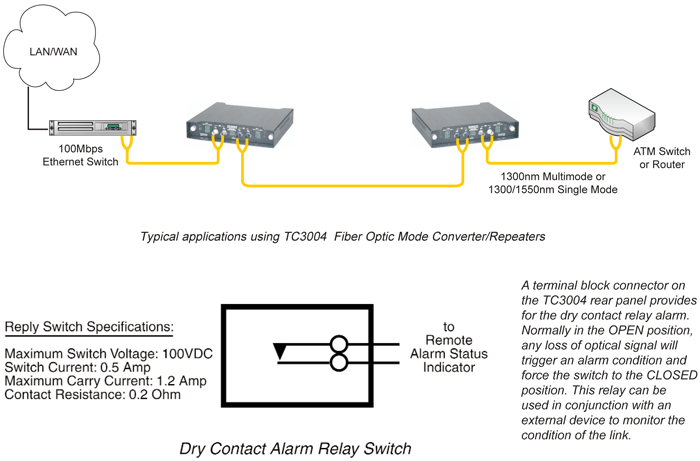

The MAXI Mode Converter is used to convert multimode to single mode, or vice versa, in a variety of LAN and Telephony communication environments including PABX, Ethernet, Token Ring, FDDI, ATM & SONET (OC1 & OC3). This conversion is done to cross-connect different fiber types, regenerate optical signals and/or extend transmission distances.

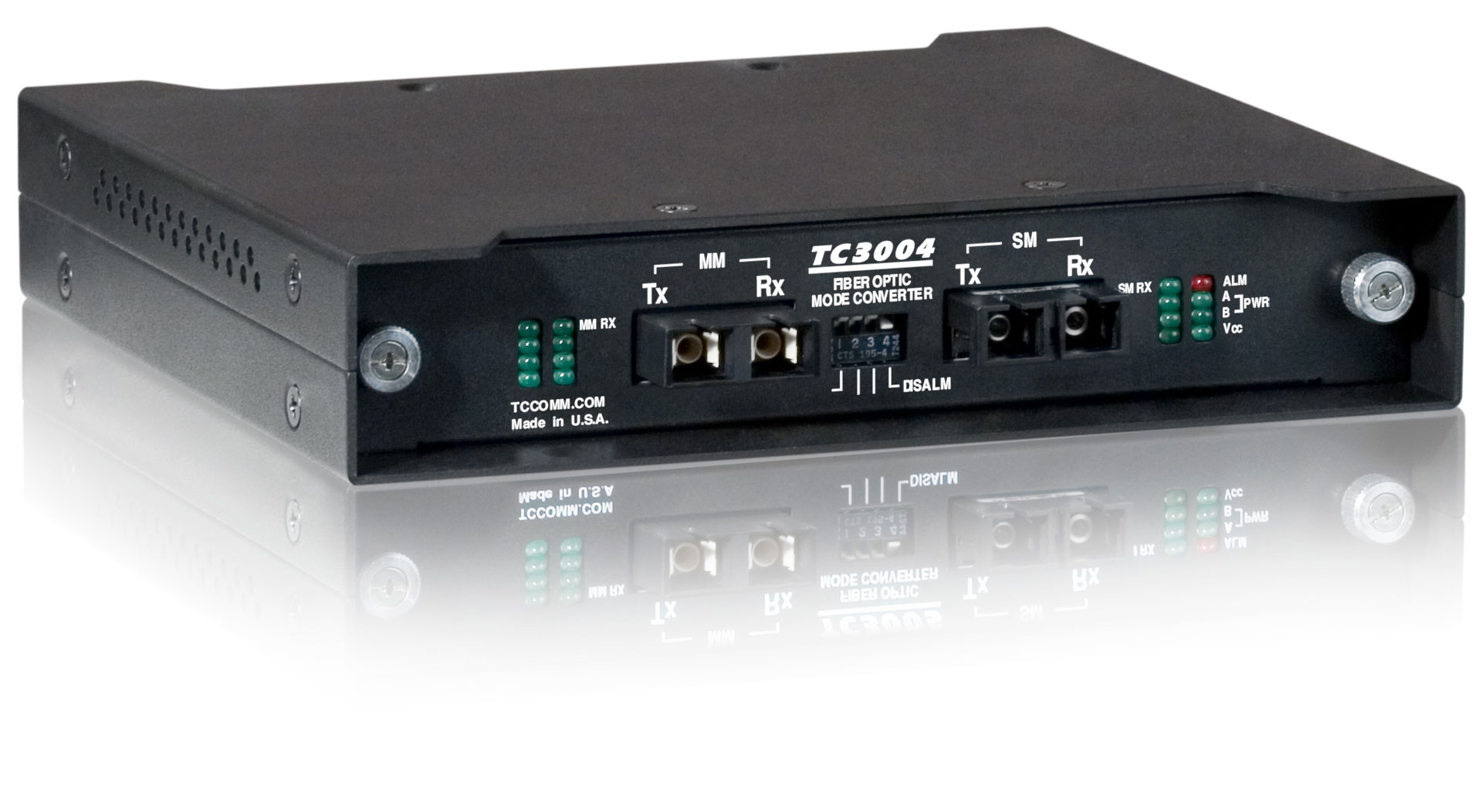

TC3004 - High Speed Mode Converter/Repeater (up to 622 Mbps)
Click to enlarge

Specifications

Data Rates
  1. OC-12 Ratesup to 622 Mbps
Optical
  1. TransmitterELED/LASER
  2. ReceiverPIN Diode
  3. Wavelength1300nm MM, 1300/1550nm SM
  4. Fiber Optic Connectors
  5. Single ModeSC, ST, FC
  6. MultimodeSC, ST
  7. Loss Budgets *
  8. LED16dB 1300nm
  9. Multimode @62.5/125 nm
  10. ELED16dB 1300/1550nm
  11. Single Mode @9/125 nm
  12. LASER25dB 1300nm
  13. Single Mode @9/125 nm
  14. HI-PWR LASER4dB 1300/1550nm
  15. Single Mode @9/125 nm
System
  1. Bit Error Rate1 in 1010 or Better
Visual Indicators
  1. PWRA, PWRB, VCCA, VCCBYes
  2. MM RX, MM TX, SM RX, SM TXYes
Alarm
  1. Dry ContactNormal OPEN
Power
  1. Standard12VDC @800mA (max)
  2. Optional24VDC, -48VDC, or 115/230VAC with Power Cube
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Storage-40°C to 90°C
  4. Humidity95% non-condensing
Physical (Rackmount Unit)
  1. Height(3.53 cm) 1.39"
  2. Width(18.13 cm) 7.14"
  3. Depth(16.59 cm) 6.53"
  4. Weight(512 gm) 1.5 lbs

Ordering

For more information

For assistance with this product or to request a user manual please contact Technical Support.
