TC8926

8 or 16 Channel Hoot-n-holler Bridge

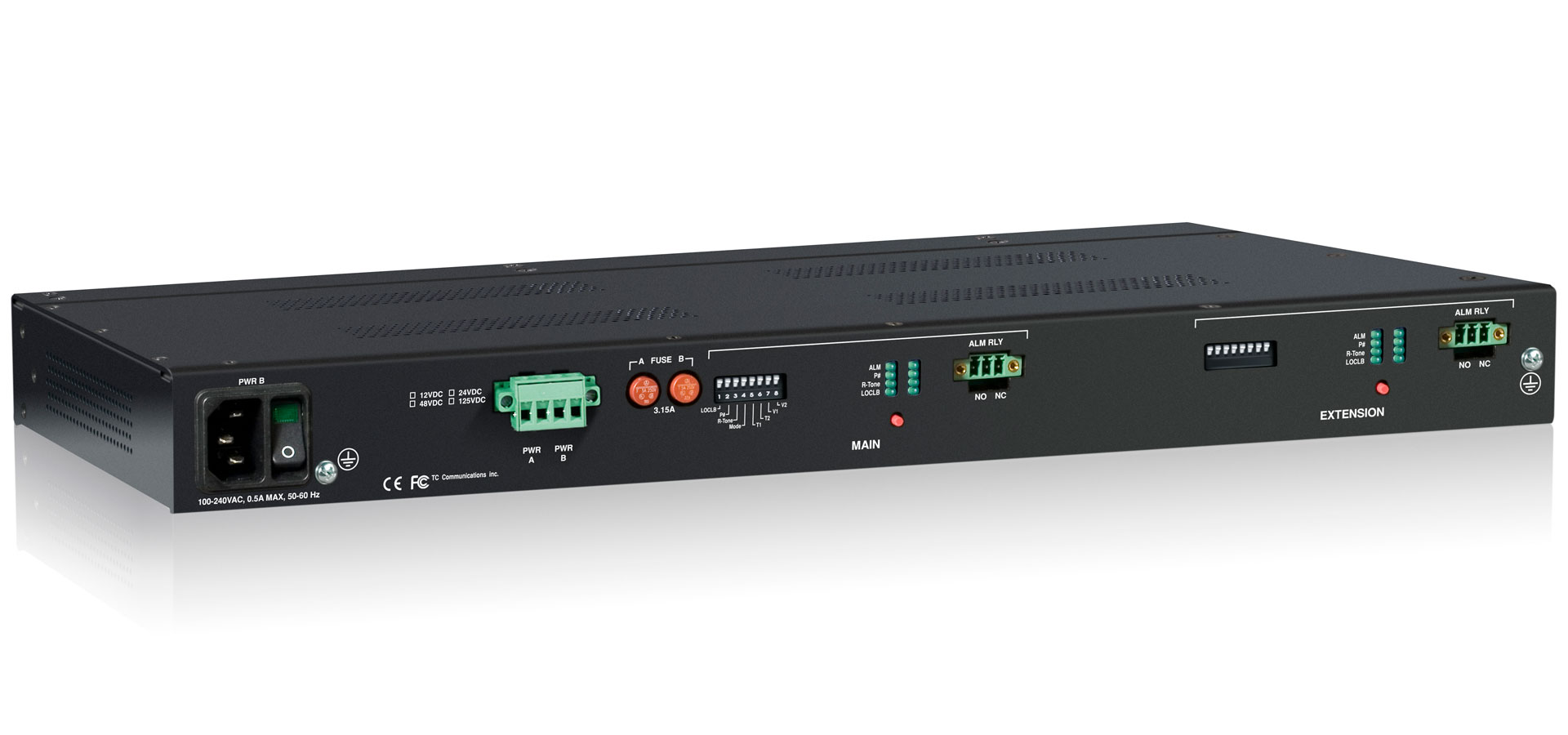

TC8926
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC8926 provides bridging of 4-wire analog audio, forming a traditional Hoot N Holler system. Connected to hoot phones, it bridges the audio and forms a party line. Whenever a handset unmuted, the caller can speak and broadcast to everyone in the party.

  • 8 ch. or 16 ch. Hoot-n-holler Bridge
  • Modular Design with 8 Channels per Module
  • 64K Full Bandwidth Voice Transport
  • Passes All Tones for FSK, EIA Tone Control/Remote and Paging
  • Supports Pilot/Guard Tone Operation
  • Optional Power Redundancy
  • 1U or 4U Rack Mount or 1S Standalone Chassis
  • 12VDC, 24VDC, -48VDC, 125VDC
  • LEDs for Analog Volume, Alarm Status, Channel Release Tone, and Loopback

TC8926 is available in two configurations:

  • 8-channel 4-wire analog
  • 16-channel 4-wire analog

The TC8926 provides bridging of 4-wire analog audio, forming a traditional Hoot N Holler system.

Applications

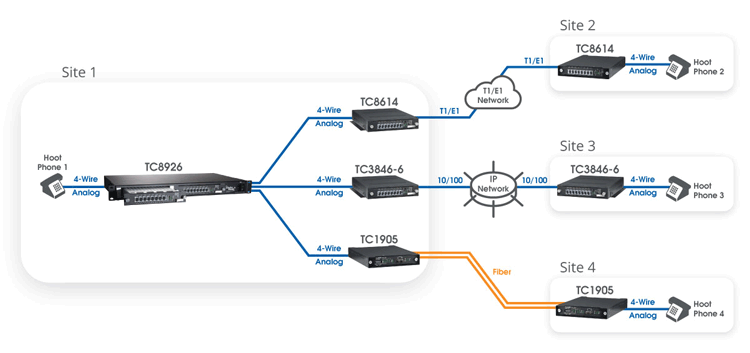

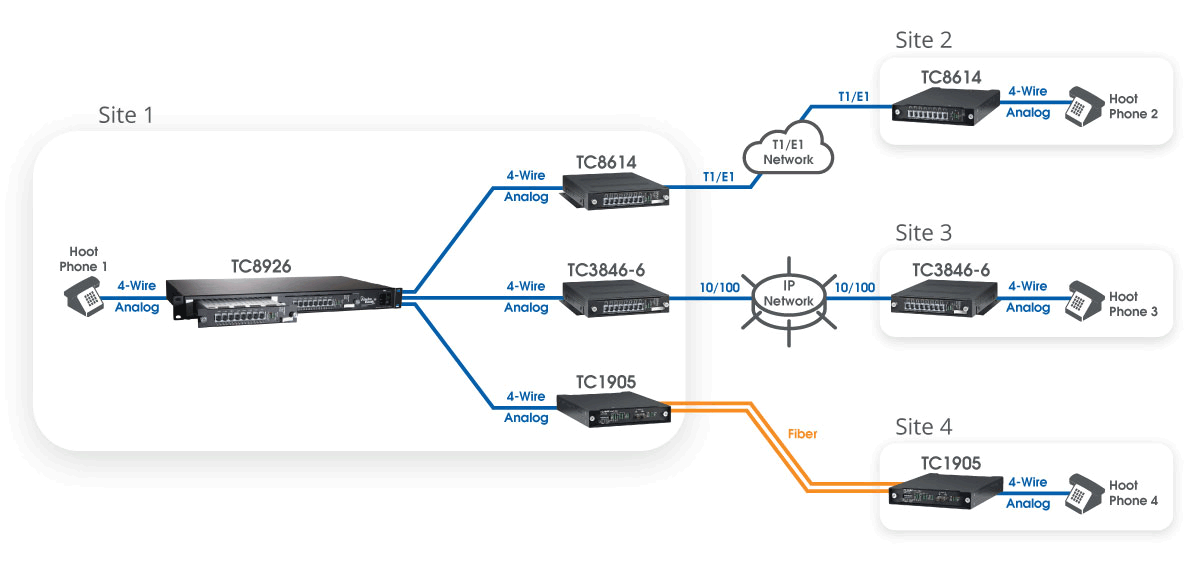

The TC8926 provides bridging of 4-wire analog audio, forming a traditional Hoot N Holler system.

A Hoot-n-holler is a telecommunication system with a permanent open (always-on) circuit between 2+ parties. It allows any user to speak at any time and be heard over the system immediately. This is also known as a “squawk box.” Connected to hoot phones, the TC8926 bridges the audio and forms a party line. Whenever a handset unmuted, the caller can speak and broadcast to everyone in the party.

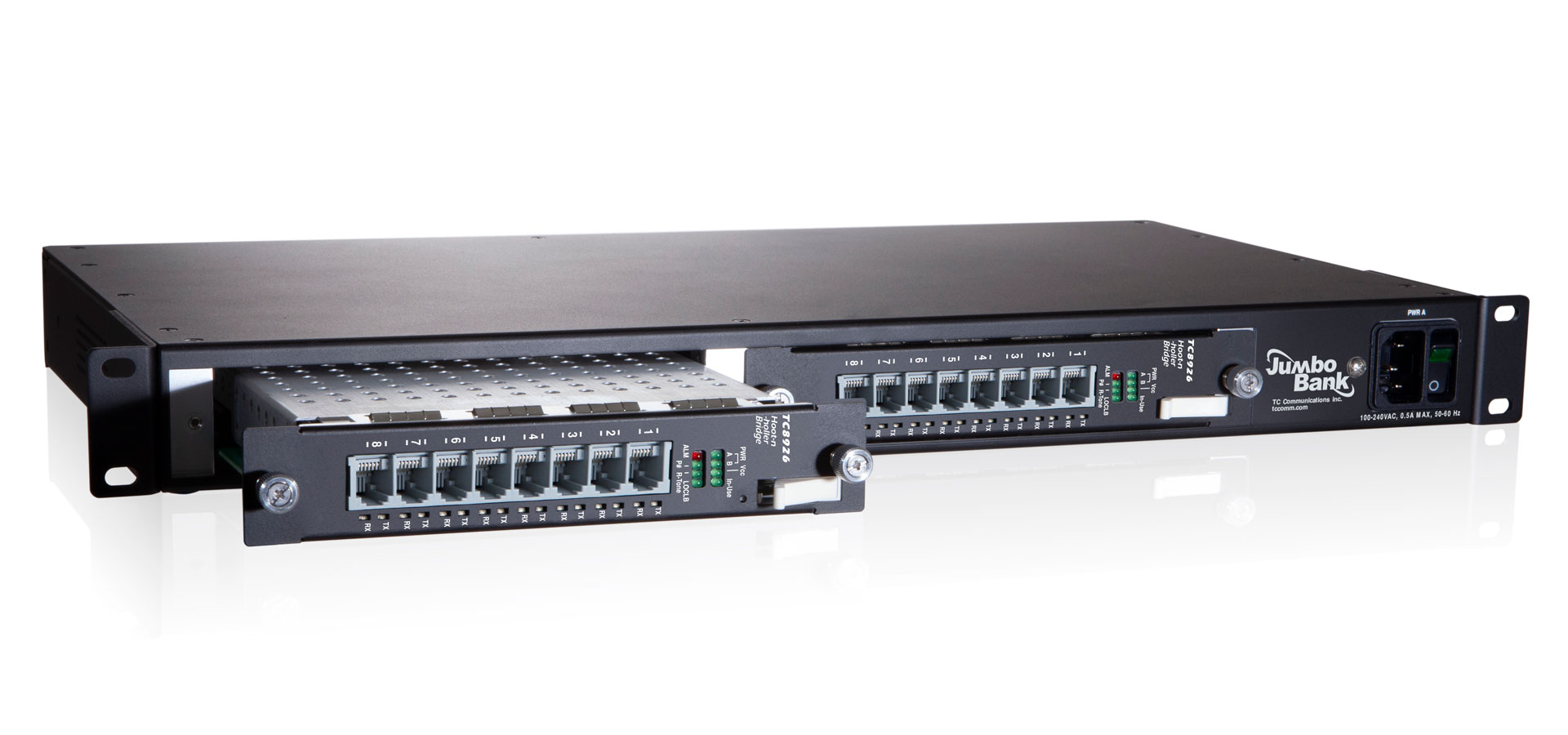

TC8926 - Hoot-n-holler Bridge
Click to enlarge

Specifications

Connection Capacity (per interface card)
  1. 600 Ohm (4-wire)8 ports
Electrical
  1. 600 Ohm Analog Interface
  2. Impedance600 Ohm
  3. Max Input3Vp-p
  4. Frequency band300 to 3400Hz
Visual Indicators
  1. Channel StatusTX, RX
  2. SystemPWR A, PWR B, Vcc, ALM
  3. PagingP#, R-Tone
Alarm
  1. Dry ContactNormalOpen/Closed
Power
  1. Standard12VDC @ 500mA
  2. Optional24VDC, -48VDC, 125VDC, or 100/240VAC
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Extreme (optional)-40°C to 80°C
  4. Storage-40°C to 90°C
  5. Humidity95% non-condensing
Physical (1U Rackmount)
  1. Height(4.3 cm) 1.7"
  2. Width(48.3 cm) 19"
  3. Depth(26.7 cm) 10.5"
Channel Options
  1. 8 CH. Hoot-n-holler Bridge options:8 CH 4-wire Analog
*16 Channels can be supported by combining units within the JumboBank 1U chassis (TCRM19F-L).
* Contact factory for higher requirements
